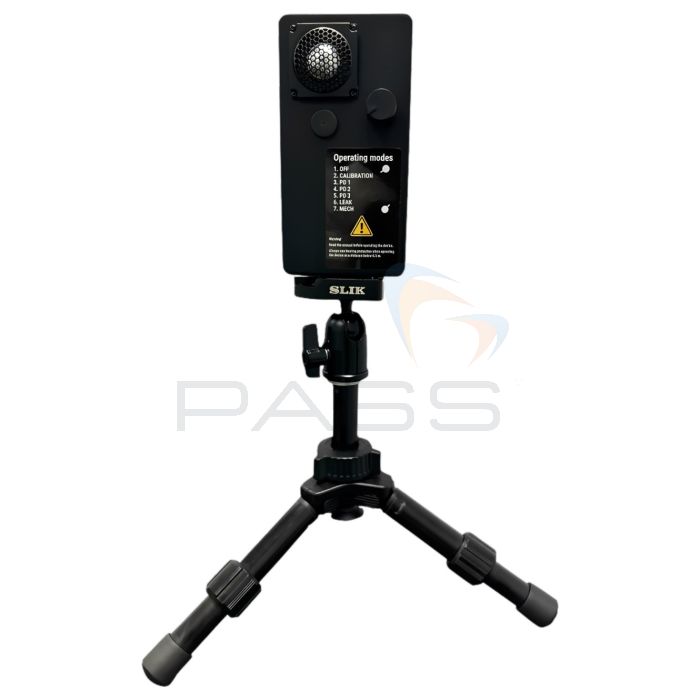

FLIR Acoustic Camera Tester with Table Tripod
- Generates a controlled sound signal
- Suitable for FLIR acoustic imaging cameras
SKU
T912406
MPN
T912406
The FLIR T912406 verifies the accuracy of FLIR acoustic imaging cameras. It generates a controlled sound signal for detection and analysis by the camera. The dB level of the signal provides a reference for confirming measurement levels and assessing the microphone array.
The acoustic camera tester includes predefined sound samples. These samples are compatible with the camera’s operating modes. This enables simulations of various partial discharges, gas leaks, and mechanical faults.
Technical Information
Specification
| Acoustic | |
|---|---|
| Frequency Range | 2 kHz to 90 kHz |
| Modes of Operation | Calibration - Test signal for checking the accuracy of the acoustic
cameras PD1 - Corona discharge sound PD2 - Floating discharge sound PD3 - Surface discharge sound Leak - Compressed gas leak sound Mech - Mechanical fault sound |
| Physical Data | |
| Power Input | Input voltage: 12 - 18 VDC Nominal input: 14.6 VDC, 2 A max |
| Weight | 273 g (0.6 lb) |
| Size (L x W x H) | 160 x 80 x 70 mm (6.3x 3.1 x 2.8 in) |
| Tripod Mounting | Quick-release mount |
| Environmental Data | |
| Operating Temperature | -10°C - +40°C (14°F - 104°F) |
| Humidity | Recommended 0-90% (Non-Condensing) |
| Protection Class | IP40 |
| Power Supply Data | |
| Input Voltage Range | 90 - 264 VAC |
| Input Current | 1.3 A max @ 100 - 240 VAC |
| AC Inlet | IEC 320 C8 AC Inlet |
| Output Voltage | 8 - 14.6 VDC |
| Output Current | 4.0 A max |
| Output Power | 58.4 W max |
| Operating Temperature | -20°C - +45°C (-4°F - 113°F) |
| Humidity | 10-90% r.H. |
| Power Supply Size | 96 x 46 x 33 mm (3.77 x 1.81 x 1.29 in) |
| Power Supply Weight | 250 g (0.55 lb) without input cable |
