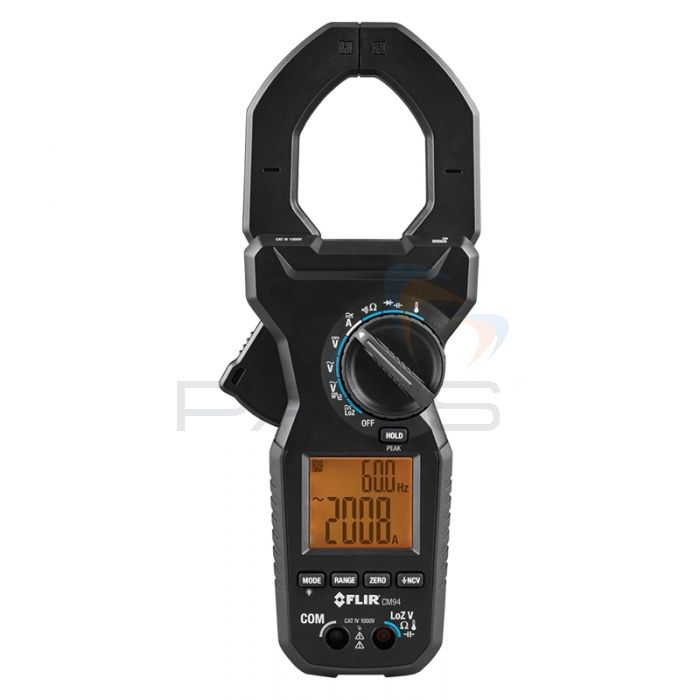

FLIR CM94 AC/DC True-RMS Utility Clamp Meter

The FLIR CM94 AC/DC True-RMS Utility Clamp Meter can be used to measure AC/DC current, AC/DC voltage, resistance, frequency and temperature. Its rugged and ergonomic design, as well as its extensive array of testing capabilities, makes it ideal for industrial electricians, utility workers and electrical contractors.

The FLIR CM94 AC/DC True-RMS Utility Clamp Meter is able to measure current up to 2000A AC/DC. It can perform true-RMS AC current and voltage measurements and is equipped with an LoZ (low-impedance) mode which prevents errors caused by residual ghost voltage. This instrument also includes a VFD mode for filtering signal noise ensuring that the FLIR CM94 AC/DC True-RMS Utility Clamp Meter can be used on large motors and motor controls. Additionally, the Continuity Test mode allows the user to troubleshoot connections and components.

This clamp meter is both manual- and auto-ranging, allowing the user to adapt the FLIR CM94 AC/DC True-RMS Utility Clamp Meter to the application. This instrument can be operated using one hand as all the measurement functions are accessible via the thumb-dial. Measurements are indicated on the large, backlit, 6000-count display.

The FLIR CM94 AC/DC True-RMS Utility Clamp Meter’s oversized, 55mm jaw ensures that it is able to accommodate conductor wires and busbars. Furthermore, the FLIR CM94 AC/DC True-RMS Utility Clamp Meter has a safety rating of CAT IV 1000V protecting it from dangerous transient overvoltage near utility service equipment.

The FLIR CM94 AC/DC True-RMS Utility Clamp Meter's ergonomic, rugged design, large jaw, eclectic measurement capabilities and safety rating makes it suitable for testing relays, distribution panels, switchgear, service conductors, feeders and production power lines.

FLIR CM94 AC/DC True-RMS Utility Clamp Meter Key Features

• Measure AC/DC current, AC/DC voltage, resistance, frequency and temperature
• Ideal for industrial electricians, utility workers and electrical contractors
• Measure current up to 2000A AC/DC
• True-RMS AC current and voltage measurements
• LoZ (low-impedance) mode: prevents errors caused by residual ghost voltage
• VFD mode: filters signal noise
• The VFD mode makes the CM94 suitable for checking large motors and motor controls
• Continuity Test mode: troubleshoot connections and components
• Manual- and auto-ranging
• Thumb-dial for easy, one-handed operation
• Large, backlit, 6000-count display
• Oversized, 55mm jaw
• Can accommodate wires and busbars
• Safety rating: CAT IV 1000V
• Protected from transient overvoltage near utility service equipment
• Ergonomic and rugged design, large jaw and eclectic measurement capabilities
• Suitable for testing relays, distribution panels, switchgear, service conductors, feeders and production power lines

What’s Included?

• FLIR CM94 AC/DC True-RMS Utility Clamp Meter
• Test Lead Set
• Quick Start Guide
• Manual
• Soft Carrying Pouch
• Banana Plug Type-K Thermocouple
