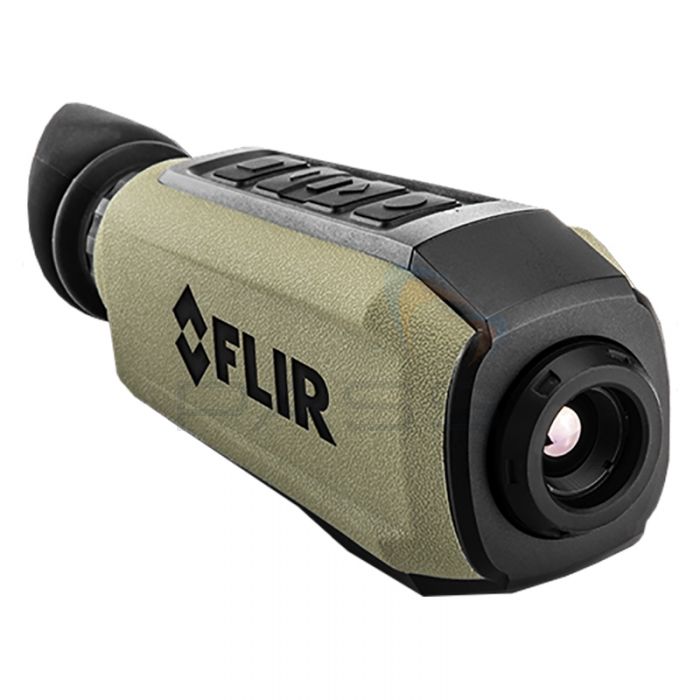

FLIR Scion OTM2/366 Outdoor Thermal Monoculars – 60Hz
The FLIR Scion OTM2/366 Outdoor Thermal Monoculars are equipped with a FLIR Boson core, 640 x 512-pixel detector, high-definition display and have a frame rate of 60Hz. They are suitable for capturing crisp, clear, continuous thermal footage and images in all light conditions from total darkness to glaring light to lingering haze.
These two FLIR Scion OTM2/366 Outdoor Thermal Monoculars differ only in regards to their lens sizes and fields-of-view; please see the table below for further details.
|Model Code||Model Name||Lens Size||Field of View|
|7TM-01-F230||FLIR Scion OTM266 Outdoor Thermal Monocular||18mm||24º x 18º|
|7TM-01-F240||FLIR Scion OTM366 Outdoor Thermal Monocular||25mm||18º x 13º|
Please note that FLIR Scion Outdoor Thermal Monoculars (60Hz) with 320 x 256-pixel detectors are available here.
These thermal optics also include a number of features and functions allowing the user to tailor the instrument to the application, environment or his/her preferences. For instance, the user is able to engage the Video Record function to capture 60Hz thermal footage; alternatively, he/she can use the Picture-in-Picture Zoom to view particular points on the image in greater detail without losing the overall field-of-view. Additionally, he/she may alter the thermal imaging palette; the user can select from the following six palettes:
- White Hot
- Black Hot
- Iron Bow
- Graded Fire
Furthermore, the FLIR Scion OTM2/366 Outdoor Thermal Monoculars include GPS functionality for geotagging thermal media. Thermal images and footage may be saved to the FLIR Scion OTM2/366 Outdoor Thermal Monoculars’ internal 2GB memories; it is possible to extend the cameras’ memory capacities via the addition of an OPTIONAL 128GB microSD card. Saved footage and images may be transferred to a compatible instrument (such as a PC, smartphone or tablet) via Wi-Fi or Bluetooth.
The FLIR Scion OTM2/366 Outdoor Thermal Monoculars’ memory, features and functions can be accessed and navigated using their simple controls and intuitive menus. This easy-to-navigate interface combined with the FLIR Scion OTM2/366 Outdoor Thermal Monoculars’ slender design means that these instruments can be operated using a single hand.
Finally, the FLIR Scion OTM2/366 Outdoor Thermal Monoculars’ feature a robust, IP67-rated housing that protects the optics’ internal components from any potential damage that may be caused by the environment or weather.
The robust, practical, simple-to-use design of the FLIR Scion OTM2/366 Outdoor Thermal Monoculars, coupled with their sophisticated imaging capabilities makes them ideal for hunting and tracking applications. They are able to provide the individual with a comprehensive and superior awareness of his/her surroundings regardless as to the light, environmental and weather conditions.
For further information regarding the FLIR Scion OTM2/366 Outdoor Thermal Monoculars, please see the following video.
FLIR Scion OTM2/366 Outdoor Thermal Monoculars Key Features
- FLIR Boson core
- 640 x 512-pixel detector
- HD display
- Frame rate: 60Hz
- Capture crisp, clear and continuous thermal footage and images in all light conditions
- Capable of 60Hz thermal imaging in complete darkness, glaring light and lingering haze
- Video record function
- Picture-in-Picture Zoom: view points-of-interest in greater detail without losing the overall FOV
- Six user-selectable thermal colour palettes: White Hot, Black Hot, Iron Bow, Rainbow, Graded Fire, and Lava
- GPS functionality for geotagging thermal media
- Internal 2GB memory
- Accommodates an OPTIONAL 128GN microSD memory card
- Send saved media to a compatible instrument via Bluetooth or Wi-Fi
- Simple controls
- Intuitive menus
- Slender design
- Single-hand operation
- Robust, IP67-rated housing protects the monocular from the elements and damage
- Ideal for hunting and tracking applications
- Provides the individual with a comprehensive and superior awareness of his/her surroundings in all light, weather and environmental conditions
- Your Choice of FLIR Scion OTM2/366 Outdoor Thermal Monocular – 60Hz
FLIR Scion OTM2/366 Outdoor Thermal Monoculars Technical Specifications
|Specifications||Scion OTM266||Scion OTM366|
|Core Technology||BOSON 12 µm VOx Microbolometer|
|Detector Resolution||640 x 512|
|Lens System||18 mm||25 mm|
|Field of View (H × W)||24° × 18°||18° × 13°|
|Digital Zoom||1X | 2X | 4X | 8X|
|Refresh Rate||60 Hz|
|Internal Memory||2 GB Internal Storage / Optional microSD™ Card (up to 128 GB)|
|Eye Relief||16 mm|
|Display||Quad-VGA (1280x960) FLCOS|
|Temperature Imaging Modes (Thermal Palettes)||White Hot; Black Hot; Iron Bow; Rainbow; Graded Fire; Lava|
|Viewing Modes||Scouting, Picture-in-Picture, Navigation|
|Picture While Recording (PWR)||Yes|
|Auto Power OFF||Yes|
|USB Type||USB-C; Power In; Video Out; Video and Image File Transfer|
|Battery Life||Up to 4.5 hours at 20°c|
|Battery Type||6x CR123A 3V Lithium Battery|
|NFC (Near-Field Communications||Yes|
|Size||227 × 76.8 × 60.5 mm (9.4 × 3 × 2.4 in)|
|Weight||With Batteries: 452 g; Without Batteries 572 g|
|Color (Housing)||Green / Black|
|Mounting||¼-20 Tripod Mount / Docking Station|
