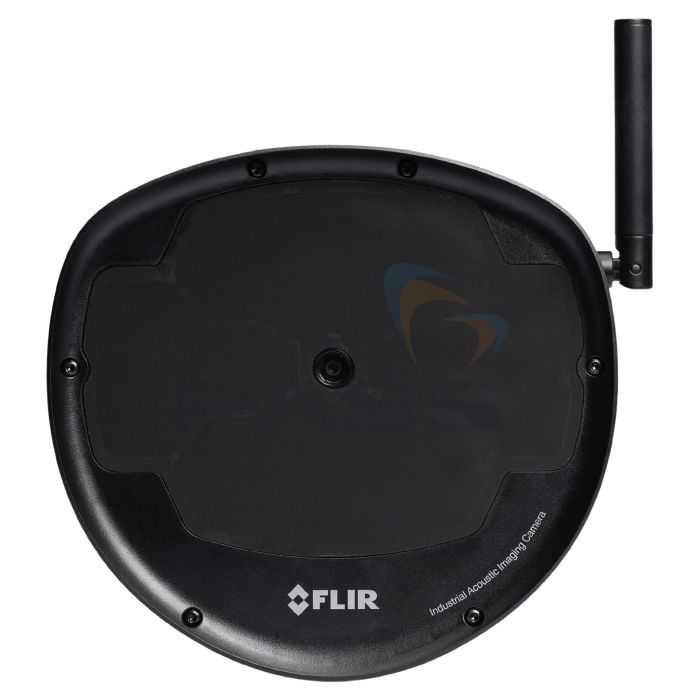

FLIR Si2a-PD Fixed-Mount Acoustic Imaging Camera
- Continuous 24/7 condition monitoring
- Partial discharge (PD), corona & arcing
- Inspection range of up to 200 m (656 ft)
SKU
T912770
MPN
T912770
The FLIR Si2a-PD Fixed-Mount Acoustic Imaging Camera provides continuous monitoring of electrical assets to detect partial discharge (PD), corona, arcing, and other faults at an early stage. It can detect and assess PD activity from up to 200 m (656 ft) away, helping keep personnel clear of hazardous areas. Featuring AI-enhanced analysis, an IP66-rated housing, VESA mounting compatibility, and system integration capabilities, it is suitable for switchgear, substations, and GIS applications.
Key Features
- Continuous 24/7 condition monitoring of electrical assets
- Detects partial discharge (PD), corona, arcing, and other electrical anomalies
- Detects, locates, classifies, and assesses PD faults
- Inspection range of up to 200 m (656 ft)
- Supports safer inspections by keeping personnel away from hazardous areas
- AI-enhanced detection and analysis for minimal operator intervention
- Converts complex acoustic signals into actionable insights
- IP66-rated for use in harsh industrial environments
- VESA mounting compatibility for flexible fixed installations
- Suitable for switchgear, substations, and gas-insulated switchgear (GIS)
- Enterprise-ready system integration and data management capabilities
- Helps prevent unplanned outages, incidents, and costly downtime
What's Included?
- Camera
- Wi-Fi Antenna (Included with models that support Wi-Fi)
- Printed documentation, including the username and password for logging in to the web interface of the camera
- License card: FLIR Si-series Plugin for FLIR Thermal Studio, Perpetual license
£22,700.00
£27,240.00 inc vat
Only 1 in Stock:
Available Next Working Day*
60 Day Returns
Technical Information
Specification
| Acoustic | |
|---|---|
| Acoustic Measurements | 124 low-noise MEMS microphones, real-time sound visualisation |
| Detection Threshold | 20 kHz: -19.5 dB 35 kHz: -11.2 dB 50 kHz: -9.8 dB 80 kHz: 12.2 dB 100 kHz: 22.8 dB |
| Bandwidth | 2-130 kHz |
| Directional Resolution | From 1° up to 0.125° |
| Operating Distance | From 0.3 m (1.0 ft) up to 200 m (656 ft) |
| PD Type Recognition | Surface or Internal Discharge, Positive and Negative Corona, Negative Corona, Floating Discharge |
| PRPD Pattern Recognition | Automatic |
| Severity Assessment | Automatic AI-based severity assessment including recommended actions |
| Imaging and Optical | |
| Digital Camera | 12 MP Colour |
| Camera Field of View | 75° diagonal |
| Video Frame Rate | Streaming: 15 fps Snapshots: 30 fps |
| Video Image Resolution | 960 x 540 streaming |
| Aspect Ratio | 16:9 |
| Communication and Connectivity | |
| Network Interfaces | M12 x-code 8-pin Ethernet, PoE IEEE 802.3at |
| Wireless Connectivity | Wi-Fi 2.4 GHz / 5 GHz, IEEE 802.11 b/g/n/ac |
| Supported Protocols | TCP/IP, RTSP MQTT, SMTP, FTP |
| Data Transfer | Video streaming bandwidth: 7.5 Mbps (typical) |
| Firmware Updates | Via the configurator tool web interface |
| Digital I/O | 2-pin output / 2-pin input |
| Current Loop Output | 4-20 mA, 8 discrete levels (2 mA resolution) |
| System Integration and Event Handling | |
| API | HTTP, REST (documentation in the acoustic configurator tool) |
| Event Triggering | PD Severity / PD Type / dB SPL Threshold |
| Data Formats | |
| Export File | .nlz (compatible with Flir Thermal Studio) |
| Data Messages | .json |
| Analysis and Reporting | |
| Offline | Flir Thermal Studio (desktop software) |
| Web Interface | Acoustic configurator tool |
| Power | |
| Primary Power Source | PoE+ Type 2 (30 W) |
| Power Consumption | 18 W typical, 25.5 W maximum |
| DC Voltage Range | 42.5-57 V DC |
| Environmental Data | |
| Operating Temperature Range | -20°C to 50°C (-4°F to 122°F) |
| Storage Temperature Range | -20°C to 50°C ( -4°F to 122°F) |
| Relative Humidity | 0-90% recommended |
| EMC | FCC CFR 47 Part 15 Subpart B Class B, FCC CFR 47 Part 15 Subpart C/E, FCC Rule §15.207, §15.247(d), §15.407(b) EN 55032, EN 55035, EN 301 489-1/-17, EN 300 328, EN 301 893 |
| Ingress Protection | IP66 |
| Safety | IEC 62368-1 |
| Physical Data | |
| Camera Size | 182 x 171 x 79 mm (7.2 x 6.8 x 3.1 in) |
| Camera Weight | ~ 1.4 kg (3.1 lb) |
| Mounting Dimensions | VESA mount: 100 x 100 4 x M4, thread 10 mm |
Document Downloads
FLIR Si2a-PD Fixed Acoustic Camera Datasheet
FLIR Si2a-PD Fixed Acoustic Camera Value Sheet
FLIR Si2a-PD Fixed Acoustic Camera FAQ Sheet
