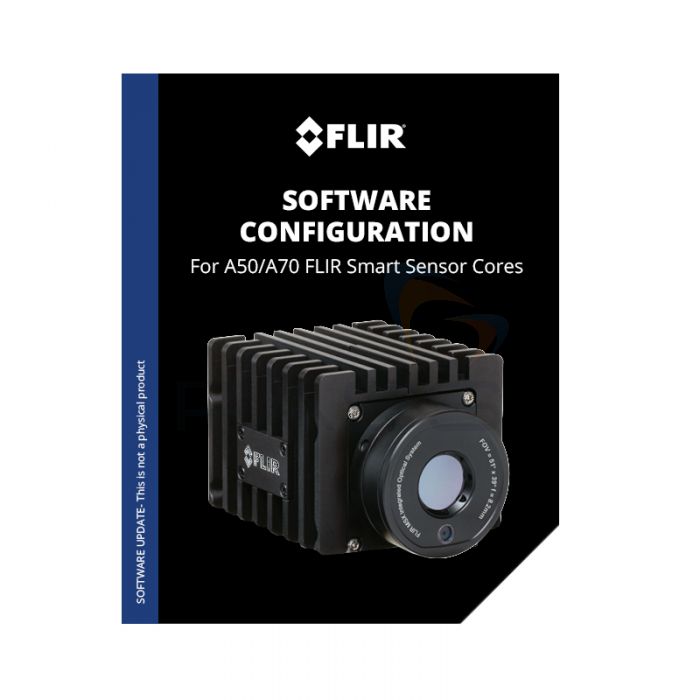

FLIR Smart Sensor Configuration for A50/A70 Cores
FLIR’s Smart Sensor Configuration is ideal for condition monitoring and early fire detection. It includes built-in analytics and alarms, supports easy HMI and SCADA integration using common industrial protocols and alarm I/O, and OPTIONAL simultaneous VMS video and alarm integration via ONVIF S. The FLIR Smart Sensor Configuration MUST be used with either a FLIR A50 or A70 Thermal Camera Core (sold separately).
When used with one of these cameras as part of a Cloud or Internet of Things (IIoT) solution, the FLIR Smart Sensor Configuration offers a method of protecting assets, improving safety, maximising uptime, and minimising maintenance costs.
FLIR Smart Sensor Configuration Key Features
- Must be used with either a FLIR A50 or A70 Thermal Camera Core (sold separately)
- Ideal for condition monitoring and early fire detection applications
- Easy HMI and SCADA integration using common industrial protocols and alarm I/O
- OPTIONAL simultaneous VMS video and alarm integration via ONVIF S
- Use as a system component in cloud and IIoT solutions
- Protect assets, improve safety, maximise uptime, and minimise maintenance costs
What’s Included?
- FLIR Smart Sensor Configuration
Please note that the Smart Sensor Configuration is a programming option. It is incorporated into the camera core at the point of manufacture. Therefore it MUST be purchased with a FLIR A50 or A70 Thermal Camera Core (sold separately).
FLIR Smart Sensor Configuration for A50/A70 Cores Technical Specifications
| Image & Optical Data | Standard Configuration | Advanced Configuration |
| IR resolution | 464 × 348 (A50), 640 × 480 (A70) | |
| Visual Resolution | 1280 × 960 pixels (optional) | |
| Thermal Resolution | A70: 29°: <45 mK, 51°: <45 mK, 95°: <60 mK | |
| A50: 29°: <35 mK, 51°: <35 mK, 95°: <45 mK | ||
| Focus | Fixed, adjustable with included focus tool | |
| Spatial Resolution (IFOV) |
A50: 29°: 1.2 mrad/pixel, 51°: 2.1 mrad/pixel, 95°: 4.0 mrad/pixel | |
| A70: 29°: 0.84 mrad/pixel, 51°: 1.5 mrad/pixel, 95°: 2.9 mrad/pixel | ||
| FOV Options | 29°, 51°, 95° | |
| Detector Pitch | A50: 17 µm, A70: 12 µm | |
| Spectral Range | 7.5–14.0 µm | |
| Frame Rate | 30 Hz | |
| Measurement | ||
| Object temperature range |
-20°C to 175°C (-4°F to 347°F) 175°C to 1000°C (347°F to 1832°F) |
20°C to 175°C (-4°F to 347°F) -20°C to 250°C (-4°F to 482°F) 175°C to 1000°C (347°F to 1832°F) |
| Accuracy | ±2°C (±3.6°F) or ±2% of reading, for ambient temperature 15°C to 35°C (59°F to 95°F) and object temperature above 0°C (32°F) | |
| Measurement Analysis | ||
| Standard Functions | 10 Spotmeters, 10 Boxes, 3 Deltas (difference any value/ reference/external lock), 1 Isotherm (above/below/interval), 1 Iso-coverage, 1 Reference temperature |
10 Spotmeters, 10 Boxes or Polygons, 3 Deltas (difference any value/reference/external lock), 2 Isotherm (above/below/ interval), 2 Iso-coverage, 2 Lines, 1 Polyline, 1 Reference temperature |
| Automatic Hot/Cold Detection |
Standard Configuration | |
| Measurement Frequency | Up to 10 Hz | |
| Measurement Result Read-out |
Ethernet/IP (poll), Modbus TCP server (pull), MQTT (push), REST API (read/write), Measurements and Still image (radiometric JPEG, visual 640 × 480, visual 1280 × 960), Web interface |
Ethernet/IP (poll), Modbus TCP server/client (poll/push), MQTT (push), REST API (read/write), Measurements and Still image (radiometric JPEG, visual 640 × 480, visual 1280 × 960), Web interface |
| Alarm | ||
| Alarm Function | On any selected measurement function, digital in, and internal camera temperature |
|
| Alarm Output | Digital out, e-mail (SMTP) (push), Ethernet/IP (pull), file transfer (FTP) (push), Modbus TCP server (poll), MQTT (push), RESTful API (pull), and store image or video |
Digital out, e-mail (SMTP) (push), Ethernet/IP (pull), file transfer (FTP) (push), Modbus TCP server/ client (poll/push), MQTT (push), RESTful API (pull), and store image or video |
| Wi-Fi | ||
| Connector Type | RP-SMA, female connector | |
| Video Streaming, RTSP Protocol | ||
| Unicast | Yes | |
| Multicast | Yes | |
| Radiometric RTSP | No | Compressed JPEG-LS (FLIR Radiometric) |
| Multiple Image Streams | Yes, visual camera option needed (P/N T300295) | |
| Video Stream 0 | ||
| Streaming Resolution | 640 × 480 pixels | |
| Source | Visual / IR / MSX® / FSX® (visual camera is optional) | |
| Contrast Enhancement | FSX® / Histogram equalization (IR only) | |
| Overlay | With/Without | |
| Encoding | H.264, MPEG4, or MJPEG | |
| Video Stream 1 | ||
| Streaming Resolution | 1280 × 960 pixels | |
| Source | Visual (visual camera is optional) | |
| Overlay | No | |
| Encoding | H.264, MPEG4, or MJPEG | |
| Ethernet | ||
| Interface | Wired, Wi-Fi (optional) | |
| Connector Types | M12 8-pin X-coded, female; RP-SMA, female | |
| Ethernet Type & Standard | 1000 Mbps, IEEE 802.3 | |
| Ethernet Power | Power over Ethernet, PoE IEEE 802.3af class 3 | |
| Ethernet Protocols | Ethernet/IP, IEEE 1588, Modbus TCP, MQTT, SNMP, TCP, UDP, SNTP, RTSP, RTP, HTTP, HTTPS, ICMP, IGMP, sftp (server), FTP (client), SMTP, DHCP, and MDNS (Bonjour), uPnP |
|
| Digital Input/Output | ||
| Connector Type | M12 Male 12-pin A-coded (shared with external power) | |
| Digital Input | 2× opto-isolated, Vin (low) = 0 to 1.5 V, Vin (high) = 3 to 25 V | |
| Digital Output | 3× opto-isolated, 0 to 48 V DC, max. 350 mA (derated to 200 mA at 60°C). Solid-state opto relay, 1× dedicated as fault output (NC) |
|
| Power | ||
| Power Consumption | 7.5 W at 24 V DC typical, 7.8 W at 48 V DC typical, 8.1 W at 48 V PoE typical |
|
| External Power Operation | 24/48 V DC 8 W max | |
| External Voltage | Allowed range 18 V to 56 V DC | |
| Power Connection | M12 12-pin A-coded, male (shared with Digital I/O) | |
