Note:
- Only firmware versions later than 2.x.x support the use of this lens extender
- To achieve a high measurement accuracy, the external optics transmission will need to be entered into the camera firmware
- This product only applies to the 14.5° lens
- The 14.5° lens is not included

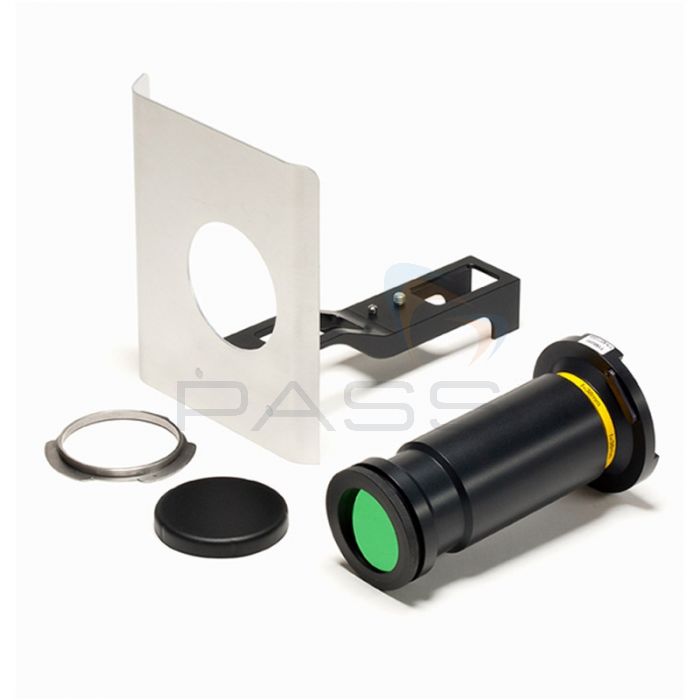

Improve the viewing angle of you FLIR GF309 IR Furnace camera with the FLIR lens extender, designed to create a better viewing angle when measuring the temperatures of furnace tubes through viewports.
The heat shield deflects heat away from the user making it more comfortable and safer to use high-temperature conditions.
Imaging and optical data | |
Field of view (FOV) | 14.5° × 10.9° |
Minimum focus distance | 1.2 m (3.94 ft.) |
Focal length | 38 mm (1.50 in.) |
F-number | 1.5 |
Lens note | For spectral range 3.8–4.05 µm |
Weight | 0.51 kg (1.12 lb.) incl. lens caps, excl. cameraside bayonet mount |
Size (L × D) | 164.3 × 84 mm (6.5 × 3.3 in.), excl. lens caps |
What's Included?
- Furnace lens extender with bayonet mount
- Bayonet mount (camera-side)
- Heat shield
- Heat shield support
- Instruction
- Lens cap, 2 each
- Transport case
0 Reviews
Overall Rating
Additional Information
SKU | T198361 |
---|---|
Manufacturer Part Code | T198361 |
