Fluke iSee Mobile ii01 Acoustic Camera for Android
- Resolution: 2 MP
- 3 x digital zoom
- Blended visual and SoundMap JPG/MP4
SKU
FLUKE-II01
MPN
6163245
The Fluke iSee Mobile ii01 connects to an Android smartphone or tablet to provide a portable solution for detecting compressed air and gas leaks. Equipped with 16 MEMS microphones, Fluke SoundMap technology and a 2 kHz to 48 kHz frequency range, it provides acoustic imaging and real-time dB measurements, with a dedicated leak mode for identifying potential leaks and checking airtightness.
Please note the phone pictured is not included with the Fluke iSee ii01 Acoustic Camera for Android.
Key Features
- Resolution: 2 MP
- 3 x digital zoom
- Nominal Frame Rate: 20 FPS
- Blended visual and SoundMap JPG/MP4
- 16 high-precision MEMS microphones deliver clear acoustic images and rapid sound source localisation
- Fluke SoundMap™ technology visually overlays acoustic information to help identify leak locations faster
- 2 kHz to 48 kHz frequency range supports common industrial applications including compressed air and gas leak detection and airtightness inspections
- Detection range from 0.5 m to more than 20 m enables inspections from both close-up and safe working distances
- 50° × 38° field of view provides broad area coverage for faster surveys and inspections
- Leak Mode optimises performance for compressed air and gas leak detection with a dedicated frequency band and one-touch activation
- Plug directly into your smartphone with a USB-C connection for instant acoustic inspections with no complex setup or cables required
- Compact and lightweight design weighs just 50 g, making it easy to carry and use throughout the workday
- Simple, intuitive operation lets users get started quickly with a streamlined interface and minimal training
- Capture and share results instantly using your mobile device for faster communication and decision-making
- Store images and videos directly on your phone, including recordings up to 5 minutes long, for easy documentation and archiving

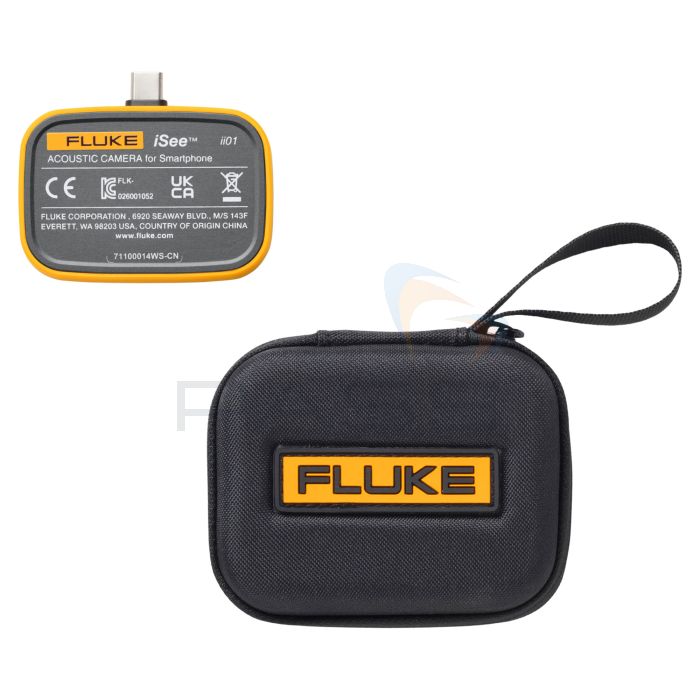

What's Included?
- Fluke ii01 Acoustic Camera for Android
- Packaging box
- Quick Reference Guide
- Soft protective bag
Technical Information
Specification
| Sensors | |
|---|---|
| MEM (Microphones) | 16 |
| Frequency Band | 2 kHz to 48 kHz |
| Detection range1 | 0.5 to > 20 meters (1.6 to > 65 feet) |
| Field of View (FOV) (Typical) | 50°x 38° |
| Nominal Frame Rate | 20 FPS |
| Built-in Digital Camera (Visible Light) | |
| Field of View (FOV) (Typical) | 50°x 38° |
| Focus | 50 cm to infinity |
| Zoom | 3 x digital zoom |
| Resolution | 2 MP |
| Image Storage | |
| Image Format | Blended visual and SoundMap JPG |
| Video Format | Blended visual and SoundMap .MP4 |
| Video Length | Up to 5 minutes |
| Acoustic | |
| Auto Max/Min dB Gain | Auto |
| Frequency Band Selection | Quick Leak Mode On/Off |
| Capture Mode | |
| Photo Mode | Yes |
| Video Mode | Yes |
| Leak Mode | 37.5 kHz - 42.6 kHz |
| Battery | |
| Battery | Powered by smartphone |
| Software | |
| Acoustics: Show dB Scale | On/Off |
| Acoustics: Min/Max dB | Max dB/Auto |
| Palette: Colours | 3: Grayscale, Ironbow, and Blue-Red |
| Palette: Overlay Transparency | Yes: 1-100 % |
| Trend Graphs | Frequency and dB scale |
| General Specification | |
| USB | USB Type-C Plug Interface |
| Operating Temperature | 0 °C to +40 °C (32 °F to 104 °F) |
| Storage Temperature | -30 °C to +60 °C (-22 °F to 140 °F) |
| Operating Altitude | Up to 2000 m |
| Storage Altitude | Up to 12000 m |
| Relative Humidity | 10% to 90% RH, non-condensing |
| Size (H x W x L) | 61 x 50 x 12 mm (2.40 x 1.97 x 0.47 inches) |
| Weight (Battery Included) | 50 g (1.76 oz) |
| Ingress Protection (IP) | IP54 |
| Fluke Warranty | 2 year |
| Supported Languages (iSee mobile app) | English, Dutch, Simplified Chinese, Traditional Chinese, French, German, Spanish, Italian, Portuguese, Japanese, Korean, Turkish, Czech, Finnish, Hungarian, Polish, Swedish |
| OS Supported | Android 6.0/ HarmonyOS 2.0 and above |
| Safety and Environmental | |
| RoHS Compliant | Yes |
| Electromagnetic Compatibility (EMC) International | IEC 61326-1: Portable Electromagnetic Environment, CISPR 11: Group 1, Class A2 |
| Korea (KCC) | Class A3 Equipment (Industrial Broadcasting & Communication Equipment) |
| USA (FCC) | 47 CFR 15 subpart B. This product is considered an exempt device per clause 15.103 |
| 1. Depending on ambient conditions 2. Equipment is suitable for use in all establishments other than domestic and those directly connected to a low-voltage power supply network that supplies buildings used for domestic purposes. There may be potential difficulties in ensuring electromagnetic compatibility in other environments due to conducted and radiated disturbances. Caution: This equipment is not intended for use in residential environments and may not provide adequate protection to radio reception in such environments. 3. The device meets requirements for industrial electromagnetic wave equipment, and the seller or user should take notice of it. This equipment is intended for use in business environments and is not to be used in homes. |
|
