FOTRIC TD2e Kit, Acoustic Camera with 64 Digital MEMS Microphones
- Detection distance: 0.3~60m
- Peak Mode
- Noise Suppression feature
SKU
FOT-A262382-B001
MPN
A262382-B001

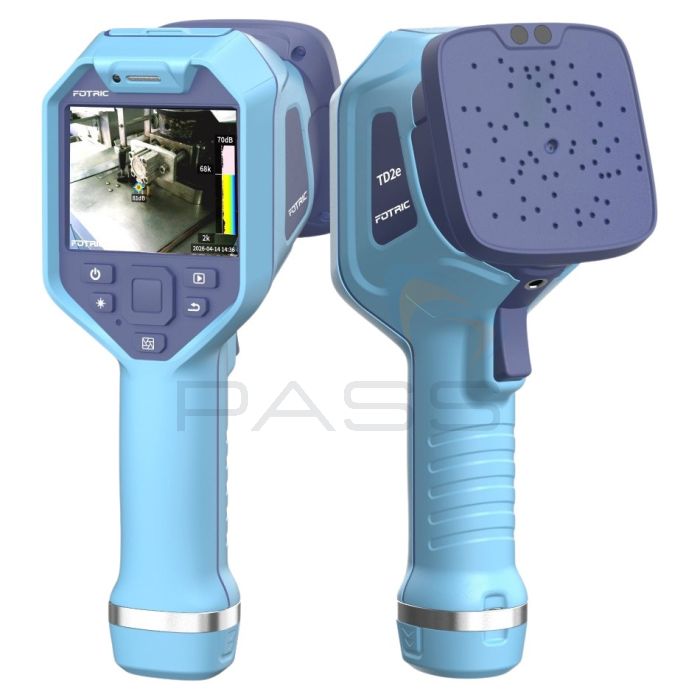

The FOTRIC TD2e Acoustic Imaging Camera is a portable ultrasonic detection tool for identifying air and gas leaks, electrical faults, and mechanical irregularities in industrial systems.
It features a 64-element MEMS microphone array operating across 2–100 kHz, allowing detection of both audible and ultrasonic emissions with precise positioning up to 60 metres. Detected sources are visualised as an acoustic overlay on a 5 MP image with a 58° × 45° field of view.
The system includes Noise Suppression to minimise ambient interference and Peak Mode for targeting specific frequency ranges when locating multiple faults. A 1-second startup enables immediate use on-site.
Built to IP54 standards, the device supports continuous inspections with interchangeable batteries delivering over 3 hours per charge. The supplied kit includes two batteries and carrying accessories for field operation.
Key Features
- High-density microphone array with 64 MEMS digital microphones
- Industrial digital camera: 5 MP, 58° x 45° field of view
- ≥ 3 hours of single-battery runtime, removable
- Device rated IP54
- Detection distance: 0.3~60m
- Array of 64 digital MEMS microphones for superior accuracy
- New Noise Suppression feature for filtering background noise
- Peak Mode to isolate frequencies and detect multiple leaks
- 1-second instant startup (Instant Operation)
- Optimised design for rapid compressed air and gas inspections
- Extended autonomy thanks to the two batteries included in the kit
- Complete set of accessories for transport and intensive field use
What's Included?
- FOTRIC TD2e acoustic camera
- Hard carrying case
- Soft bag
- 2x Rechargeable batteries
- Charging Dock
- Belt clip
- USB-C cable
- SD card 32GB
- Quick start guide
£849.00
£1,018.80 inc vat
Stock Due:
Typically 1-6 Days
60 Day Returns
Technical Information
Specification
| Microphone Channels | 64 MEMS Digital Microphone |
|---|---|
| Acoustic Image Field of View (FOV) | 58° * 45° |
| Sound Pressure Sensitivity | 0.01L/min@0.1MPa, 1.5m, φ30μm orifice 0.025L/min@0.3MPa, 3.5m, φ30μm orifice 0.045L/min@0.3MPa, 4.5m, φ40μm orifice |
| Sound Sampling Rate | 200kHz |
| Image Mode | Single-source, Multi-source, All-source |
| Working Distance | 0.3~60m |
| Positioning Frequency Range | 2k-100kHz |
| Frequency Range Selection | Supports manual adjustment of the frequency range Supports displaying the peak frequency |
| Display Screen | 3.5-inch, 640*480 pixels, IPS LCD touchscreen with explosion-proof cover glass |
| Noise Reduction Mode | Filters out low-level sounds to reduce environmental interference |
| Micro Detection Mode | Captures faint sounds to avoid missing potential issues |
| Digital Camera | 5MP industrial-grade digital camera |
| Image Format | jpg (acoustic image) |
| USB Interface | USB Type-C, compliant with the USB 3.0/2.0 standard |
| LED Illumination Lamp | Support flashlight illumination and flash mode |
| Battery Type | 3.6V, 5000mAh Rechargeable Lithium Battery, Field-Replaceable |
| Battery Operating Time | ≥ 3 hours per battery |
| Protection Rating | IP54(GB/T 4208/IEC 60529) |
| Drop Resistance | Designed for a 2-metre drop resistance |
| Shock Resistance | 25g(GB/T 2423.5/IEC 60068-2-27) |
| Vibration Resistance | 2g(GB/T 2423.10/IEC 60068-2-6) |
| Supported Languages | English, German, French, Spanish, Portuguese, Italian, Polish, Japanese, Korean, Traditional Chinese, Thai |
