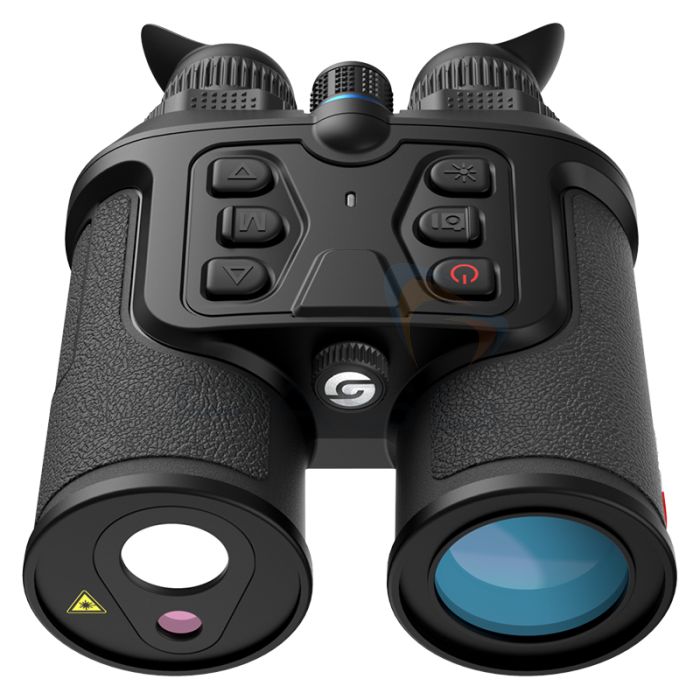

Guide DN30 Handheld Digital Binoculars - 3840 x 2160, 2μm (50Hz)
- HD full-colour display at any time
- Effortless Evidence Collection
- 600m detection range
SKU
GU-DN30
MPN
DN30
Experience 4K ultra-high-definition visuals with the Guide DN30. Its 3840 x 2160@2μm moonlight low-light CMOS sensor and 1920 x 1080 AMOLED display create stunning images day and night.
The binoculars are easy to grip and have an adjustable pupil distance range allowing for a fully comfortable viewing experience for the user.
Key Features
- 4K UHD Clarity: 3840x2160@2μm CMOS sensor + 1920x1080 AMOLED display.
- Day/Night Versatility: Day/Low-light/Night image modes, HD full-colour display at any time.
- Effortless Evidence Collection: Easily capture photos and record videos with one click.
- Laser Range: Pinpoint target locations with accuracy, up to 600m or 1000m
- WIFI: The connected app via WIFI for remote control, live image, and video transmission.
- OTA Upgrade: Support device firmware updates by connecting the TargetIR APP.
- Ergonomic Design: Binocular design with adjustable 60mm-70mm pupil distance.
- Extended Endurance: Enjoy up to 6 hours of continuous outdoor use.
Applications
- Law Enforcement
- Border Patrol
- Hunting
- Outdoor Activity
What's Included?
- DN30 Handheld Digital Binoculars
- Lens cap
- Shoulder strap
- 2 Detachable eye masks
- Carry bag
- 5V2A adapter (UK, US, AU, and EU)
- 2 Replaceable 18650 batteries
- Battery charger
- USB Type-C cable
- Micro HDMI cable
- Quick start guide
£799.00
£958.80 inc vat
Only 1 in Stock:
Available Next Working Day*
Technical Information
Specification
| DN30 | |
|---|---|
| Sensor | |
| Sensor Type | CMOS |
| Resolution | 3840 x 2160@2μm |
| Minimum Illuminance | 0.001 lux |
| Frame Rate | 50Hz |
| Lens | |
| Focal Length | 35mm F1 |
| Field of View | 12.57° x 7.12° |
| Optical Zoom | 1.96x |
| Digital Zoom | 1x to 8x |
| Focus | Manual |
| Display | |
| Display Type | 0.39' AMOLED x 2 |
| Resolution | 1920 x 1080@4.5um, FHD |
| Eyepiece | Binoculars, 20 mm ≥ exit pupil distance ≥ 15 mm, diopter adjustment: -4 to +2 |
| Video Output | Digital video |
| Power | |
| Battery Type | 2 replaceable 18650 batteries |
| Battery Life | 6 hours |
| Interface | |
| USB | USB Type-C |
| Video Interface | Micro HDMI |
| Mechanical Interface | UNC ¼"-20 (Tripod mounting, L-bracket is required), Mechanical expansion interface |
| Functions | |
| Scene Modes | Day, Night, and Low-light Modes |
| Recording Function | Photo/Video |
| IR Illuminator | 940 nm |
| WiFi | Transmission of real-time video via WIFI for remote control in the 2.4G frequency band and within 15 metres |
| Laser | Laser rangefinder (up to 600m or 1000m)/td> |
| Detection Range | 600m |
| Other | GPS, Compass, Gyroscope, Bluetooth |
| Environmental | |
| Operating temperature | -30 °C to 50 °C |
| Storage temperature | -45 °C to 60 °C |
| Humidity | 10 % to 95 % non-condensing |
| Encapsulation | IP67 |
| Certification | CE, FCC, EAC, RoHS |
| System | |
| Language Settings | English, Russian, German, French |
| Memory Capacity | 32 GB |
| Physical | |
| Weight | ≤940 g (without eye mask and battery) |
| Size | ≤162 x 146 x 70 mm (without eye mask) |
