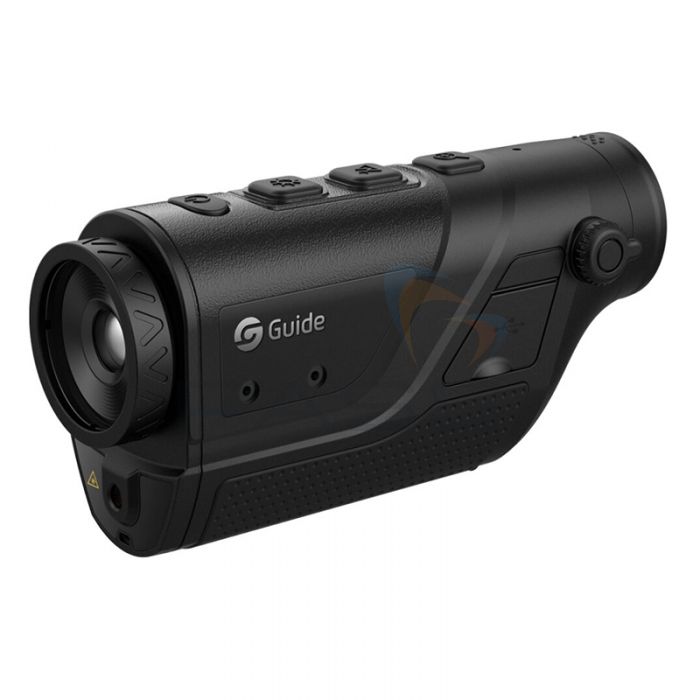

Guide TD210 Compact Thermal Imaging Monocular

SKU
GUI-TD210
Rating:
0%
(0)
Reward Points (?)

Logged in, worth £4.99, read more.

:
499
£599.95 £499.96
3 in Stock Free UK Delivery* Delivery Options

UK - Mainland

England, Wales and most of Scotland.

Standard Delivery - Typically Next Working Day
If items in stock1

FREE Over £249
£3.99 Under £249

Guaranteed Next Working Day Delivery

£7.99

Guaranteed Next Working Day Delivery: Pre-Noon

£14.99

Weekend Delivery: Pre-Noon

£14.99

UK - Highlands & Islands

Includes Northern Ireland (excludes Gibraltar).

Standard Delivery - Typically 2-3 Working Day
If items in stock1

£9.99

International

Calculated at checkout.


Note: Time frames based on orders placed weekdays before 3:00pm. Prices Ex VAT.

1 See delivery page for more details.

Advice & Support
Price Match Request

Dual-Use Item: Export authorisation is required to temporarily or permanently move this item outside of the UK (Council Regulation (EC) No.428/2009)

Designed for night-time outdoor and law enforcement applications, the Guide TD210 Compact Thermal Imaging Monocular is a small, sensitive, simple-to-use thermal imager ideal for medium- and short-distance observation. It features a high-sensitivity VOX infrared detector, 256x192px IR resolution, 10mm/F1.0 focal length, electric focusing, and a 1x-2x digital zoom. In addition to this, the Guide TD210 Compact Thermal Imaging Monocular offers a Picture-in-Picture mode, six selectable thermal colour palettes, three observation modes, a 200m laser indicator, and built-in Wi-Fi. Imaging is viewable via the 1280 x 960px high-resolution LCOS display. Delivering an operating time of eight hours, the Guide TD210 Compact Thermal Imaging Monocular is ideal for prolonged outdoor applications. It is housed in an IP66-rated casing and will remain operable in temperatures ranging from -30°C to +50°C.

Guide TD210 Compact Thermal Imaging Monocular Key Features

  • A lightweight, handheld thermal imager ideal for medium- and short-distance observation
  • High sensitivity Vox infrared detector
  • IR resolution: 256x192px
  • 10mm/F1.0 focal length
  • Electric focusing
  • 1280 x 960px high-resolution LCOS display
  • Vivid colour rendering improves comfort
  • 6 selectable thermal colour palettes
  • 1-button switch identifies the location of the target instantly
  • 3 observation modes: Natural, Enhance, and Highlight
  • Digital zoom: 1x-2x
  • Picture-in-Picture mode
  • 200m laser indicator
  • Built-in Wi-Fi
  • Wirelessly stream footage to a smartphone or tablet with Guide’s app installed
  • Supports single-handed operation
  • Quiet focus
  • IP66-rated casing
  • Operating temperature range: -30°C to +50°C
  • 8 hours of operating time
  • 2-second start-up
  • A small, sensitive, simple-to-use thermal imager for outdoor applications

What’s Included?

  • Guide TD210 Compact Thermal Imaging Monocular
  • Type-C to USB
  • Analogue Video Cable
  • 18650 Battery
  • Charger
  • Lens Cover
  • Wrist Strap
  • Bag
  • Quick Start Guide

Guide TD210 Compact Thermal Imaging Monocular Technical Specifications

Detector
Detector Type 256×192@12μm, VOx
Spectral 8μm~14μm
NETD ≤50mk
Lens
Focal Length 10mm/F1.0
FOV 17.5°×13.1°
Focusing Electric Focusing
Display
Screen Full-Color LCOS Screen,1280×960
Eyepiece Exit pupil distance 17 mm, Adjustable diopter -4~+2
Magnification 1.8X~3.6X
Imaging
Frame Rate 25Hz
Digital Zoom 1X~2X
Colour Palettes White Hot, Black Hot, Red hot, Blue Hot, Red Hot
Scenes Modes Enhanced, Highlight, Natural
Picture-in-picture Picture-in-picture enlarged image is displayed on the upper left, upper middle or upper right
Functions
Hotspot Tracking
Laser Rangefinder Red Yellow Green
WIFI/APP Connect App (IOS & Android) via WIFI to realize remote control, live image and video transmission
Compensation Modes Shutter Compensation
Power Supply
Battery Type Removable Standard 18650 Li-ion battery x1
Working Time ≥8h
Interface
USB/Video Output TYPE C(USB 2.0 Standard)Interface for charging, data transmission and simulation video output
Laser Indicator Yes, Distance within 200m
Tripod Interface Inch 1/4-20
Others Picatinny Interface/ Bluetooth/ WIFI
Environmental Characteristics
Operating Temperature -10°C~50°C
Storage Temperature -30°C~60°C
Encapsulation IP66,1-meter drop test
Certificate UN38.3 (Battery certificate), RoHS, CE, FCC, EAC
Weight & Dimensions
Weight 360g
Dimensions 143mm×45mm×73mm
