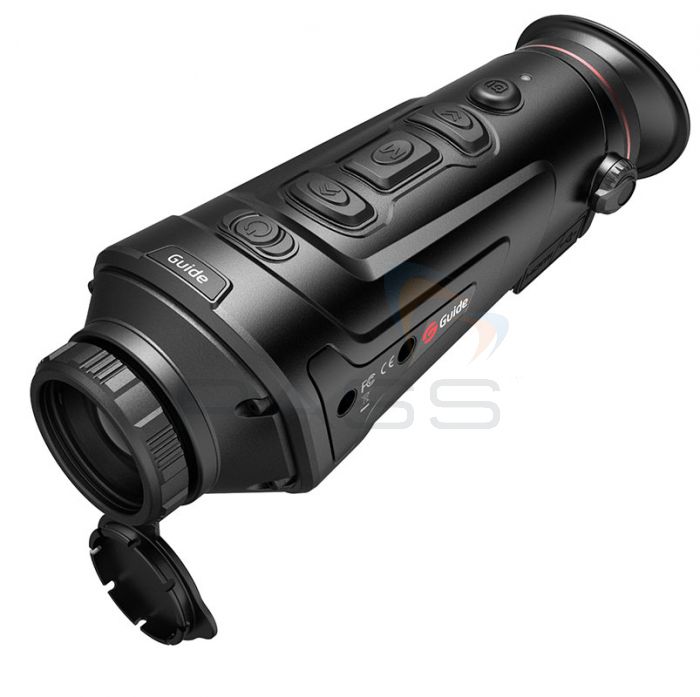

Designed for professional hunters, the Guide TrackIR Handheld Thermal Monocular features a 400 x 300px (at 17µm) thermal detector and a fast frame rate of 50Hz. It provides fluid, sharp thermal imaging in a range of challenging conditions and at significant distances. Please see the video below for a brief overview of the Guide TrackIR Handheld Thermal Monocular.

There are three versions of the Guide TrackIR Handheld Thermal Monocular available which vary in regards to their detection distances and fields-of-view; please see the table below for further information.

SKU Title Detection Range  Field of View (FOV)
GUI-TRACKIR-25 Guide TrackIR 25 - 700-1700m Detection Range 700-1700m 15.4°×11.6°
GUI-TRACKIR-35 Guide TrackIR 35 - 1000-2400m Detection Range 1000-2400m 11.1°×8.3°
GUI-TRACKIR-50 Guide TrackIR 50 - 1400-3000m Detection Range 1400-3000m 7.8°×5.8°

Thermal Imaging

The Guide TrackIR Handheld Thermal Monocular includes a range of thermal imaging functions intended for tailoring the thermal camera to the application, conditions or environment:

  • Smooth Zoom (1-4x): offers flexibility allowing the hunter to pinpoint wildlife quickly
  • Stadiametric Rangefinder: measures and displays the distance to targets with a known height in real-time, e.g., rabbits (35cm), boar (90cm), and deer (150cm)
  • Picture-in-Picture Function: enlarge a specific area of the image without compromising the overall field of view
  • Selectable Colour Palettes: White Hot, Black Hot, Iron Red, Blue Hot and Red Hot
  • Multiple Scene Modes: highlight the target by adapting the image, choose from Enhance, Highlight, and Natural

Ergonomic & Easy-to-Use

Simple, intuitive, silent buttons allow the user to navigate the Guide TrackIR Handheld Thermal Monocular’s functions easily even in complete darkness. Furthermore, support for Wi-Fi means the thermal camera can be controlled remotely via a smartphone or tablet and Guide’s App. Additionally, users can view live footage via a connected smartphone or tablet. Footage is also displayed on the Guide TrackIR Handheld Thermal Monocular’s full-colour, 0.4-inch, 1280 x 960px HD display.

Rugged & Stealthy Design

In addition to silent buttons, the Guide TrackIR Handheld Thermal Monocular includes an anti-light-leakage eyepiece and a work light that can be switched off. It also supports noiseless shutter calibration. These features work to conceal the user’s position, ensuring that the Guide TrackIR Handheld Thermal Monocular is a help, not a hindrance when hunting.

Furthermore, to ensure suitability for outside applications, the Guide TrackIR Handheld Thermal Monocular is housed in a rugged, IP66-rated casing that has been drop-tested from 1m. It is also equipped with a standard Picatinny rail and supports the addition of accessories. Users can adapt the Guide TrackIR Handheld Thermal Monocular for security, night patrol, law enforcement, and search and rescue applications by connecting a laser rangefinder, lighting and/or power bank (NOT included).

The Guide TrackIR Handheld Thermal Monocular is supplied with a large-capacity 6000mAh battery that provides up to five hours of power. It includes a USB Type-C port for charging, as well as a Micro HDMI connection for video transmission.

The Guide TrackIR Handheld Thermal Monocular is a small, versatile and simple-to-use infrared-imaging camera ideal for professional hunters.

Guide TrackIR Handheld Thermal Monocular Key Features

  • An infrared-imaging camera designed for professional hunters
  • Thermal detector: 400 x 300px resolution at 17µm
  • Frame rate: 50Hz
  • Capture sharp dynamic imaging throughout the FOV
  • See fast-moving game clearly at significant distances
  • Three models available with different detection distances and FOVs (see table above)
  • Smooth Zoom (1-4x)
  • Stadiametric Rangefinder: measures and displays the distance to targets with a known height
  • Picture-in-Picture function
  • Selectable colour palettes: White Hot, Black Hot, Iron Red, Blue Hot and Red Hot
  • Multiple Scene modes: Enhance, Highlight, and Natural
  • Full-colour, 0.4-inch, 1280 x 960px HD display
  • Support for Wi-Fi: view footage and operate the monocular using a smartphone or tablet with the Guide app installed
  • Simple, intuitive buttons that are easy to operate even in complete darkness
  • Rugged, IP66-rated casing
  • Drop-tested from 1m
  • Standard Picatinny rail interface
  • Supports the addition of accessories such as a laser rangefinder, lighting or power bank
  • Can be adapted for security, night patrol, law enforcement, and search and rescue applications
  • Anti-light leakage eyepiece
  • Silent buttons
  • The work light can be switched off
  • Noiseless shutter calibration
  • Large-capacity 6000mAh battery
  • Battery life: five hours
  • USB Type-C and Micro HDMI interfaces enable faster charging and better transmission
  • An adaptable, durable and powerful infrared imager ideal for professional hunters.

What’s Included?

  • Your Choice of Guide TrackIR Handheld Thermal Monocular
  • Power Adapter
  • USB Cable
  • Micro HDMI Cable
  • Lens Cover
  • Wrist Strap
  • Quick Start Guide
Part Code

Guide TrackIR Handheld Thermal Monocular Technical Specifications

Model TK25 TK35 TK50
Detector
Detector Type 400×300 @17μm, Vox
Spectral 8μm~14μm
NETD ≤50mk
Lens
Focal Length 25mm/F1.1 35mm/F1.2 50mm/F1.2
Focusing Manual Focus
FOV 15.4°×11.6° 11.1°×8.3° 7.8°×5.8°
Display
Screen 1280×960 , 0.4 inch,Color LCOS Display (Feel like watching 22 inch screen at 1 meter)
Eyepiece Monocular, Exit pupil≥10mm, Adjustable diopter-4~+2
Magnification 1.7~6.8 2.3~9.2 3.3~13.2
Imaging
Frame Rate 50Hz
Digital Zoom 1X~4X (Smooth zoom)
Colour Palettes White Hot, Black Hot, Iron Red, Blue Hot, Red Hot (TrackIR PRO: Adjustable Red Hot)
Scenes Modes Enhanced, Highlight, Natural
Picture-in-picture Picture-in-picture enlarged image is displayed on the upper left, upper-middle or upper right
Functions
Photo Yes Yes Yes
Video Yes Yes Yes
Hotspot tracking Yes Yes Yes
Stadiametric rangefinder Yes Yes Yes
Wi-Fi/APP Wi-Fi share photo and video, also can controlled by app(IOS & Android)
Compensation Modes Auto Compensation / Shutter Compensation / Scene Compensation
Indicate Box Red,/yellow/green, the coordinates of the indicate box is adjustable
Other image enhancement, brightness and contrast of image are adjustable, auto power-off,
auto sleep, super power-save mode, the work indicator could be shut off
Power Supply
Battery Type Internal Li-ion battery (2x18650, 6000mAh)
Working Time ≥5h
Weight & Dimensions
Weight 470g 485g 535g
Dimensions  192×65×71 214×65×71
Optional Accessories  External Picatinny rail, External screen and etc…
Interface
USB TYPE C for charging, data tranmission
Video Output Micro HDMI
External Connection External Connection by a Picatinny rail
Memory Card 16 GB
Environmental Characteristics
Operating Temperature -10℃~50℃
Storage Temperature -30℃~60℃
Encapsulation IP66, 1-meter drop test
Certificate UN38.3, RoHS, CE, FCC, EAC
