Hikmicro Mini2/Mini2 Plus Thermal Imaging Camera for Smartphones

SKU
Mini2-Series
Rating:
0%
(0)
Reward Points
:
202
£202.80 £169.00
Advice & Support Call 01642 931329 or contact us
Price Match We won't be beaten, let us know

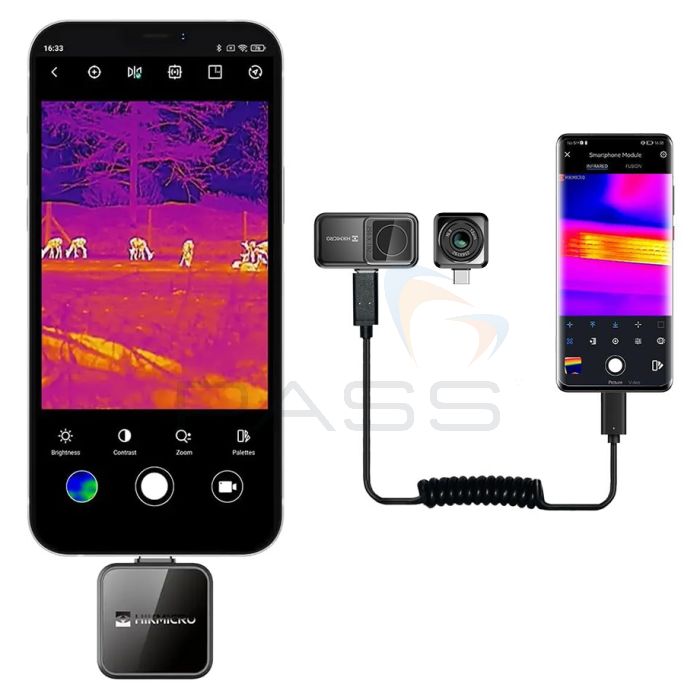

Hikmicro Mini2/Mini2 Plus Thermal Imaging Camera Screens

Suitable for finding water leaks, insulation issues, air infiltration and electrical/mechanical faults, the Hikmicro Mini2/Mini2 Plus Thermal Imaging Camera is a durable thermal module for Android smartphones. An easy-to-connect design ensures the Hikmicro Mini2-series plugs straight into your Android smartphone from which it draws power, facilitating battery-free operation. The Hikmicro Mini2-series thermal module runs on little power, as such it will not drastically affect the battery life of your smartphone. An 18mm extended connector ensures it can be used with smartphones in protective cases, while a 40cm extending cord makes inspecting difficult-to-access areas simple. A 256 x 192px VOx detector, < 40mk thermal sensitivity, 25Hz frame rate, and image enhancement algorithms deliver smooth, crisp footage. Furthermore, support for a -20°C to +350°C temperature range enables accurate measurements to ±2°C/%. Adjustable emissivity, distance, and range settings, alongside fifteen selectable thermal colour palettes and spot and area temperature measurements, help you to capture precise thermal images and temperature readings regardless of the environment or surface. The Hikmicro Mini2-Series Thermal Monocular also includes useful features such as compatibility with the Hikmicro Viewer App and a high-temperature alarm which issues visual and audible alerts when the temperature exceeds the user-specified maximum. The Hikmicro Mini2/Mini2 Plus Thermal Imaging Camera is a rugged, reliable infrared-imaging module offering rapid fault detection.

Hikmicro Mini2 vs Hikmicro Mini2-Plus

Hikmicro’s Mini2 series includes two models: the Mini2 and the Mini2 Plus. These models differ in respect to their dimensions, fields of view, and focus types. Please see the following table for details.

Thermal Module Mini2 Mini2 Plus
Dimensions 42 × 22.5 × 11.2 mm 26.6 × 26.6 × 25 mm
Field of View 50° × 37.2° 25° × 18.8°
Focus Focus Free Manual Focus

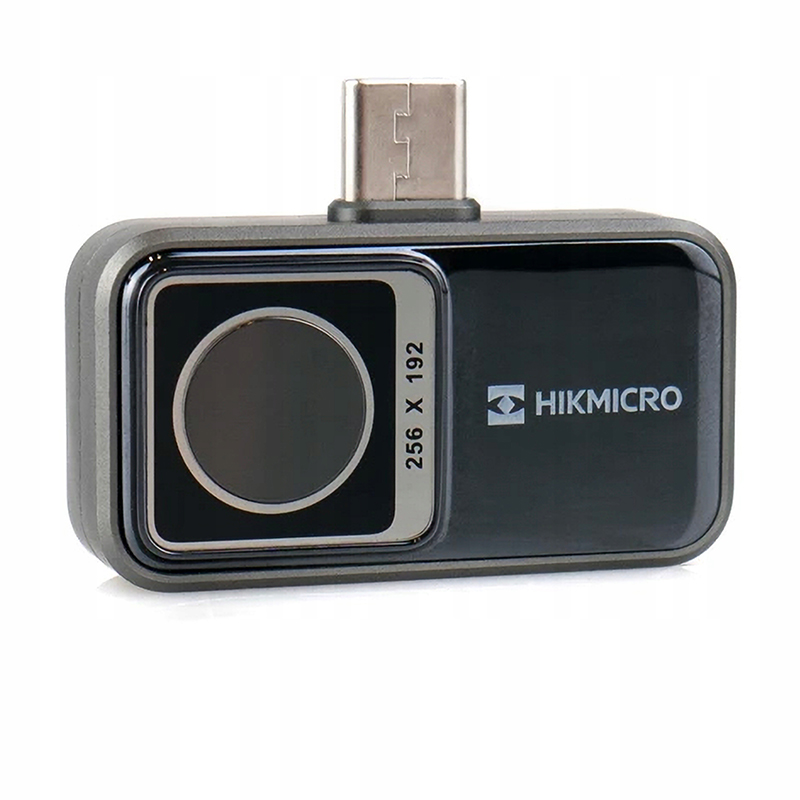

Hikmicro Mini2 Thermal Module

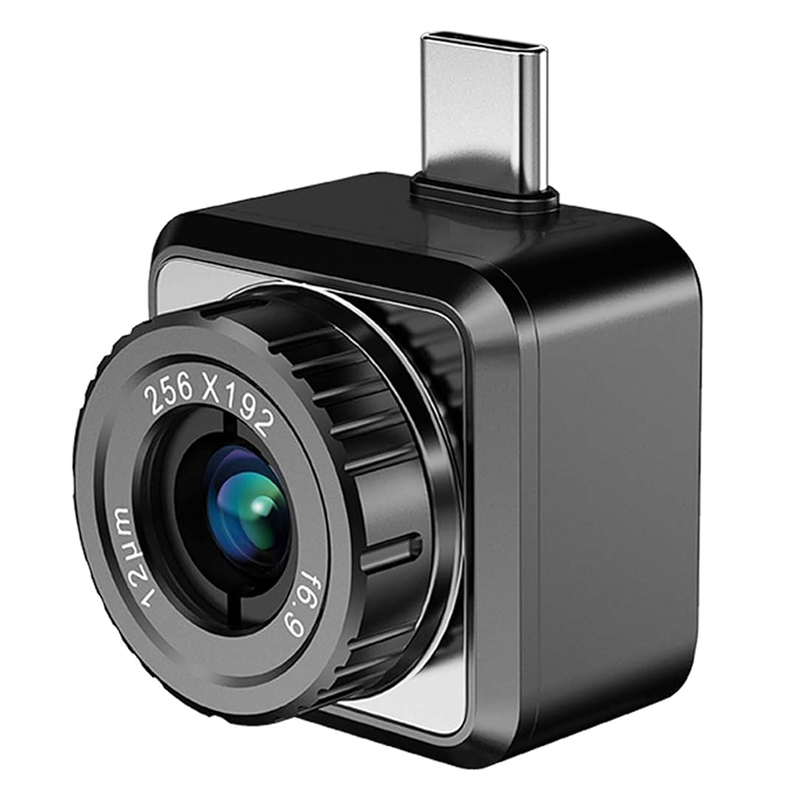

Hikmicro Mini2 Plus Thermal Module

Hikmicro Mini2/Mini2 Plus Thermal Imaging Camera Key Features

  • Durable thermal module specifically designed for use with Android smartphones
  • Compact, easy-to-connect design
  • Battery-free operation
  • Find water leaks, insulation issues, and air infiltration
  • Identify electrical/mechanical faults
  • 256 x 192px VOx detector
  • IR sensitivity: <40mK
  • Frame rate: 25Hz
  • Image enhancement algorithms
  • Temperature range: -20°C to +350°C
  • Accuracy: ±2°C/2%
  • Adjustable emissivity, distance, and range settings
  • 15 thermal colour palettes
  • Temperature measurements: Centre Spot, Hot Spot, Cold Spot, 3 Custom Spots, and 3 Areas
  • High-temperature Alarm
  • IP40
  • 1m drop tested
  • Aluminium alloy housing
  • 18mm extended connector
  • Protective casing
  • 40cm extending cord
  • Compatible with Hikmicro’s free Viewer App for Android
  • Two models available: Mini2 and Mini2 Plus
  • Mini2: rectangular, focus free, 50° FOV
  • Mini2-Plus: square, manual focus, 25° FOV
  • Rugged, reliable thermal imaging module offering rapid fault detection

What’s Included?

  • Hikmicro Mini2 OR Mini2 Plus Thermal Imaging Camera for Smartphones
  • 18mm extended connector
  • 40cm extending cord
  • Protective casing
  • Quick Start Guide

Hikmicro Mini2/Mini2 Plus Thermal Imaging Camera for Smartphones Technical Specifications

Thermal Imaging Module Mini2 Mini2 Plus
Infrared Image
IR Resolution 256 × 192 (49,152 pixels)
NETD < 40 mK (@ 25 °C, F#=1.0)
Image Frequency 25 Hz
Detector Pitch 12 μm
Spectral Range 7.5 to 14 μm
Focal Length 3.5 mm 6.9 mm
F-number F1.0
Field of View (FOV) 50° × 37.2° 25° × 18.8°
Focus Mode Focus Free Manual Focus
Min. Focus Distance 0.2 m (0.66 ft) 0.1 m (0.33 ft)
Image Display
Image Modes Thermal
Color Palettes White Hot, Black Hot, Rainbow, Ironbow, Sepia, Color, Ice Fire, Rain, Red Hot, Green Hot, Dark Blue, Combined
Measurement & Analysis
Object Temperature Range -20°C to 350°C(-4°F to 662°F )
Accuracy Max (±2°C/3.6°F, ±2%), for ambient temperature 15°C to 35°C (59°F to 95°F) and object temperature above 0°C (32°F)
Measurement Tools Center Spot, Hot Spot, Cold Spot
User-definable: 3 spots, and 3 rectangles.
Level and Span Mode Auto/Manual
General
Power Consumption 360 mW
Protection Level IP40
Drop Test Height 1 m (3.28 ft)
Working Temperature Range -10°C to 50°C (14°F to 122°F )
Storage Temperature Range -20°C to 60°C (-4°F to 140°F )
Weight Approx. 20 g (0.044 lb) Approx. 24 g (0.053 lb)
Dimension 42 × 22.5 × 11.2 mm (1.65 × 0.89 × 0.44 in) 26.6 × 26.6 × 25 mm (1.05 × 1.05 × 0.98 in)
Interface USB-C
