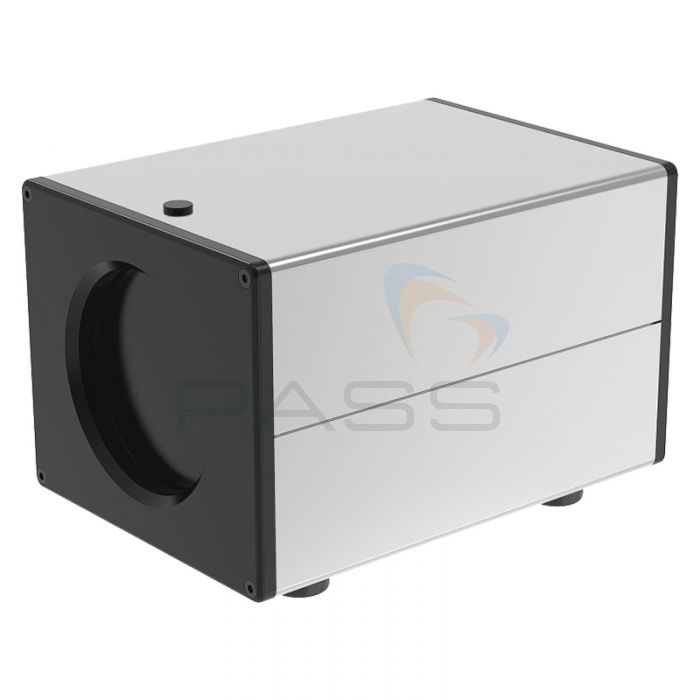

Hikvision DS-2TE127-G4A Black Body
The Hikvision DS-2TE127-G4A Black Body is a thermal camera calibrator designed to ensure that Hikvision’s thermal imaging cameras and systems are operating at their optimum. It is compatible with Hikvision's Temperature Screening Thermal Solutions (see the video below) and is particularly well suited to use with the following:
- Hikvision DS-2TD2617B DeepinView Body Temperature Bullet Thermal Cameras
- Hikvision DS-2TD1217B DeepinView Body Temperature Turret Thermal Cameras
The Hikvision DS-2TE127-G4A Black Body measures material emissivity and the parameters of the infrared sensor. It also transmits temperatures between the infrared emitter and the thermal camera. This highly accurate and stable thermal camera calibrator with strong anti-interference is able to support a range of different temperature settings. It provides easy temperature calibration and correction and can be used to calibrate thermal cameras in high accuracy.
The Hikvision DS-2TE127-G4A Black Body is a precise, reliable and adaptable thermal camera calibrator.
Hikvision DS-2TE127-G4A Black Body Key Features
- A thermal camera calibrator
- Ensures Hikvision’s thermal imaging cameras and systems are operating at their optimum
- Ideal for use with Hikvision’s DS-2TD2617B Bullet Thermal Cameras and DS-2TD1217B Turret Thermal Cameras
- Measures material emissivity
- Measures the parameters of the infrared sensor
- Transmits temperatures between the infrared emitter and the thermal camera
- Highly accurate and stable
- Strong anti-interference
- Supports a range of different temperature settings
- Provides easy temperature calibration and correction
- Can be used to calibrate thermal cameras in high accuracy
- A precise, reliable and adaptable thermal camera calibrator
What’s Included?
- Hikvision DS-2TE127-G4A Black Body
Hikvision DS-2TE127-G4A Black Body Technical Specifications
| Temperature Range | Environment Temperature+5 °C (41 °F), up to 50°C (122 °F) |
| Effective Radiating Area | 70 mm ×70 mm (2.76” ×2.76”) |
| Temperature Resolution | 0.1 °C (0.18 °F) |
| Temperature Accuracy | ± 0.1 °C (0.18 °F) |
| Temperature Stability | ± 0.1 °C/h |
| Effective Emissivity | 0.97 ± 0.02 |
| Power Consumption | 24 VDC, 50Hz, 20 W |
| Environment Temperature | 0 °C to 40°C (32 °F to 104 °F) |
| Weight | 1.85 Kg (4.08 lb) |
| Dimension | 120 mm × 103 mm × 170 mm (4.72” × 4.06” × 6.69”) |
| Power | 100 VAC to 240 VAC |
| Mounting | Mounting on a plane desk or a tripod with 2-1/4-20UNC Interface |
| SKU | DS-2TE127-G4A |
|---|---|
| Manufacturer Part Code | DS-2TE127-G4A |
