Metrel MD 9880 True-RMS Thermal Multimeter (50Hz)

Description

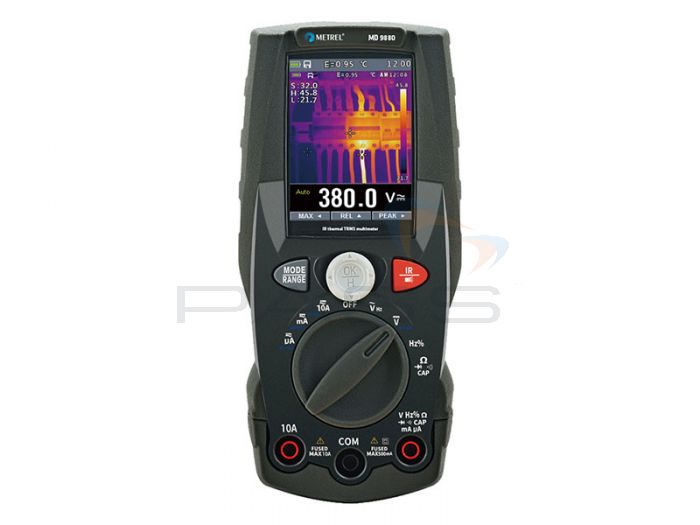

The Metrel MD 9880 True-RMS Thermal Multimeter is both a multimeter and an infrared imager. Thermal imaging expands its scope-for use. In addition to measuring electrical parameters, the Metrel MD 9880 True-RMS Thermal Multimeter can detect friction stress, thermal losses and leaks.

Thermal Imaging

The Metrel MD 9880 True-RMS Thermal Multimeter has an infrared resolution of 80x80px, a field-of-view of 21° x 21°, and a frame rate of 50Hz. Thermal images can be viewed in four different thermal palettes. Additionally, an on-screen cursor makes reading temperatures across the thermal image easy. The user can view temperatures in °C, °F or K. The Metrel MD 9880 True-RMS Thermal Multimeter can measure temperatures between -20°C to +260°C to an accuracy of ±3°C/3%.

Multimeter

Once hotspots have been detected using thermal imaging, the Metrel MD 9880 True-RMS Thermal Multimeter can test and measure various electrical parameters to troubleshoot the fault. The Metrel MD 9880 True-RMS Thermal Multimeter is auto- and manual-ranging and supports the following tests and electrical measurements:

AC/DC voltage (TRMS)
AC/DC current (TRMS)
Resistance
Frequency
Capacitance
Duty cycle
Diode test

The Metrel MD 9880 True-RMS Thermal Multimeter also features a selection of data functions including:

Hold
Auto-Hold
Min/ Max
Relative
Peak Capture

The Metrel MD 9880 True-RMS Thermal Multimeter makes troubleshooting and maintaining systems, equipment and buildings quick and easy.

Applications

Applications	Troubleshooting electrical installations (switchboards, contacts, busbars, etc.)
	Troubleshooting electrical equipment
	Troubleshooting electrical vehicles
	Mid-level electrical testing
	Field service
	Building and facility maintenance
	Energy loss analysis
	Troubleshooting other installations (pipes, carpentry, windows, etc)
	Hobby work

Metrel MD 9880 True-RMS Thermal Multimeter Key Features

A combined thermal imager and multimeter
Thermal imaging enables the detection of friction stress, thermal losses, and leaks
Thermal resolution: 80x80px
FOV: 21° x 21°
Frame rate: 50Hz
Temperature range: -20°C to +260°C
Accuracy: ±3°C/3%
On-camera cursor for reading thermal images
Temperatures can be displayed in °C, °F or K
Four thermal colour palettes
AC/DC voltage (TRMS)
AC/DC current (TRMS)
Resistance
Frequency
Capacitance
Duty cycle
Diode test
Manual- and auto-ranging
Hold function
Auto-Hold function
Min/ Max function
Relative function
Peak Capture function
Ideal for troubleshooting and maintenance applications

What’s Included?

Metrel MD 9880 True-RMS Thermal Multimeter
USB Cable
Carrying Case
Measuring Probe
Instruction Manual

Tech Specs

Metrel MD 9880 True-RMS Thermal Multimeter Technical Specifications

Thermal Viewer
IR sensor resolution	80x80 pxl
Temperature range	-20 – 260°C
Thermal sensitivity/NETD	0,1°C @ 30°C / 100 mK
Thermal accuracy	Higher value ±3°C or ±3 %
Field of vision	21° x 21°
Spectral range	8 – 14 µm
Frame rate	50 Hz
Focal length	7.5 mm
Spatial resolution	4.53 mrad
Emissivity	0.01 – 0.99
Min focus distance	0.5m
Focus	Fixed
Colour palettes	4
Multimeter
Function	Ranges	Accuracy
DC voltage	400.0 mV … 600.0 V	From ±(0.5 % + 5d) to ±(0.8 % + 8d)
AC TRMS voltage	4.000 V … 600.0 V	From ±(1.0 % + 5d) to ±(2.5 % + 5d)
AC + DC TRMS voltage	4.000 V … 600.0 V	±(2.5 % + 5d)
DC current	400.0 µA … 10.00 A	From ±(1.5 % + 5d) to ±(2.0 % + 8d)
AC TRMS current	400.0 µA … 10.00 A	From ±(2.0 % + 5d) to ±(2.5 % + 8d)
Resistance/continuity	400.0 Ω … 40.00 MΩ	From ±(1.0 % + 5d) to ±(2.5 % + 10d)
Frequency	40.00 Hz … 10.00 MHz	From ±(0.2 % + 5d) to ±(0.5 % + 0d)
Capacitance	40.00 nF … 4000 µF	From ±(3.0 % + 8d) to ±(3.5 % + 20d)
Duty cycle	10.0 % … 90.0 %	±(1.2 % + 2d)
Diode test	Test current <1.5 mA. max open circuit voltage 3.3 V

Downloads

Metrel MD9880 True-RMS Thermal Multimeter - Datasheet Datasheets

SKU	MD9880
Manufacturer Part Code	MD9880
Country of Origin	Taiwan
