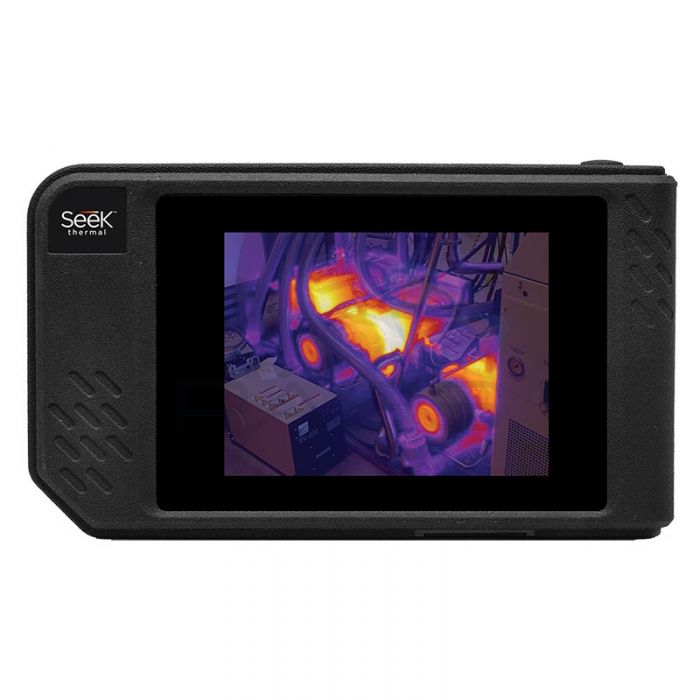

Seek Thermal Shot Thermal Imaging Camera

The Seek Thermal Shot & ShotPRO Thermal Imaging Cameras provide high-resolution, copious thermography tools, and an ergonomic, convenient design allowing users to identify, diagnose and report problems accurately, efficiently and easily.

The Seek Thermal Shot and Seek Thermal ShotPRO differ in regards to their fields-of-view and thermal resolutions, please see the following table.

Model Code Model Name FOV IR Resolution  Note
SW-AAA Shot  36° 206 x 156p The IR resolution is 6x higher than comparably priced thermal cameras.
SQ-AAA ShotPRO  57° 320 x 240p The IR resolution if 16x higher than comparably priced thermal cameras.

The Seek Thermal Shot & ShotPRO Thermal Imaging Cameras are capable of measuring temperatures between -40°C and +626°F / -40°C and 330°C. They can be used to capture thermal videos and images during the day and night and have a frame rate of 9Hz. The Seek Thermal Shot & ShotPRO Thermal Imaging Cameras also include four emissivity level pre-sets.

Thermography Tools

In addition to capturing infrared images and videos, the Seek Thermal Shot & ShotPRO Thermal Imaging Cameras are equipped with a range of editing and analysis functions for on-site evaluation of infrared media.

The Seek Thermal Shot & ShotPRO Thermal Imaging Cameras will automatically indicate the highest and lowest temperatures detected. The user can also lock and adjust the temperature span and can add up to three customisable temperature spots to monitor particular areas.

To monitor the temperatures of larger areas the user can apply up to three measurement boxes to the IR image; the Seek Thermal Shot & ShotPRO Thermal Imaging Cameras will indicate the minimum, maximum and average temperatures within these boxes.

It is also possible to blend thermal images with visual images to varying, user-specified degrees using the SeekFusion™ function; this allows the operator to see the detail and/or thermal data most relevant to his/her application.

Furthermore, the Seek Thermal Shot & ShotPRO Thermal Imaging Cameras include eight selectable colour palettes allowing the user to adjust the image to enhance particular details.

Edited images can be saved alongside original images, improving the speed and ease with which reports can be created.

Wi-Fi Streaming

Thermal media captured using the Seek Thermal Shot & ShotPRO Thermal Imaging Cameras can be streamed via Wi-Fi to any smartphone or tablet with the SeekView App downloaded. As a result, infrared images and videos can be sent to colleagues whilst the user is on-site, allowing collaborative decisions to be made in real-time.

Additionally, these cameras can be mounted to tripods and set to stream thermal videos to colleagues. This is particularly useful when working in challenging environments.

Ergonomic and Easy-to-Use

The durable, rugged, IP54-rated design of the Seek Thermal Shot & ShotPRO Thermal Imaging Cameras also adds to their suitability for challenging environments. Furthermore, their sleek, portable design means they can be easily carried in a pocket.

Moreover, the Seek Thermal Shot & ShotPRO Thermal Imaging Cameras have a best-in-class battery life, providing them with four hours of continuous power.

The Seek Thermal Shot & ShotPRO Thermal Imaging Cameras are easy-to-operate as they feature simple interfaces which are accessible via large, 3.5”, colour touchscreen displays. These displays have a resolution of 640 x 480-pixels allowing the user to view images in great detail.

The Seek Thermal Shot & ShotPRO Thermal Imaging Cameras’ ergonomic and easy-to-use designs mean that they can be used to quickly, simply and precisely identify, diagnose and report problems.

Applications

The Seek Thermal Shot & ShotPRO Thermal Imaging Cameras are suitable for the following applications:

  • Inspecting electrical panels, connections and fuses for faults
  • Checking that grilles, registers and diffusers in ventilation systems are sealed to ensure maximum efficiency
  • Finding air leaks in ducts which are invisible to the naked eye
  • Identifying inefficient air handlers
  • Diagnosing faulty equipment to improve energy efficiency
  • Locating missing or substandard insulation

The Seek Thermal Shot & ShotPRO Thermal Imaging Cameras are advanced infrared and visible imaging cameras that provide an ergonomic, efficient and easy method of identifying, diagnosing and reporting problems. They are ideal for building professionals.

Seek Thermal Shot & ShotPRO Thermal Imaging Cameras Key Features

  • Provide high-resolution, copious thermography tools, and an ergonomic, convenient design
  • Identify, diagnose and report problems accurately, efficiently and easily
  • Differ in regards to their FOVs and thermal resolutions
  • Seek Shot: 36° FOV, 206 x 156p thermal resolution
  • Seek ShotPRO: 57° FOV, 320 x 240p thermal resolution
  • Seek Shot offers an IR resolution 6x higher than comparably priced cameras
  • Seek ShotPRO offers an IR resolution 16x higher than comparably priced cameras
  • Temperature range: -40°C to +626°F / -40°C to 330°C
  • Can be used during the day and night
  • Frame rate: 9Hz
  • Four emissivity level pre-sets
  • Equipped with a range of editing and analysis functions
  • Evaluate thermal media on-site
  • Automatically indicates the highest and lowest temperatures detected
  • Lock and adjust the temperature span
  • Add up to three customisable temperature spots to monitor specific areas
  • Add up to three measurement boxes: indicates the max, min and avg temperature for each box
  • SeekFusion™ function: blend thermal and visual images to varying, user-specified degrees
  • Eight selectable colour palettes
  • Save edited images alongside original ones
  • Stream thermal media via Wi-Fi to any smartphone or tablet with the SeekView App downloaded
  • Enables collaborative, real-time decisions
  • Mount to a tripod and stream thermal footage
  • Suitable for use in challenging environments
  • Durable, rugged, IP54-rated design
  • Sleek, portable design
  • Can be carried in a pocket
  • Best-in-class battery life: provides four hours of continuous power
  • Simple interface
  • Large, 3.5”, colour touchscreen display
  • Display resolution: 640 x 480-pixels
  • Inspect electrical panels, connections and fuses for faults
  • Check that grilles, registers and diffusers in ventilation systems are sealed to ensure maximum efficiency
  • Find air leaks in ducts which are invisible to the naked eye
  • Identify inefficient air handlers
  • Diagnose faulty equipment to improve energy efficiency
  • Locate missing or substandard insulation
  • Advanced infrared and visible imaging cameras
  • Provide an ergonomic, efficient and easy method of identifying, diagnosing and reporting problems
  • Ideal for building professionals

What’s Included?

  • Your Choice of Seek Thermal Shot OR ShotPRO Thermal Imaging Camera (9Hz)
  • Wrist Lanyard
  • Welcome Guide
  • USB Cable

Seek Thermal Shot & ShotPRO Thermal Imaging Cameras Technical Specifications

Specifications Shot ShotPRO
Thermal Sensor 206 x 156 (32,000 pixels) 320 x 240 (76,800 pixels)
SeekFusion™ Yes
Field of View 36 Degree FOV 57 Degree FOV
Temperature Range -40°F to 626°F (-40°C to 330°C)
Frame Rate < 9 Hz
Focus Fixed Focus
Light/Flash Yes
Display 3.5” Color Display (648 x 480 Resolution)
Microbolometer Vanadium Oxide
Thermal Sensitivity < 70 mK
Spectral Range 7.5 – 14 Microns
User Interface Intuitive Touch Screen
Temp. Display Scale Fahrenheit, Celsius or Kelvin
Colour Palettes White, Black, Tyrian, Spectra, Iron, Prism, Amber & Hi
Storage Media 4GB Internal Storage
Battery Up to 4 Hours Thermal Imaging
WiFi WiFi-enabled. Connect & stream via SeekView app
