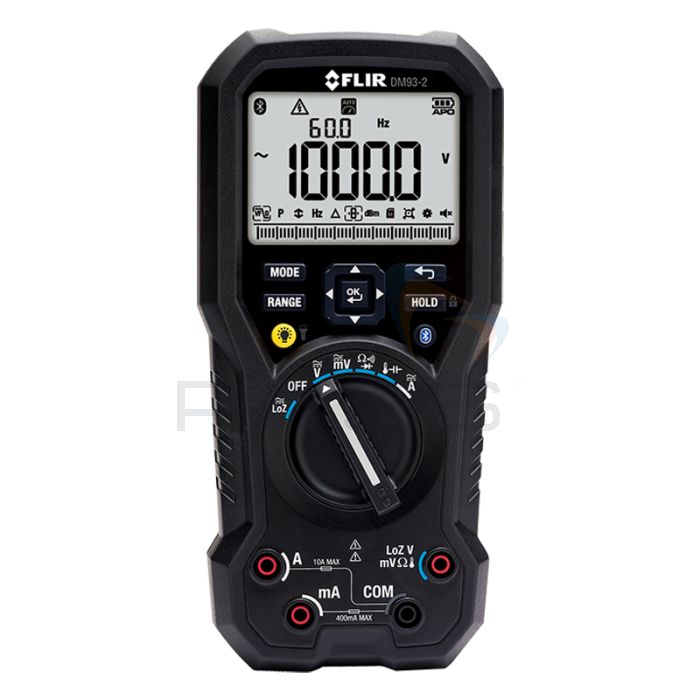

Teledyne FLIR DM93-2 Industrial Digital Multimeter
- LoZ mode & Advanced Variable Frequency Drive Filtering
- Backlit display with large, easy-to-read digits and an analogue bar graph
- METERLink connectivity
SKU
DM93-2
MPN
DM93-2
A durable, dependable, true-RMS DMM, the Teledyne FLIR DM93-2 Industrial Digital Multimeter is specifically designed for analysing non-traditional sine waves and noisy signals. Featuring a 1000V range, the Teledyne FLIR DM93-2 Industrial Digital Multimeter can read:
- True-RMS voltage
- True-RMS current
- VFD voltage
- Resistance
- Continuity
- Frequency
- Capacitance
- Temperature
- Diode
It also includes sophisticated measuring functions such as a Low Impedance (LoZ) mode and Advanced Variable Frequency Drive Filtering. Data is indicted in large, easy-to-read digits on the backlit display. It can also be viewed remotely (up to 30 feet from the Teledyne DM93-2 DMM) on a smartphone/tablet with the METERLink App installed. Optimised for harsh industrial environments, the Teledyne FLIR DM93-2 Industrial Digital Multimeter is housed in an IP54-rated, 3m-drop-tested, durable, dependable casing. It also includes a built-in LED work light enabling use in dim or dark areas. Ideal for diagnosing intermittent electrical problems; performing electronics quality control inspections; and logging and tracking changes in electrical systems, the Teledyne FLIR DM93-2 Industrial Digital Multimeter is an easy to use, rugged, and reliable DMM perfect for industrial work sites.
Teledyne FLIR DM93-2 Industrial Digital Multimeter Key Features
- Durable, dependable, true-RMS digital multimeter for analysing non-traditional sine waves and noisy signals
- 1000V range
- True-RMS voltage
- True-RMS current
- VFD voltage
- Resistance
- Continuity
- Frequency
- Capacitance
- Temperature
- Diode
- Advanced Variable Frequency Drive Filtering
- Low Impedance (LoZ) mode
- Backlit display with large, easy-to-read digits and an analogue bar graph
- METERLink App connectivity
- View, trend, and log data via the METERLink App
- Create reports using the METERLink App
- Set customisable alarms via the METERLink App
- Connect up to seven meters simultaneously to the METERLink App
- IP54
- 3m drop tested
- Durable, double-moulded casing
- Built-in LED work light
- Diagnose intermittent electrical problems
- Perform electronics quality control inspections
- Log and track changes in electrical systems
- Easy-to-use, rugged, and reliable DMM ideal for conducting electrical checks and troubleshooting
What’s Included?
- Teledyne FLIR DM93-2 Industrial Digital Multimeter
- 1x Set of Test Leads (CAT IV-600V/ CAT III-1000V)
- 1x Set of Alligator Clips (CAT IV-600V/ CAT III-1000V)
- 6x Alkaline Batteries (E92)
- 1x Quick Start Guide
- 1x Warranty Card (From Teledyne FLIR)
Technical Information
Specification
Teledyne FLIR DM93-2 Industrial Digital Multimeter Technical Specifications
| DC voltage | 1000.0 V ± 0.05% |
| AC voltage | 1000.0 V ± 0.5% |
| VFD voltage | 1000.0 V ± 0.5% |
| DC current | 10.000 A ± 0.2% |
| AC current | 10.000 A ± 1.0% |
| Resistance | 40.00 MΩ ± 0.2% |
| Continuity threshold | 30 Ω ± 0.2% |
| Frequency | 100.00 kHz ± 5 digits |
| Capacitance | 40.00 mF ± 0.9% |
| Temperature | -200°C to 1200°C (-328°F to 2192°F) ± 1.0% |
| Diode test | 2 V ±1.5% |
| Maximum voltage applied to any terminal | 1000 V DC or 1000 V AC RMS |
| ACV bandwidth | 5 kHz |
| ACA bandwidth | 5 kHz |
| Measuring rate | 10 samples per second |
| Meter Data | |
| Bluetooth range (maximum) | 10 m (32 ft) |
| Display counts | 40,000 |
| Category rating | CAT IV-600 V, CAT III-1000 V |
| Data recording | 10,000 points |
| Certifications | |
| Certifications | UL, CE, FCC, UKCA |
| Safety standards | IEC 61010-1 CAT IV-600 V and CAT III-1000 V, IEC 61010-2-33 |
| Power Systems | |
| Power requirements | 6 × 1.5 V AAA alkaline batteries |
| Battery life | ~100 hours with alkaline batteries (backlight, worklight, and Bluetooth off) |
| Auto power off | Default: 10 minutes |
| Environmental Data | |
| Drop test | 3 m (9.8 ft |
| IP rating | IP54 dust-protected and splash-resistant |
| Operating ambient temperatures and relative humidity (RH) | -10°C to 30°C (14°F to 86°F), <85% RH 30°C to 40°C (86°F to 104°F), <75% RH 40°C to 50°C (104°F to 122°F), <45% RH |
| Storage temperature and RH | -30°C to 60°C (-22°F to 140°F), 0 to 80% RH (batteries not fitted) |
| Temperature coefficient | 0.1 × (specified accuracy)/°C, <18°C, >28°C |
| Operating altitude | 2000 m (6550 ft) |
| Electromagnetic compatibility | EN 61326-1 |
| Shock vibration | Random vibration per MIL-PRF-28800f Class 2 (5 Hz to 55 Hz, 3 g maximum) |
| Meter Physical Data | |
| Weight | 601 g (1.33 lb) including batteries |
| Dimensions (H × W × L) | 60.7 mm × 98.1 mm × 207.1 mm (2.39 in × 3.86 in × 8.15 in) |
