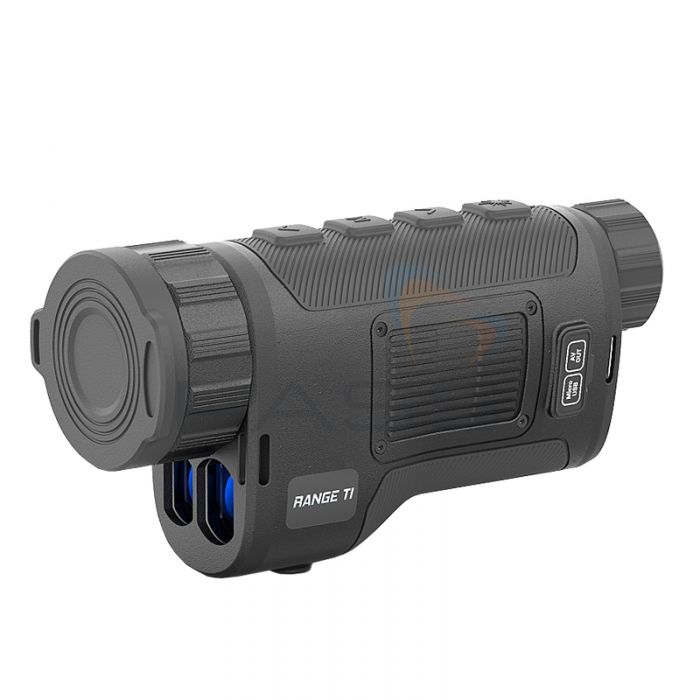

The Conotech Range TI35/50 LRF Thermal Imaging Monocular is an easy-to-use and ergonomic infrared imager capable of delivering crisp, fluid thermal imaging even in conditions with low thermal contrast, such as during rain, snow, fog, and cold mornings. It features a 384 x 288 17µm <35mK NETD thermal sensor, focusable lens, and 50Hz frame rate, as well as a 1024x768 HD frost-resistant OLED display.

Other features include an Image Enhancement function, smooth digital zoom, selectable colour palettes and observation modes, and a built-in laser rangefinder able to measure distances up to 1000m to an accuracy of ±1m. The Conotech Range TI35/50 LRF Thermal Imaging Monocular is also equipped with a built-in 32Gb memory, Wi-Fi module, video output (USB), and battery pack. Its power-saving mode and fast start-up extend the operating time while an ergonomic design and centralised controls make the Conotech Range TI35/50 LRF Thermal Imaging Monocular easy to use. To ensure suitability for outdoor applications, the Conotech Range TI35/50 LRF Thermal Imaging Monocular is housed in an IP67-rated casing.

The Conotech Range TI35/50 LRF Thermal Imaging Monocular is an excellent, ergonomic, and easy-to-use thermal imager. There are two versions available that differ in regards to their lenses, magnification ranges, and detection distances. Please see the table below for more details.

SKU Title  Objective Lens Magnification  Detection Distance
CON-RANGE-TI-35-LRF Conotech Range TI35 LRF Thermal Imaging Monocular 35mm 10.55x max 1750m
CON-RANGE-TI-50-LRF Conotech Range TI50 LRF Thermal Imaging Monocular 50mm 15.56x max 2500m

Conotech Range TI35/50 LRF Thermal Imaging Monocular Key Features

  • Infrared imager delivering crisp, fluid thermal imaging even in conditions with low thermal contrast
  • 384 x 288 17µm <35mK thermal sensor
  • Focusable lens
  • 50Hz frame rate
  • 1024 x 768 HD frost-resistant OLED display
  • Two versions available that vary in regards to their lenses, magnification ranges, and detection distances
  • Smooth digital zoom
  • Image enhancement function
  • Selectable colour palettes and observation modes
  • Built-in laser rangefinder: measures distances up to 1000m to an accuracy of ±1m
  • Integrated 32Gb memory
  • Built-in Wi-Fi module
  • Stream/ transfer footage wirelessly to a smartphone/tablet with Conotech’s dedicated app installed
  • Video output (USB)
  • Centralised control
  • Ergonomic
  • Built-in battery pack
  • Power-saving mode
  • Fast start-up
  • Long operating time
  • IP67
  • Excellent, ergonomic, and easy-to-use thermal imager

What’s Included?

  • Your Choice of Conotech Range TI35 or TI50 LRF Thermal Imaging Monocular
Part Code

Conotech TI35/50 LRF Thermal Imaging Monocular Technical Specifications

  Range TI35 Range TI35
Thermal Sensor 384x288 17µm <35mK NETD
Frame Rate 50Hz
Display 1024x768 HD OLED
Objective Lens 35mm 50mm
Field of View 10.6° 7.4°
Magnification 2.72x - 10.88x (4x smooth digital zoom) 3.89x - 15.56x (4x smooth digital zoom)
Detection Range 1750m (Based on 1.7m deer-sized objects) 2500m (Based on 1.7m deer-sized objects)
Battery Built-In lithium battery
Power 5V micro USB
Operation Time 8hrs
Rating IP67 (waterproof)
Operating Temperature -20℃ to 50℃
Rangefinder 5-1000m (±1m) (eye-safe: Class 1 laser)
LRF Modes Single time measurement | Scanning | High-Humidity
Weight 540g 590g
Dimensions 155x50x92mm 165x56x92mm
