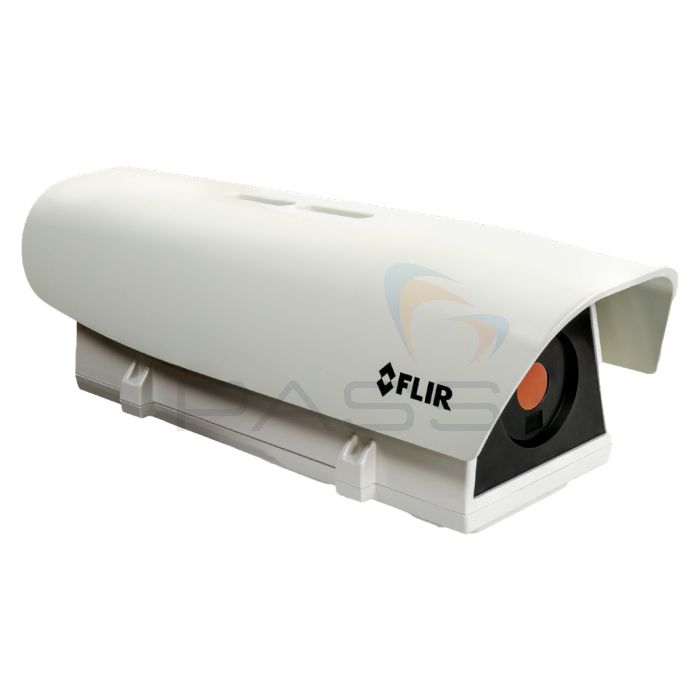

Flir A500f Advanced Thermal Smart Sensor Camera, DFOV 42° + 24° (464 x 348px)
- FSX technology
- Superior image quality
- HMI/SCADA-compatible
SKU
90612-0301
MPN
90612-0301
The A500f combines built-in analytics, alarms, and edge computing to protect assets, improve safety, and minimise downtime. It operates from -30 °C to 50 °C and is well-suited for outdoor monitoring and early fire detection.
It features 464 × 348 px resolution, FSX® image enhancement, remote motorised focus, and three lens options. Thermal and visible video streams can be viewed separately or together for smooth VMS integration.
Connectivity includes ONVIF, Modbus, MQTT, and REST API, providing easy deployment with HMI/SCADA and IIoT platforms.
Key Features
- HMI/SCADA-compatible using Modbus TCP client & server and Ethernet/IP
- ONVIF S compliant and integrates into standard security VMS and NVR solutions, including control of pan/tilts
- Ready for the fourth industrial revolution, with support for widely adopted IIoT protocols such as MQTT and REST API, in both XML and JSON format
- Improve definition of areas of interest or object curvatures using polygon, polyline, and line functions
- Integrate into industrial automation systems using analogue and digital control thanks to superior I/O control via Modbus TCP Client and Server, Ethernet IP, REST API, and MQTT
- Conserve network bandwidth with compressed radiometric streaming to FLIR Atlas SDK polarised glasses
- Provides superior image quality with 464 x 348px thermal resolution
- Increase contrast in even-temperature scenes and enhance edge detail in low light using FSX® (Flexible Scene Enhancement) technology
- Ensure temperature accuracy of objects at different distances using remote motor focus via Ethernet communication
- FLIR A500f camera provides communication and control options that allow easy integration into existing monitoring systems
- Tailor thermal imaging monitoring to meet any site’s unique requirements
- Deliver consistent, accurate results in harsh conditions
Technical Information
Specification
| System Overview | A500f | A700f |
|---|---|---|
| IR Resolution | 464 x 348 (161,472 pixels) | 640 x 480 (307,200 pixels) |
| Visual Resolution | 1280 x 960 (not applicable for the 80° version) | |
| Detector Pitch | 17µm | 12µm |
| MSX & FSX | Yes (MSX is not available for the 80° version) | |
| Available Field of Views | 14°, 24°, 42°, 80, 14°, 24°, 42°, 80°, FlexView® dual FOV (24°/14°), FlexView® dual FOV (42°/24°) lenses | |
| Focal Plane Array [FPA] | Uncooled microbolometer | |
| Focus | Motorised focus, manual & on-command automatic (scene contrast method) | |
| Image Frequency | 30 Hz | |
| Image Storage | Records up to 100 FLIR radiometric JPEGs Storage as a function of: alarm, scheduling, or user interaction (camera web) |
|
| Measurement | ||
| Object Temperatures | -20°C to 120°C (-4°F to 248°F) 0°C to 650°C (32°F to 1202°F) 300°C to 1500°C (572°F to 2732°F) |
-20°C to 120°C (-4°F to 248°F) 0°C to 650°C (32°F to 1202°F) 300°C to 2000°C (572°F to 3632°F) |
| Accuracy | ±2°C (±3.6°F) or ±2% of reading, for ambient temperature 15°C-35°C (59°F-95°F) and object temperature above 0°C (32°F) | |
| Readout | Measurement results: Ethernet/IP, Modbus TCP server (pull), Modbus TCP client (push), MQTT (push), REST API (GET/POST), measurements and still image (radiometric JPEG, visual 640 x 480, visual 1280 x 960), web interface | |
| Automatic Hot/Cold Detection | Max./min. temperature value and position shown within the box, polygon, line or polyline | |
| Measurement Presets | Yes | |
| Measurement Tools | 10 spot meters, 10 boxes or mask polygons, 3 Deltas (difference any value/reference/external lock), 2 isotherms (above/below/interval), 2 iso-coverage, 1 reference temperature, 2 lines, 1 polyline, Maximum 12 measurement functions at the same time | |
| Web Interface | Yes | |
| Multi Streaming | Yes | |
| Alarm | ||
| Alarm Functions | On any selected measurement function digital in internal camera temperature |
|
| Alarm Output | Digital out, e-mail (SMTP) (push), Ethernet/IP, file transfer (FTP) (push), Modbus TCP server (pull), MQTT (push), query over RESTful API (pull), store image or video | |
| Encoding | Video stream: H.264, MPEG4, or MJPEG Radiometric stream: Compressed JPEG-LS over RTSP |
|
| Digital Input/Output | ||
| Digital I/O Connector Type | The terminal block inside the housing | |
| Digital I/O Isolation Voltage | 500 VRMS | |
| Digital Input Purpose | NUC, NUC disable, alarm | |
| Digital Inputs | 2x optoisolated, Vin(low)= 0-1.5 V, Vin(high)= 3-25 V | |
| Digital Output Purpose | As a function of alarm, output to an external device, Fault (NC) | |
| Digital Outputs | 3x optoisolated, 0-48 V DC, max. 350 mA; solid-state opto relay 1x dedicated as Fault output (NC) |
|
| Cable Glands | 1x M12, 1x M16, 1x M20 | |
| Ethernet | ||
| Ethernet | For control, result, image, and power | |
| Ethernet Communication | TCP/IP socket-based FLIR proprietary | |
| Ethernet Connector Type | IP67 rated RJ45 port | |
| Ethernet Interface | Wired | |
| Ethernet Power | Power over Ethernet, PoE IEEE 802.3af class 3 Ethernet/IP, IEEE 1588, Modbus TCP, MQTT, SNMP, TCP, UDP, SNTP, RTSP, RTP, HTTP, HTTPS, ICMP, IGMP, sftp (server), FTP (client), SMTP, DHCP, MDNS (Bonjour), uPnP, PoE injector sold separately | |
| Environmental Data | ||
| Operating Temperature Range | -30°C to 50°C (-22°F to 122°F) | |
| EMC | EN50130-4, EN61000-6-3, EN55022 Class B, FCC Part. 15 Class B | |
| Encapsulation | IP67 | |
| Physical Data | ||
| Size [L x W x H] | 51.5 cm x 17.7 cm x 22.9 cm (20.28 in x 6.97 in x 9.02 in) | |
| Housing Material | Aluminium housing, sun-shield in ABS | |
| System Features | ||
| Heater | 8W, electronically controlled, T_ON 20°C ±2°C (68°F ±4°F), T_OFF 23°C ±2°C (73.4°F ±4°F) | |
| ONVIF Conformance | Yes. ONVIF Profile S | |
| Window Transmission | Automatic, based on window temperature | |
| Power Consumption | 30W PoE, PoE+, Type 2. IEEE 802.3af, IEEE 802.3at/PoE Plus | |
Document Downloads
Additional Information
SKU
90612-0301
Manufacturer Part Code
90612-0301
Country of Origin
Sweden
