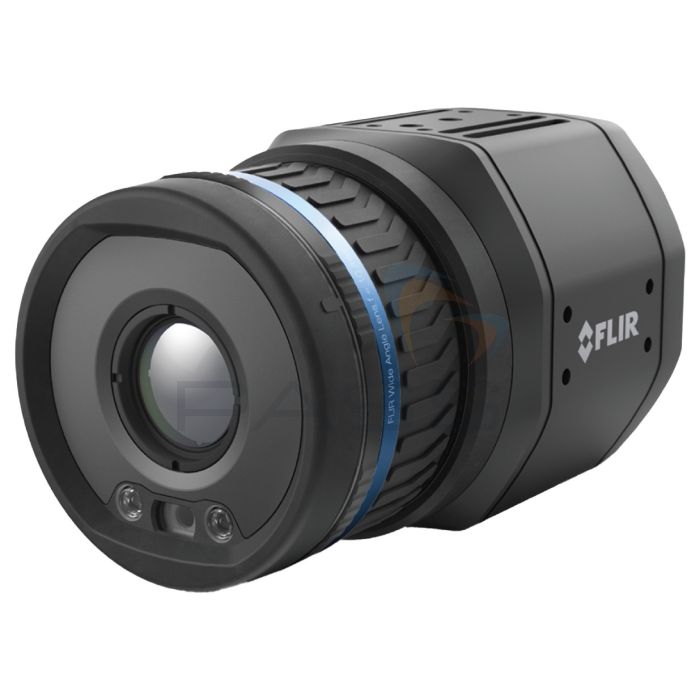

Flir A700 Thermal Image Streaming Camera, DFOV 42° + 24° (640 x 480px)
- GigE and RTSP protocol support
- GigE Vision and GenICam compliance
- Multi-streaming capability
SKU
85912-0401
MPN
85912-0401
The FLIR A700 Thermal Image Streaming Camera includes multi-streaming options, motorised focus, and optional radiometric streaming over Wi-Fi. The A700 features plug-and-play integration, GigE Vision, GenICam, a measurement accuracy of ±2°C, and has a 640 × 480 px IR resolution.
Key Features
- High thermal resolution (640 x 480px)
- ±2°C measurement accuracy for precise monitoring
- Field-of-view options for tailored applications
- Multi-streaming capability, including radiometric streaming over Wi-Fi
- Motorised focus control for optimal image clarity
- GigE Vision and GenICam compliance for easy integration
- Advanced configuration with GigE and RTSP protocol support
Technical Information
Specification
| Detector Data | Standard Configuration | Advanced Configuration |
|---|---|---|
| IR Resolution | 320 × 240 (A400), 464 × 348 (A500), or 640 × 480 (A700) | |
| Visual Resolution | 1280 × 960 | |
| Focal Plane Array/Spectral Range | <30 mK to <50 mK, lens dependent | |
| Lenses | 6°, 14°, 24°, 42°, 80°, FlexView® (24°/14°) or (42°/24°) lenses | |
| IR Camera Focus | One-shot contrast, motorised, manual | |
| Measurement | ||
| Object Temperatures | -20°C to 120°C (-4°F to 248°F) 0°C to 650°C (32°F to 1202°F) A400/A500: 300°C to 1500°C (572°F to 2732°F) A700: 300°C to 2000°C (572°F to 3632°F) |
|
| Accuracy | ±2°C (±3.6°F) or ±2% of reading | |
| Video Streaming, RTSP Protocol | ||
| Unicast | - | Yes |
| Multicast | - | Yes |
| Multiple Image Streams | - | Yes |
| RTSP Protocol - Video Stream 0 | ||
| Source | - | Visual, IR, MSX |
| Contrast Enhancement | - | FSX, histogram equalisation (IR only) |
| Overlay | - | With, without |
| Pixel Format | - | YUV411 |
| Encoding | - | H.264/MPEG4/MJPEG |
| RTSP Protocol - Video Stream 1 | ||
| Source | - | Visual, IR, MSX |
| Overlay | - | No |
| Pixel Format | - | YUV411 |
| Encoding | - | H.264/MPEG4/MJPEG |
| Radiometric Streaming, RTSP | ||
| Source | IR | |
| Pixel Format | MONO 16 | |
| Encoding | Compressed JPEG-LS; FLIR radiometric | |
| Video/Radiometric Streaming, GVSP (GigE Vision) Protocol | ||
| Unicast | Yes | |
| Multicast | Yes | |
| Multiple Image Streams | No | |
| Non-radiometric Streaming, GVSP (GigE Vision) Protocol | ||
| Resolution | Visual, IR, MSX, 640 × 480 pixels | |
| Contrast Enhancement | FSX (optional), histogram equalisation (IR only) | |
| Overlay | With, without | |
| Pixel Format | YUV411 or MONO 8 | |
| Encoding | Uncompressed | |
