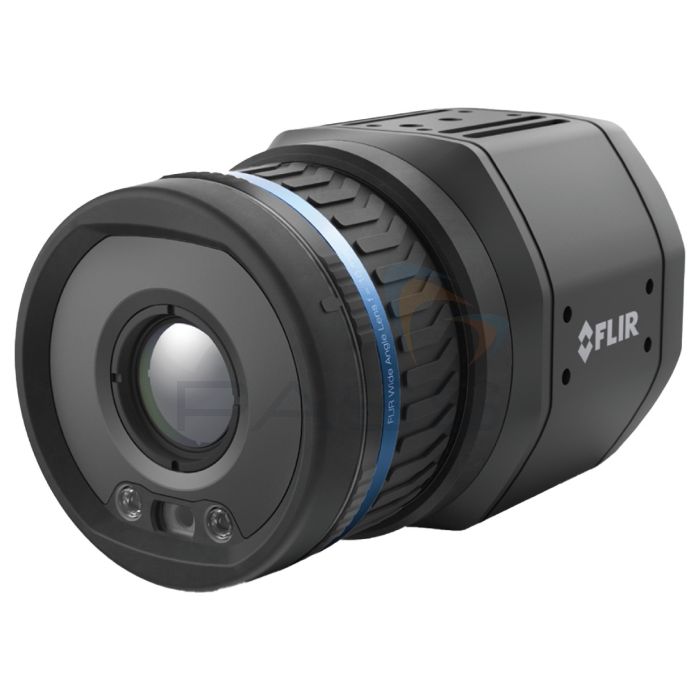

Flir A700 Thermal Smart Sensor Camera, DFOV 42° + 24° (640 x 480px)
- Automatically detect hot or cold spots
- Robust and reliable
- Temperature range: 300 °C to 2000°C
SKU
85912-0701
MPN
85912-0701
The FLIR A700 has onboard measurement tools, configurable alarms, a resolution of 640 × 480 pixels (307,200 pixels), and an accuracy of ±2 °C or ±2% of the measured value. It has a wide selection of lenses, including 6°, 14°, 24°, 42°, 80°, and FlexView options. Focusing can be motorised, manual, or automatically set using one-shot contrast, while the camera is capable of handling temperatures ranging from 300 °C to 2000 °C.
Key Features
- On-camera temperature measurement and alarming tools provide immediate results
- Unrivalled connectivity and on-the-edge computing for easy integration into web applications
- Robust and reliable thermal imaging for applications where temperature accuracy matters
- Continuous thermal monitoring of critical infrastructure
- Early fire detection for fast response
- Temperature-based machine and process control
Technical Information
Specification
| Detector Data | Standard Configuration | Advanced Configuration |
|---|---|---|
| IR Resolution | 320 x 240 (A400), 464 x 348 (A500), or 640 x 480 (A700) | |
| Visual Resolution | 1280 x 960 | |
| Focal Plane Array/Spectral Range | <30 mK to <50 mK, lens dependent | |
| Lenses | 6°, 14°, 24°, 42°, 80°, FlexView® (24°/14°) or (42°/24°) lenses | |
| IR Camera Focus | One-shot contrast, motorised, manual | |
| Measurement | ||
| Object Temperatures | -20°C to 120°C (-4°F to 248°F) 0°C to 650°C (32°F to 1202°F) A400/A500: 300°C to 1500°C (572°F to 2732°F) A700: 300°C to 2000°C (572°F to 3632°F) |
|
| Accuracy | ±2°C (±3.6°F) or ±2% of reading | |
| Measurement Analysis | ||
| Standard Functions | 10 spot meters, 10 boxes, 3 Deltas, 1 isotherm, 1 iso-coverage, 1 reference temperature | 10 spot meters, 10 boxes & mask polygons, 3 Deltas, 2 isotherms, 2 iso-coverage, 1 reference temperature, 2 lines, 1 polyline |
| Automatic Hot/Cold Detection | Max./min. temperature value and position shown within the box | |
| Scheduled Response | SFTP (image), SMTP (image and/or measurement data/result) | |
| Measurement Frequency | Up to 10 Hz | |
| Measurement Result Read-Out | Yes, common protocols include Ethernet/IP, Modbus TCP, MQTT, and REST API | |
| Dynamic Range | 16-bit | |
| Alarm | ||
| Alarm Function | On any selected measurement function digital in internal camera temperature |
|
| Alarm Output | Yes: common output includes e-mail, Ethernet/IP, Modbus TCP, RESTful API, and ONVIF (advanced only) | |
| Video Streaming, RTSP Protocol | ||
| Unicast | Yes | |
| Multicast | Yes | |
| Multiple Image Streams | Yes | |
| RTSP Protocol - Video Stream 0 | ||
| Source | Visual, IR, MSX | |
| Contrast Enhancement | FSX, histogram equalisation (IR only) | |
| Overlay | With, without | |
| Pixel Format | YUV411 | |
| Encoding | H.264/MPEG4/MJPEG | |
| RTSP Protocol - Video Stream 1 | ||
| Source | Visual | |
| Overlay | No | |
| Pixel Format | YUV411 | |
| Encoding | H.264/MPEG4/MJPEG | |
| Radiometric Streaming, RTSP | ||
| Source | - | IR |
| Pixel Format | - | MONO 16 |
| Encoding | - | Compressed JPEG-LS; FLIR radiometric |
| Ethernet | ||
| Interface | Wired Wi-Fi* |
|
| Connector Types | M12 8-pin X-coded, female RP-SMA, female |
|
| Ethernet Type & Standard | 1000 Mbps, IEEE 802.3 | |
| Ethernet Power | Power over Ethernet, PoE IEEE 802.3af class 3 | |
| Ethernet Protocols | Include EtherNet/IP, Modbus TCP, and MQTT | |
| Digital Input/Output | ||
| Connector Type | M12 Male 12-pin A-coded (shared with ext. power) | |
| Digital Input | 2x optoisolated, Vin (low) = 0-1.5 V, Vin (high) = 3-25 V | |
| Digital Output | 3x optoisolated, 0-48 V DC, max. 350 mA (derated to 200 mA at 60°C). Solid-state opto relay, 1x dedicated as fault output (NC) | |
| Power System | ||
| Connector Type | M12 Male 12-pin A-coded (shared with Digital I/O) | |
| Power Consumption | 7.5 W at 24 V DC typical 7.8 W at 48 V DC typical 8.1 W at 48 V PoE typical |
|
| Wi-Fi (*Optional Feature) | ||
| Connector Type | Female RP-SMA- | |
Document Downloads
Additional Information
SKU
85912-0701
Manufacturer Part Code
85912-0701
Country of Origin
Sweden
