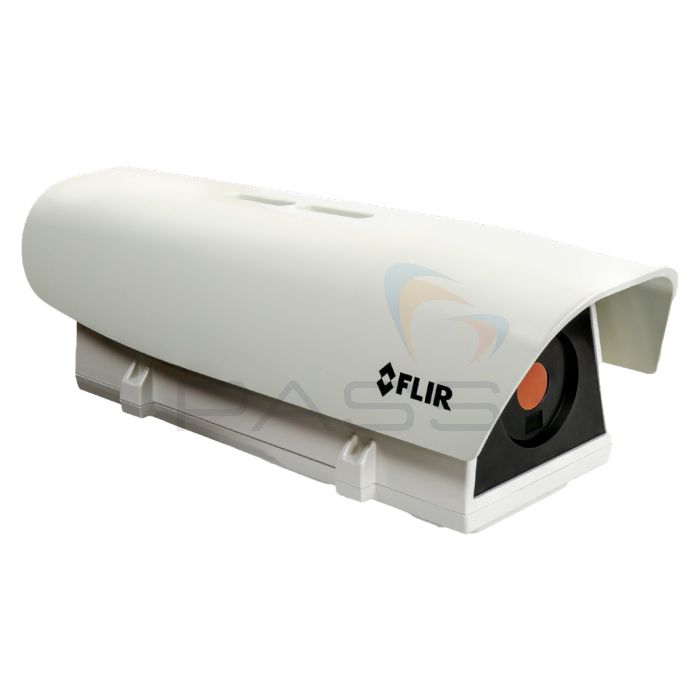

Flir A700f Advanced Thermal Smart Sensor Camera, DFOV 42° + 24° (640 x 480px)
- Built-in analytics and alarms
- -30°C to 50° temperature range
- ONVIF S compliant
SKU
85912-0301
MPN
85912-0301
The FLIR A700f has a 640 × 480 thermal resolution (307,200 pixels) with a 12 µm detector pitch, delivering detailed imaging supported by FSX technology.
It measures temperatures from -20 °C to 2000 °C with an accuracy of ±2 °C or ±2% of reading. It has multiple lens options, including 14°, 24°, 42°, 80° and FlexView dual FOV, with motorised focus.
The camera streams thermal and visual video at 30 Hz, supports PoE (IEEE 802.3af/at), and integrates easily via ONVIF, Ethernet/IP, Modbus TCP, MQTT, and REST API.
Key Features
- HMI/SCADA-compatible using Modbus TCP client & server and Ethernet/IP
- ONVIF S compliant and integrates into standard security VMS and NVR solutions, including control of pan/tilts
- Ready for the fourth industrial revolution, with support for widely adopted IIoT protocols such as MQTT and REST API, in both XML and JSON format
- Improve definition of areas of interest or object curvatures using polygon, polyline, and line functions
- Integrate into industrial automation systems using analogue and digital control thanks to superior I/O control via Modbus TCP Client and Server, Ethernet IP, REST API, and MQTT
- Conserve network bandwidth with compressed radiometric streaming to FLIR Atlas SDK polarised glasses
- Provides superior image quality with 640 x 480 (307,200 pixels) thermal resolution
- Increase contrast in even-temperature scenes and enhance edge detail in low light using FSX® (Flexible Scene Enhancement) technology
- Ensure temperature accuracy of objects at different distances using remote motor focus via Ethernet communication
- FLIR A700f cameras provide communication and control options that allow easy integration into existing monitoring systems
- Tailor thermal imaging monitoring to meet any site’s unique requirements
- Deliver consistent, accurate results in harsh conditions
Technical Information
Specification
| System Overview | A500f | A700f |
|---|---|---|
| IR Resolution | 464 x 348 (161,472 pixels) | 640 x 480 (307,200 pixels) |
| Visual Resolution | 1280 x 960 (not applicable for the 80° version) | |
| Detector Pitch | 17µm | 12µm |
| MSX & FSX | Yes (MSX is not available for the 80° version) | |
| Available Field of Views | 14°, 24°, 42°, 80, 14°, 24°, 42°, 80°, FlexView® dual FOV (24°/14°), FlexView® dual FOV (42°/24°) lenses | |
| Focal Plane Array [FPA] | Uncooled microbolometer | |
| Focus | Motorised focus, manual & on-command automatic (scene contrast method) | |
| Image Frequency | 30 Hz | |
| Image Storage | Records up to 100 FLIR radiometric JPEGs Storage as a function of: alarm, scheduling, or user interaction (camera web) |
|
| Measurement | ||
| Object Temperatures | -20°C to 120°C (-4°F to 248°F) 0°C to 650°C (32°F to 1202°F) 300°C to 1500°C (572°F to 2732°F) |
-20°C to 120°C (-4°F to 248°F) 0°C to 650°C (32°F to 1202°F) 300°C to 2000°C (572°F to 3632°F) |
| Accuracy | ±2°C (±3.6°F) or ±2% of reading, for ambient temperature 15°C-35°C (59°F-95°F) and object temperature above 0°C (32°F) | |
| Readout | Measurement results: Ethernet/IP, Modbus TCP server (pull), Modbus TCP client (push), MQTT (push), REST API (GET/POST), measurements and still image (radiometric JPEG, visual 640 x 480, visual 1280 x 960), web interface | |
| Automatic Hot/Cold Detection | Max./min. temperature value and position shown within the box, polygon, line or polyline | |
| Measurement Presets | Yes | |
| Measurement Tools | 10 spot meters, 10 boxes or mask polygons, 3 Deltas (difference any value/reference/external lock), 2 isotherms (above/below/interval), 2 iso-coverage, 1 reference temperature, 2 lines, 1 polyline, Maximum 12 measurement functions at the same time | |
| Web Interface | Yes | |
| Multi Streaming | Yes | |
| Alarm | ||
| Alarm Functions | On any selected measurement function digital in internal camera temperature |
|
| Alarm Output | Digital out, e-mail (SMTP) (push), Ethernet/IP, file transfer (FTP) (push), Modbus TCP server (pull), MQTT (push), query over RESTful API (pull), store image or video | |
| Encoding | Video stream: H.264, MPEG4, or MJPEG Radiometric stream: Compressed JPEG-LS over RTSP |
|
| Digital Input/Output | ||
| Digital I/O Connector Type | The terminal block inside the housing | |
| Digital I/O Isolation Voltage | 500 VRMS | |
| Digital Input Purpose | NUC, NUC disable, alarm | |
| Digital Inputs | 2x optoisolated, Vin(low)= 0-1.5 V, Vin(high)= 3-25 V | |
| Digital Output Purpose | As a function of alarm, output to an external device, Fault (NC) | |
| Digital Outputs | 3x optoisolated, 0-48 V DC, max. 350 mA; solid-state opto relay 1x dedicated as Fault output (NC) |
|
| Cable Glands | 1x M12, 1x M16, 1x M20 | |
| Ethernet | ||
| Ethernet | For control, result, image, and power | |
| Ethernet Communication | TCP/IP socket-based FLIR proprietary | |
| Ethernet Connector Type | IP67 rated RJ45 port | |
| Ethernet Interface | Wired | |
| Ethernet Power | Power over Ethernet, PoE IEEE 802.3af class 3 Ethernet/IP, IEEE 1588, Modbus TCP, MQTT, SNMP, TCP, UDP, SNTP, RTSP, RTP, HTTP, HTTPS, ICMP, IGMP, sftp (server), FTP (client), SMTP, DHCP, MDNS (Bonjour), uPnP, PoE injector sold separately | |
| Environmental Data | ||
| Operating Temperature Range | -30°C to 50°C (-22°F to 122°F) | |
| EMC | EN50130-4, EN61000-6-3, EN55022 Class B, FCC Part. 15 Class B | |
| Encapsulation | IP67 | |
| Physical Data | ||
| Size [L x W x H] | 51.5 cm x 17.7 cm x 22.9 cm (20.28 in x 6.97 in x 9.02 in) | |
| Housing Material | Aluminium housing, sun-shield in ABS | |
| System Features | ||
| Heater | 8W, electronically controlled, T_ON 20°C ±2°C (68°F ±4°F), T_OFF 23°C ±2°C (73.4°F ±4°F) | |
| ONVIF Conformance | Yes. ONVIF Profile S | |
| Window Transmission | Automatic, based on window temperature | |
| Power Consumption | 30W PoE, PoE+, Type 2. IEEE 802.3af, IEEE 802.3at/PoE Plus | |
