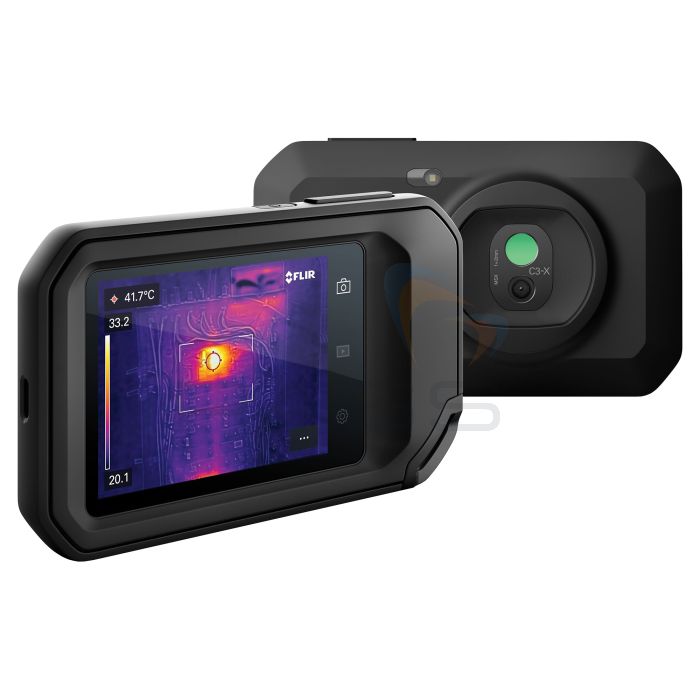

Small and simple-to-use, the FLIR C3-X Compact Thermal Imaging Camera is an infrared- and visible-light-imaging camera suitable for inspecting buildings, HVAC/R, and electrical systems. This professional troubleshooting tool features an integrated LED torch, 3.5” touchscreen display, and optional Wi-Fi connectivity.

There are two versions of the FLIR C3-X Compact Thermal Imaging Camera available: one with Wi-Fi and one without Wi-Fi. Please see the table below for further information.

SKU Title Wi-Fi
90501-0101 FLIR C3-X without Wi-FI No
90501-0201 FLIR C3-X with Wi-Fi Yes

Thermal & Optical Imaging

The FLIR C3-X Compact Thermal Imaging Camera has an IR resolution of 128 x 96px and a 70mK thermal sensitivity. It can measure temperatures between -20°C and +300°C to an accuracy of ±3°C/3%. It is also equipped with a 5MP digital camera.

The FLIR C3-X Compact Thermal Imaging Camera offers four imaging modes:

  • Visual
  • Infrared
  • Picture-in-Picture
  • MSX®: overlays digital details onto the thermal image to improve picture clarity; this makes it easier and quicker for the thermographer to identify the source of faults

In addition to this, the FLIR C3-X Compact Thermal Imaging Camera features four selectable thermal colour palettes: Iron, Grey, Rainbow and Rainbow HC.

Images can be saved to the FLIR C3-X Compact Thermal Imaging Camera’s onboard memory which has the capacity to store 5000 images. Saved images may be downloaded to a PC via a USB interface for analysis and organisation into reports using the thermographer’s preferred software, such as FLIR’s Thermal Studio Software.

Ergonomic & Easy-to-Use

This compact camera fits easily inside a pocket or crowded tool bag. The FLIR C3-X Compact Thermal Imaging Camera is rugged: it has an ingress protection rating of IP54 and has been drop tested from 2m.

Moreover, the FLIR C3-X Compact Thermal Imaging Camera’s simple user-interface and 3.5” touchscreen display ensure that it is easy to operate.

OPTIONAL Wi-Fi

The FLIR C3-X Compact Thermal Imaging Camera with Wi-Fi can connect to the FLIR Ignite™ Cloud to which images may be uploaded for storage, organisation and back-up. Thermographers can also add written annotations to images to highlight and explain detected issues. Images may be shared with clients via a password-protected link sent in an email.

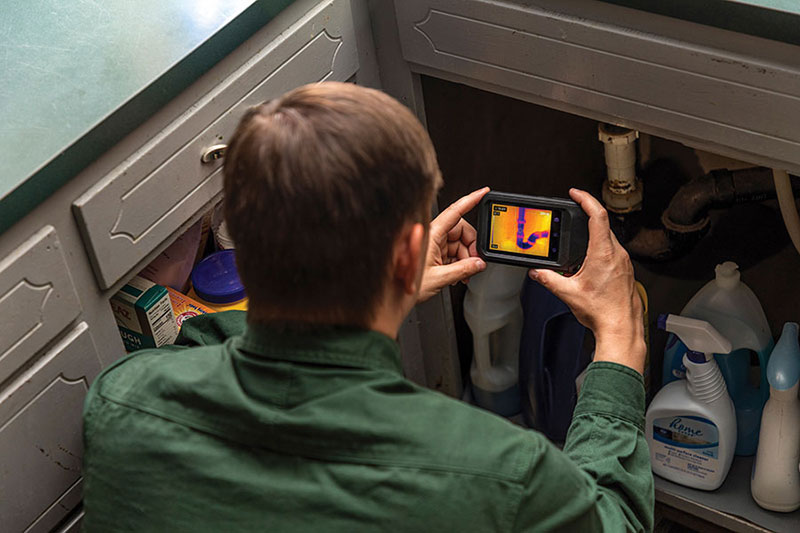

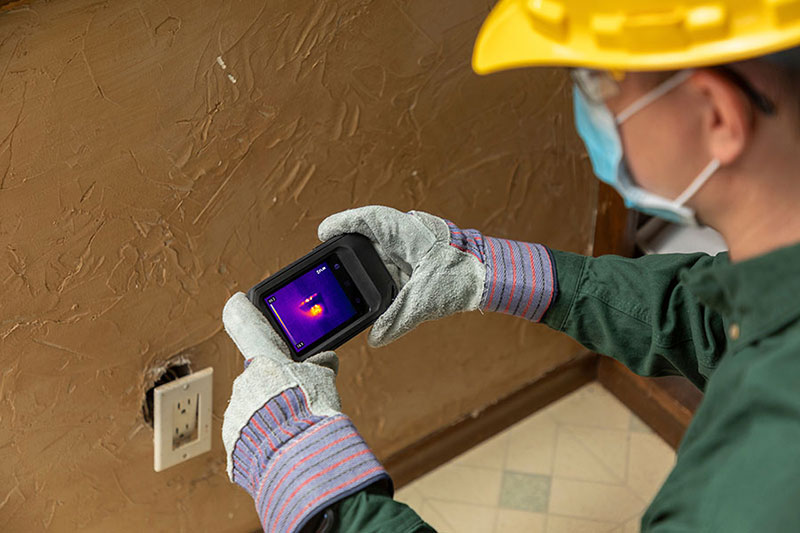

The FLIR C3-X Compact Thermal Imaging Camera is a pocket-sized, professional inspection tool ideal for locating hot fuses, air leaks and plumbing issues.

FLIR C3-X Compact Thermal Imaging Camera Key Features

  • Pocket-sized infrared-imaging and visible-light camera
  • Inspect buildings, HVAC/R, and electrical systems
  • Professional troubleshooting tool

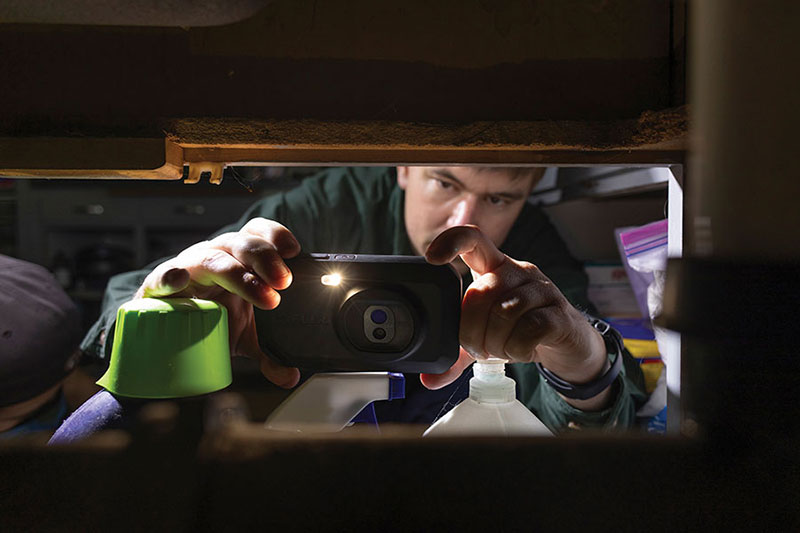

  • Integrated LED torch
  • 3.5” touchscreen display
  • OPTIONAL Wi-Fi
  • Two models available: one with Wi-Fi and one without Wi-Fi
  • IR sensor resolution: 128 x 96px
  • Thermal sensitivity: 70mK
  • Temperature range: -20°C to +300°C
  • Accuracy: ±3°C/3%
  • Built-in 5MP digital camera
  • MSX® imaging mode: overlays digital details onto thermal images
  • Visual imaging mode
  • Infrared imaging mode
  • Picture-in-Picture imaging mode
  • Four selectable thermal colour palettes: Iron, Grey, Rainbow and Rainbow HC
  • Onboard memory: capacity 5000 images
  • USB interface
  • Small: easily fits in a pocket or crowded tool bag
  • Drop-tested from 2m
  • IP54
  • Simple user-interface
  • OPTIONAL Wi-Fi provides FLIR Ignite™ Cloud Connectivity
  • Save images to the FLIR Ignite™ Cloud
  • Add annotations to images
  • Send clients a password-protected link via email
  • A small, simple-to-use infrared imager
  • Ideal for finding hot fuses, air leaks and plumbing issues

What’s Included?

  • FLIR C3-X Compact Thermal Imaging Camera
  • Wrist Strap
  • Lanyard
  • USB Cable
  • Pouch
  • Printed Documentation
Part Code

FLIR C3-X Compact Thermal Imaging Camera Technical Specifications

Overview C3-X
IR sensor 128 × 96 (12,288 pixels)
Thermal sensitivity/NETD <70 mK
Field of view (FOV) 53.6°
Minimum focus distance Thermal: 0.1 m (3.94 in)
MSX®: 0.3 m (11.8 in)
Image frequency 8.7 Hz
Focus Focus free
Spectral range 8–14 µm
Screen size 3.5 in
Digital camera 5 MP
Digital camera focus Fixed
Image Presentation
Image adjustment Automatic level and span
Manual level and span
Image modes Infrared image
Visual image
MSX (Embossed visual details on thermal image)
Picture-in-picture (IR area on visual image)
Gallery Thumbnails and custom folder structure
Colour palettes Iron
Grey
Rainbow
Rainbow HC
Auto orientation Yes
Touch screen Capacitive touch
Measurement & Analysis
Object temperature range -20 to 300°C (-4 to 572°F)
Accuracy 0 to 100°C (32 to 212°F): ±3°C (±5.5°F)
100 to 300°C (212 to 572°F): ±3%
[Ambient temp. 15 to 35°C (59 to 95°F) and object
temp. above 0°C (32°F)]
Measurement functions Spot
Box with max./min
Measurement correction Emissivity; matt/semi-matt/semi-gloss + custom value
Reflected apparent temperature
Atmospheric compensation
Image Storage
Storage media Internal memory and onboard FLIR Ignite cloud connectivity (with Wi-Fi)
Image storage capacity >5000 images
Image file format Standard JPEG, 14-bit measurement data included
Communication & Connectivity
Wi-Fi 802.11 a/ac/b/g/n (2.4 and 5 GHz)
USB USB 2.0, Type-C connector
Bluetooth® PAN
Image upload Directly upload images to FLIR Ignite cloud library and services
Additional Information
Battery type Rechargeable built-in Lithium-ion battery
Battery operating time 4 hours
Charging system USB-C (1 A)
Charging time 2 hours
External power operation 5 V, USB-C
Operating temperature range -10 to 50°C (14 to 122°F)
Storage temperature range -40 to 70°C (-40 to 158°F)
Encapsulation Camera housing and lens: IP54 (IEC 60529)
Drop test Designed for 2 m (6.6 ft)
Weight (including battery) 0.19 kg (0.42 lb)
Size (L × W × H) 138 × 84 × 24 mm (5.4 × 3.3 × 0.94 in)
Tripod mounting (built-in) UNC ¼”-20
