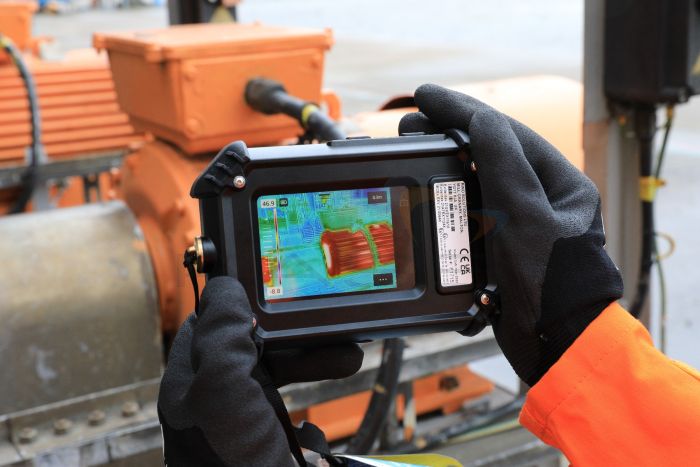

Compact and certified for use in Zone 2/22 explosive environments, the Teledyne FLIR Cx5 ATEX Hazardous Location Thermal Camera is ideal for conducting safe inspections of electrical and mechanical equipment in hazardous locations. It features a 160 x 120px IR resolution, an MSX function, 1-touch level/span, impact-resistant lens, and built-in LED work-light. Integrated Wi-Fi means images can be uploaded to the FLIR Ignite Cloud and allows the Teledyne FLIR Cx5 to be synchronised with FLIR’s Thermal Studio analysis and reporting functions. Annotations may be added to images and reports, making it easy to explain findings. The Teledyne FLIR Cx5 ATEX Hazardous Location Thermal Camera is an ergonomic, easy-to-use thermal imager specifically for use in explosive environments.
Teledyne FLIR Cx5 ATEX Hazardous Location Thermal Camera Key Features
- Rugged, reliable thermal camera certified for use in explosive environments
- Certified for use in Zone 2/22 hazardous areas
- Suitable for use in water treatment facilities and chemical, oil, and gas plants
- Safely inspect mechanical and electrical equipment in hazardous locations
- Makes T-class surveys quick and easy
- Eliminates the need for hot work permits
- IR resolution: 160 x 120px (19 200 pixels)
- Provides accurate temperature measurements of nearby targets
- MSX function
- 1-touch Level/Span
- 3.5-inch touchscreen
- Wi-Fi connectivity
- Upload images to the FLIR Ignite Cloud
- Synchronise with FLIR’s Thermal Studio analysis and reporting software
- Annotate images and reports
- Conforms to restricted breathing and dust protection standards
- Pocket-sized
- Impact-resistant lens
- Built-in LED work light
- Ergonomic, easy-to-use thermal imager specifically for explosive environments
What’s Included?
- Teledyne FLIR Cx5 ATEX Hazardous Location Thermal Camera
Datasheets
Notes & Other
Teledyne FLIR Cx5 ATEX Hazardous Location Thermal Camera Technical Specifications
IR sensor | 160 × 120 (19,200 pixels) |
Thermal sensitivity/NETD | <70 mK |
Field of view (FOV) | 54° × 42° |
Minimum focus distance | Thermal: 0.1 m (3.94 in) |
MSX®: 0.3 m (11.8 in) | |
Image frequency | 8.7 Hz |
Focus | Focus free |
Spectral range | 8–14 µm |
Screen size | 3.5 in |
Visual camera | 5 MP |
Digital camera focus | Fixed |
Image Presentation | |
Image adjustment | Automatic level and span |
Manual level and span | |
1-Touch level and span | |
Image modes | Infrared image |
Visual image | |
MSX (Embossed visual details on thermal image) | |
Picture-in-picture (IR area on visual image) | |
Gallery | Thumbnails and custom folder structure |
Colour palettes | Iron |
Gray | |
Rainbow | |
Arctic | |
Lava | |
Rainbow HC | |
Screen rotation | Yes |
Touchscreen | Capacitive touch |
Measurement & Analysis | |
Object temperature range | -20 to 400°C (-4 to 752°F) |
Accuracy | At ambient temp. 15 to 35°C (59 to 95°F) and object temp. above 0°C (32°F) |
0 to 100°C (32 to 212°F): ±5°C (±9°F) | |
100 to 400°C (212 to 752°F): ±5% | |
Measurement functions | Spot |
Box with max./min. | |
Measurement correction | Emissivity; matt/semi-matt/semi-gloss + custom value |
Reflected apparent temperature | |
Atmospheric compensation | |
Image Storage & Streaming | |
Storage media | Internal memory and onboard FLIR Ignite cloud connectivity (with Wi-Fi) |
Image storage capacity | >5000 images |
Image file format | Standard JPEG, 14-bit measurement data included |
Communication & Connectivity | |
Wi-Fi® | 802.11 a/ac/b/g/n (2.4 and 5 GHz) |
USB | USB 2.0, Type-C connector |
Bluetooth® | PAN |
Image upload | Directly upload images to FLIR Ignite cloud library and services |
Additional Information | |
Dimensions (L x W x H) | 9.3 x 3.9 x 3.7 in (235 x 100 x 95 mm) |
Battery type | Rechargeable built-in Lithium-ion battery |
Battery operating time | 4 hours |
Charging system | USB-C (1 A) |
Charging time | 2 hours |
External power operation | 5 V, USB-C |
Operating temperature range | -10°C to 50°C (14°F to 122°F) |
Storage temperature range | 40°C to 70°C (-40°F to 158°F) |
Encapsulation | Camera housing and lens: IP54 (IEC 60529) |
Drop test | Designed for 2 m (6.6 ft) |
Weight (including battery) | 0.69 kg (1.52 lb) |
Size (L × W × H) | 168 mm × 112 mm × 42 mm (6.6 in × 4.4 in × 1.7 in) |
Tripod mounting (built-in) | UNC ¼"-20 |
*Certifications | EN EIC 60079-0: 2018 |
EN EIC 60079-31: 2014 | |
EN EIC 60079-15: 2019 | |
IEC 60079-15: 2017 | |
IEC 60079-0: 2017 | |
IEC 60079-31: 2013 |
Reviews
SKU | 89401-0203 |
---|---|
Manufacturer Part Code | 89401-0203 |
Country of Origin | Estonia |
