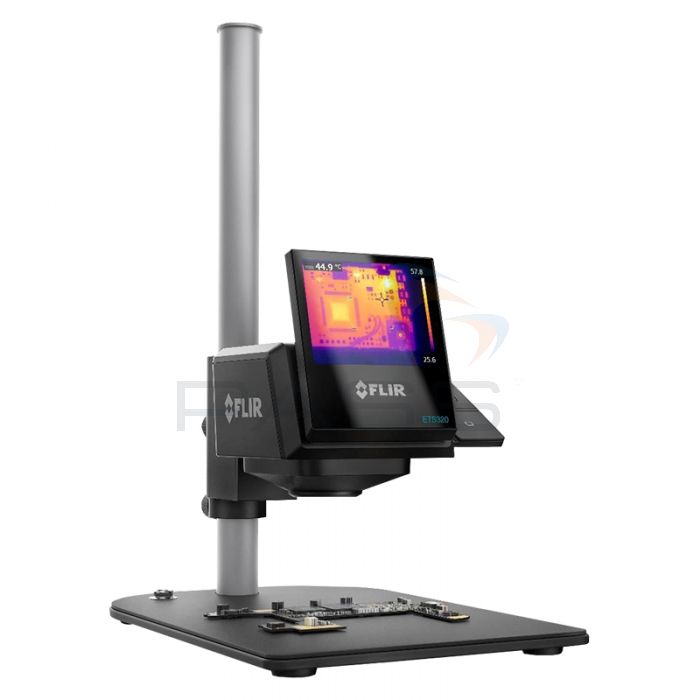

FLIR ETS320 Thermal Imaging Camera for Electronic/Component Testing

SKU
63950-1001
Rating:
0%
(0)
£2,748.00 £2,290.00
2 in Stock
Free UK Delivery*
Price Match Guarantee & Advice

Need a more reliable way of testing components and electronics? With the FLIR ETS320, performing comprehensive thermal studies on these items just got a whole lot easier.

Consisting of a high precision, high resolution thermal camera attached to a microscope-style stand, this kit includes everything you'll need for performing extensive studies on electronics and components, helping you to reduce testing time and improve overall product efficiency.

FLIR ETS320 Thermal Imaging Camera for Electronics Testing Key Features

  • Benchtop-based stand with integrated FLIR precision thermal camera for thermal studies of electronic components and printed circuit boards
  • Take the guesswork out of thermal testing – view the entire electronic at once and easily find hot spots and potential points of failure
  • Highly sensitive thermal detector can detect thermal shifts as low as <0.06°C
  • Wide temperature measurement range – quantifies heat generation and thermal dissipation up to 250°C
  • High quality thermal detector with resolution of 320 x 240 pixels (76,800 pixels in image)
  • Fully radiometric analysis – every pixel in the image is assigned its own temperature reading, allowing you to hone in on specific points for detailed analysis
  • Hands-free operation – simply set the stand/mount to the height you need and start viewing in thermal
  • High accuracy temperature measurements within ±3°C – ideal for quality assurance and factory acceptance of printed circuit boards
  • Crisp, 3” LCD display for viewing thermal findings in real time
  • Supports full radiometric IR video streaming to a PC using USB, or non-radiometric colourised video
  • Capture thermal images with a simple button press and transfer to PC for further analysis
  • Variable emissivity from 0.1 to 1.0 to cater for use on different types of surface
  • Area and spotmeter measurement modes with MAX/MIN temperature
  • Powered by lithium ion rechargeable batteries with average battery life of 4 hours
  • Use the FLIR ONE App to share thermal images and video to the social media platform of your choice
  • Adjustable colour palettes

What’s Included?

This kit includes all of the following:

  • ETS320 Camera System
  • Mount
  • Microscope-Style Stand
  • Power Supply
  • USB Cable
  • FLIR Tools+ Software Package

Part Code63950-1001

FLIR ETS320 Technical Specifications

System Overview

IR Resolution

320 x 240 pixels (76,800 total)

Detector Type

Uncooled microbolometer

Spectral Range

7.5 to 13.0µm

Thermal Sensitivity/NETD

<0.06°C

Field of View (FOV)

45 x 34°
40mm x 50mm @ fixed focus distance

Fixed Focus Distance

70mm ±10mm

F-Number

1.5

Spot Size @ Min Focus

170µm

Image Frequency

9Hz

Measurement and Analysis

Accuracy

±3°C (±3.6°F) or ±3% of reading for ambient temperature 10 to 35°C (50 to 95°F)

Spotmeter

Centre spot

Area

Box with MAX/MIN

Emissivity Correction

Variable from 0.1 to 1.0

Emissivity Table

Table of pre-defined materials

Reflected Apparent Temperature Compensation

Automatic, based on input of reflected temperature

Image Storage

Image File Formats

Standard radiometric JPEG, 14-bit measurement data included

Video Streaming

Radiometric IR Video Streaming

Full dynamic to PC (FLIR Tools/FLIR Tools+ Software needed) using USB

Non-Radiometric IR Video Streaming

Uncompressed colourised video using USB

Data Communication Interfaces

Interfaces

USB micro: Data transfer to and from PC and Mac devices

Power System

Battery Type

Lithium-ion rechargeable, charged in camera

Battery Operating Time

Approx 4 hours at 25°C (77°F) ambient temperature and typical use

Charging Time

2.5 hours to 90% capacity

Additional Specifications

Display

3 inch, 320 x 240 pixel colour LCD

Operating Temperature Range

10 to 40°C (50 to 104°F)

Storage Temperature Range

-40 to 70°C (-40 to 158°F)

Directives and Regulations

Battery Directive 2006/66/EC
EMI/EMC Directive 2014/30/EU
WEEE 2012/19/EC
RoHS2 Directive 2011/65/EC
FCC 47 CFR Part 15 Class B Subpart B
REACH Regulation EC 1907/2006

Encapsulation, Shock, Vibration

IP 40 (IEC 60529)

Camera Weight (Including Battery)

1.8kg (4.0lbs)

Camera Size (L x W x H)

22 x 15 x 30cm (8.7 x 5.9 x 11.8 inches)
