Teledyne FLIR GF77 Gas Find Uncooled IR Thermal Camera – Choice of Lens

SKU
GF77
Rating:
0%
(0)
Reward Points (?)

Logged in, worth £599.90, read more.

:
59990
£29,995.20 £24,996.00
Free UK Delivery* Delivery Options

UK - Zone 1 Orders

England, Wales & most of Scotland.

Free 3-7 Working Day1
Orders Over £99 & Selected Items

Standard 2-7 Working Day1
From £1.99

Tracked 2-3 Working Day
£5.49

Express Next Working Day
£7.99

Priority Next Working Day
£14.99 (Pre-Noon)
£19.99 (Pre-10:30am)

Saturday & Sunday
£14.99 (Pre-Noon)

UK - Zone 2 Orders

Highlands, Islands & Northern Ireland.

Free 3-7 Working Day1
Selected Items (Calculated at Checkout)

Standard 2-7 Working Day2
From £1.99

Tracked 2-3 Working Day
£9.99

International Orders

Delivery is calculated at checkout.


Note: Next day delivery is not guaranteed for orders placed after 3:00pm. Prices Ex VAT.

1, 2 See delivery page for more details.

Advice & Support
Price Match Request
Teledyne FLIR Logo

Teledyne FLIR Rewards

Buy a FLIR Get a Free Gift. Spend £1000 or more on any qualifying Teledyne FLIR product between the 1st June 2021 and the 31st August 2021 to receive a FREE Teledyne FLIR tool of your choice (UK & EU only, see T&Cs below). Existing purchases made on or after the 1st of June 2021 are still eligible for this offer. See Offer details

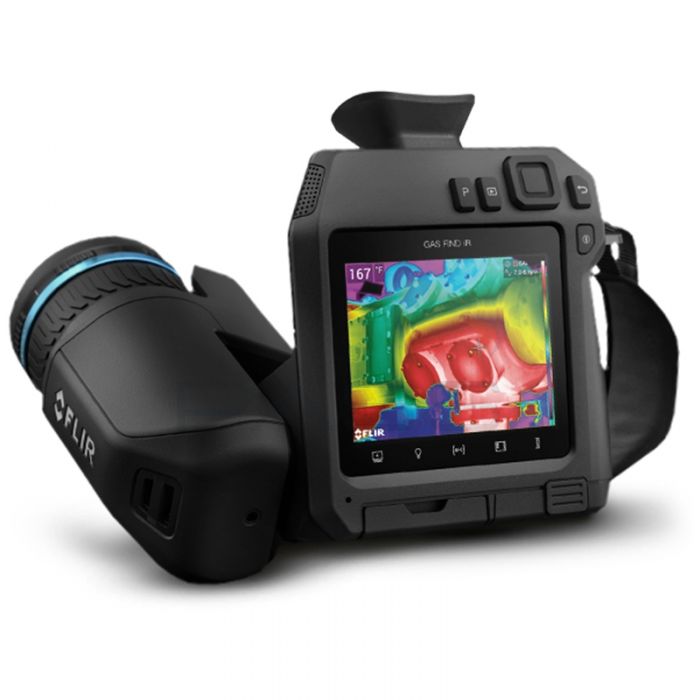

The Teledyne FLIR GF77 Gas Find Uncooled IR Thermal Imaging Camera can be used to detect methane (CH4), sulphur hexafluoride (SF6), ethylene (C2H4) and ammonia (NH3) leaks (lens dependent). This decreases or eradicates the downtime for conduct repairs, increases productivity, reduces any potential loss of earnings, and ensures that all workers are kept safe.

The FLIR GF77 Gas Find Uncooled IR Thermal Imaging Camera can be used to inspect industrial and natural gas plants, as well as points along the gas supply chain, and liquified natural gas terminals and storage units. This instrument is also of particular use to renewable energy producers.

Applications of the FLIR GF77 Gas Find Uncooled IR Thermal Imaging Camera vary depending on the lenses purchased with it. There are two types of lenses available:

  • LR: low-range lenses have a spectral range of 7 to 8.5µm making them suitable for detecting methane, nitrous oxide, propane, sulphur dioxide, R-134a, and R-152a
  • HR: high-range lenses have a spectral range of 9.5 to 12µm making them suitable for detecting sulphur hexafluoride, ammonia, and ethylene

Please see the table below for further information regarding which lenses are supplied with each option.

SKU LR Lens/ Lenses HR Lens/ Lenses
85201-0102 25º
85202-0102 25º
85203-0102 25º 25º
85204-0102 6º & 25º
85205-0102 6º & 25º
85206-0102 25º  6º & 25º
85207-0102 6º & 25º 25º
85208-0102 6º & 25º 6º & 25º



This ergonomic IR camera with extensive reporting features is specifically optimised for detecting gases; it is able to detect and trace small leaks that are often missed by traditional TVAs or ‘sniffers’. For a quick introduction to FLIR GF77 Camera, please see the following video.

Thermal Technology

The FLIR GF77 Gas Find Uncooled IR Thermal Imaging Camera features an IR resolution of 320 x 240-pixels and is equipped with laser-assisted autofocus for accurately establishing the target area.

False negatives occurring because gases have been absorbed into other wavelengths are prevented as the FLIR GF77's lenses ensure it is spectrally filtered for specific gases. This means that the FLIR GF77 Gas Find Uncooled IR Thermal Imaging Camera can be used to scan components and trace gas emissions to their sources more effectively, thereby ensuring that repairs can be conducted efficiently. This works to reduce the amount of downtime required to conduct necessary repairs whilst simultaneously improving the safety of the workforce.

Additionally, the FLIR GF77 Gas Find Uncooled IR Thermal Imaging Camera can be set to High-sensitivity Mode (HSM), a video processing technique that highlights plume movements and thereby increases gas detectability.

Further to this, the FLIR GF77 Gas Find Uncooled IR Thermal Imaging Camera is also equipped with a Viewfinder function allowing the user to continue to trace gas in bright conditions.

The user can view thermal footage (and therefore the detected gases) via the FLIR GF77 Gas Find Uncooled IR Thermal Imaging Camera’s 4-inch LCD display. Using the 1-Touch Level/ Span feature the user can improve the contrast between the background scene and the detected gas. Moreover, this instrument features six colour palettes (Iron, Grey, Rainbow, Arctic, Lava, and Rainbow HC) and four imaging modes, allowing the user to tailor the FLIR GF77 Gas Find Uncooled IR Thermal Imaging Camera to suit the application. It includes the following imaging modes:

  • Infrared
  • Visual: view digital images captured using the integrated 5MP visible-light camera with an integrated LED photo/ video lamp
  • MSX®: digital images are overlaid onto IR images to improve the clarity and detail of the thermal picture
  • Picture-in-Picture: view a particular point on the image in greater detail without losing the overall field-of-view

Furthermore, the FLIR GF77 Gas Find Uncooled IR Thermal Imaging Camera features an integrated Area Measurement Tool for determining tank levels and volumes. This thermal camera is also METERLiNK/ Bluetooth enabled allowing it to interface with a headset and external sensors, improving the ease and comprehensiveness with which inspections can be performed.

Reports

In addition to a METERLiNK/ Bluetooth interface, the FLIR GF77 Gas Find Uncooled IR Thermal Imaging Camera features a Wi-Fi interface allowing the user to share and stream thermal footage. This proves useful when making collaborative decisions and allows the operator to transfer the data required to create comprehensive reports.

The FLIR GF77 Gas Find Uncooled IR Thermal Imaging Camera also features a Drag-and-Drop feature for generating reports.

Thermal data can be saved to the FLIR GF77 Gas Find Uncooled IR Thermal Imaging Camera’s removable 8GB SD card. This camera also features customisable work folders, GPS tagging and a voice annotation feature for managing and organising thermal footage.

Ergonomic Design

The FLIR GF77 Gas Find Uncooled IR Thermal Imaging Camera’s responsive, graphic interface and scratch-resistant touchscreen facilitates quick, easy access to the required features and settings without lagging.

The physical design of the FLIR GF77 Gas Find Uncooled IR Thermal Imaging Camera is based on FLIR’s award-winning T-series. It is optimised to be comfortable- and easy-to-use over prolonged periods of time and in various light conditions. To this end, it includes a 180° rotating optical block and an eyepiece designed for use in direct sunlight.

The Teledyne FLIR GF77 Gas Find Uncooled IR Thermal Imaging Camera is a cost-effective, comprehensive and customisable visible and infrared camera. It is ideal for protecting workers and ensuring the continuation of production by detecting gas leaks before significant damage is incurred.

Teledyne FLIR GF77 Gas Find Uncooled IR Thermal Imaging Camera Key Features

  • Designed to detect a range of gases
  • Available with HR and LR lenses (see table above)
  • LR: low-range lenses, spectral range 7 to 8.5µm, for detecting methane, nitrous oxide, propane, sulphur dioxide, R-134a, and R-152a
  • HR: high-range lenses, spectral range 9.5 to 12µm, for detecting sulphur hexafluoride, ammonia, and ethylene
  • Detect gas leaks to reduce or eradicate downtime required for repairs
  • Increase productivity
  • Reduce loss of earnings
  • Ensure that workers are kept safe
  • Inspect industrial and natural gas plants, points along the natural gas supply chain, and liquified natural gas terminals and storage units
  • Of particular use to renewable energy producers
  • Ergonomic IR camera with extensive reporting features
  • Able to detect and trace small leaks that are often missed by traditional TVAs or ‘sniffers’
  • IR resolution: 320 x 240-pixels
  • Laser-assisted autofocus
  • Spectrally-filtered for specific gases (lens dependent): prevents false negatives caused by gases being absorbed into other wavelengths
  • Scan components and trace gas emissions to the source allowing repairs to be performed more effectively and efficiently
  • High-sensitivity Mode (HSM): a video processing technique that highlights plume movements in order to increase gas detectability
  • Viewfinder function: allows the user to continue tracing gas in bright conditions
  • 4-inch LCD display
  • 1-Touch Level/ Span feature: improve the contrast between the background scene and the detected gas
  • Six colour palettes: Iron, Grey, Rainbow, Arctic, Lava and Rainbow HC
  • Four imaging modes
  • Infrared mode
  • Visual mode
  • 5MP visible-light camera with an integrated LED photo/ video lamp
  • MSX® mode: digital images are overlaid onto IR images to improve the clarity and detail of the thermal picture
  • Picture-in-Picture mode: view a particular point on the image in greater detail without losing the overall field-of-view
  • Area Measurement Tool for determining tanker levels and volumes
  • METERLiNK/ Bluetooth enabled
  • Wi-Fi connectivity
  • Stream or share thermal footage via Wi-Fi
  • Transfer data to create reports via Wi-Fi
  • Drag-and-Drop feature for generating reports
  • Save information to the 8GB removable SD Card
  • Customisable work folders
  • GPS tagging
  • Voice annotation feature
  • Responsive, graphic interface and scratch-resistant touchscreen for accessing features, functions and settings without lagging
  • Based on the design of FLIR’s award-winning T-series
  • 180° rotating optical block
  • Eyepiece designed for use in direct sunlight
  • A cost-effective, comprehensive and customisable visible and infrared camera
  • Ideal for protecting workers and ensuring the continuation of production by detecting gas leaks before significant damage is incurred

What’s Included?

  • FLIR GF77 Gas Find Uncooled IR Thermal Imaging Camera
  • Your Choice of Lens/ Lenses
  • 2x Batteries
  • Battery Charger with Power Supply
  • Eyecup
  • Neck and Lens Straps
  • Hard Transport Case
  • Lanyards
  • Front and Rear Lens Caps
  • Lens Cleaning Cloth
  • Lens Cap Front
  • Lens Cap Front and Rear (only for extra lenses)
  • Power Supply
  • Printed Documentation
  • 8GB SD Card
  • USB 2.0 A to USB Type-C Cable
  • USB Type-C to HDMI and PD Adapter Cable
  • USB Type-C to USB Type-C Cable
Part Code

Teledyne FLIR GF77 Gas Find Uncooled IR Thermal Imaging Camera Technical Specifications

  Low-Range (LR) Lens High-Range (HR) Lens
Primary gases detected Methane, nitrous oxide,
propane, sulfur dioxide,
R-134a and R-152a
Sulfur hexafluoride, ammonia,
ethylene
Lens spectral range 7 to 8.5 µm 9.5 to 12 µm
Gas sensitivity (NECL) CH4: <100 ppm × m
N2O: <75 ppm × m
C3H8: <400 ppm × m
SO2: <30 ppm × m
R-134a: <20 ppm × m
R-152a: <100 ppm × m
(ΔT = 10°C, Distance = 1 m)
SF6: <1 ppm × m
C2H4: <20 ppm × m
NH3: <20 ppm × m
(ΔT = 10°C, Distance = 1 m)
Infrared resolution 320 × 240 (76,800 pixels)
Thermal sensitivity (NETD) 25° lens: <25 mK at 30°C (86°F)
6° lens: <40 mK at 30°C (86°F)
UltraMax® (super-resolution) Yes
Field of view (FOV) 25° lens: 25° × 19°
6° lens: 6.4° × 4.9°
Focal length 25° lens: 18 mm (0.71 in)
6° lens: 74 mm (2.9 in)
f/number 25° lens: 1.04
6° lens: 1.35
Focus modes Continuous LDM, One-shot LDM, One-shot contrast, Manual
Minimum focus distance 25° lens: 0.3 m (0.98 ft)
6° lens: 5 m (16.4 ft)
Minimum focus distance with MSX® 25° lens: 0.65 m (2.1 ft)
6° lens: N/A
Spatial resolution (IFOV) 25° lens: 1.4 mrad/pixel
6° lens: 0.36 mrad/pixel
Lens identification Automatic
Digital zoom 1–6× continuous
Detector type and pitch Uncooled microbolometer, 25 µm
Measurement and Analysis
Temperature ranges and
accuracy
Range -20 to 70°C
(-4 to 158°F): ±3°C (±5.4°F)
Range -20 to 70°C
(-4 to 158°F): ±2°C (±3.6°F)
Range 0 to 250°C (32 to 482°F):
• 0 to 100°C (32 to 212°F): ±3°C (±5.4°F)
• 100 to 250°C (212 to 482°F): ±3%
Range 100 to 500°C (212 to 932°F): ±3%
For ambient temperature 15 to 35°C (59 to 95°F)
Spotmeter and area 3 each in live mode
Measurement presets No measurement, Center spot, Hot spot, Cold spot, User preset 1,
and User preset 2
Image Presentation and Frame Rate
Image frequency 30 Hz
Display 4”, 640 × 480 pixels (VGA) touchscreen LCD with auto-rotation
Digital camera 5 MP with built-in LED photo/video lamp
Colour palettes Iron, Gray, Rainbow, Arctic, Lava, Rainbow HC
Image modes Infrared, visual, MSX, picture-in-picture, gallery
Image adjustment Automatic, Automatic maximum, Automatic minimum, High
Sensitivity Mode (HSM), Manual, 1-Touch Level/Span
Image annotations Voice, Text, Image sketch (IR only), Sketch (from touchscreen),
GPS Automatic image tagging
Image Storage
Storage media Removable SD card
Image file format Standard JPEG, measurement data included. Infrared-only mode
Time lapse (Infrared) 10 seconds to 24 hours (infrared)
Remote control operation Via USB or over Wi-Fi connected to FLIR Thermal Studio
Video Recording and Streaming
Radiometric IR video recording Real-time radiometric recording (.csq)
Non-radiometric IR or visual
video
H.264 to memory card
Radiometric IR video
streaming
Compressed, over UVC
Non-radiometric IR video
streaming
H.264, MPEG-4 over Wi-Fi; MJPEG over UVC or Wi-Fi
Communication interfaces USB 2.0, Bluetooth, Wi-Fi, DisplayPort
Additional Specifications
Battery Rechargeable Li-ion battery, >4 hours at 25°C (68°F) with typical use
Operating temperature range -15°C to 50°C (5°F to 122°F)
Storage temperature range -40°C to 70°C (-40 to 158°F)
Shock/Vibration/ Encapsulation 25 g (IEC 60068-2-27) / 2 g (IEC 60068-2-6) / IP54
Camera weight with lens
(including battery)
1.54 kg (3.4 lb) w/ 25° lens
1.77 kg (3.9 lb) w/ 6° lens
Camera size (L × W × H) Camera with 25° lens:
• Lens vertical: 150.5 × 201.3 × 84.1 mm (5.9 × 7.9 × 3.3 in)
• Lens horizontal: 150.5 × 201.3 × 167.3 mm (5.9 × 7.9 × 6.6 in)
Camera with 6° lens:
• Lens vertical: 204.6 × 201.3 × 84.1 mm (8.1 × 7.9 × 3.3 in)
• Lens horizontal: 150.5 × 201.3 × 167.3 mm (5.9 × 7.9 × 6.6 in)
