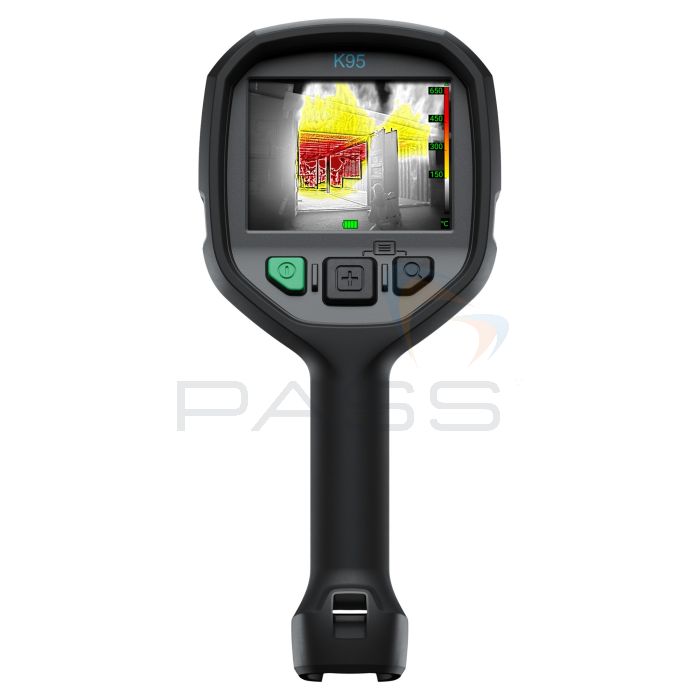

FLIR K95 Firefighting Thermal Imaging Camera
- Five video modes
- Improved efficiency in Search & Rescue
- Situational Awareness during fire attack
SKU
18706-0601
MPN
18706-0601
The FLIR K95 is a tactical firefighting thermal imaging camera with 640 × 480 thermal resolution and a 95° field of view. The wide-angle field of view captures more of the surrounding area than earlier K series models, reducing the need for constant scanning and panning while improving awareness of room layouts, escape routes, movement paths and fire development.
Key Features
- Unique wide 95° FOV
- More of the scene in every glance
- Improved efficiency in Search & Rescue
- Situational Awareness during fire attack
- 640 x 480 resolution detector
- Single gain: stay focused without freezing the image
- Including new Search and new Detection modes
- Flir Responder App enabled
- Camera configuration
- Media (video + still image) management
- Live video
- Streaming
- OTA updates
- Video modes
- Basic:
- Colourisation: 150 to 650°C (300 to 1200°F)
- Main mode for fire attacks and life-saving operations
- Search:
- Colourisation starting at 80°C (175°F)
- Tactical mode before, during and after fire with earlier colourisation
- Valuable during size-up to locate fire and detect lower temperatures
- Detection:
- Highlights significantly hotter areas in a red gradient
- Includes hot and cold spot trackers
- Optimised for locating hot and cold areas
- Useful for quick detection during search and rescue and overhaul
- High Heat:
- Colourisation: 250 to 650°C (500 to 1200°F)
- Similar to TI-Basic mode, but with a higher temperature starting point
- Useful for offensive operations when later colourisation is desired.
- White hot
- Enhances heat convection visibility, useful in training, high-heat environments, and for colourblind users
- Useful when no colourisation is needed.
- Basic:
- Power management:
- New compact battery format
- Design in line with the new K-Series family
- No tool required for K75, K85 & K95
- Works with the new K-Series in-truck charger
- 4 hours operating time
What's Included?
- Infrared camera
- Battery (2 pcs.)
- Battery charger
- Carabiner strap
- Power supply
- Printed documentation
- Retractable lanyard
- USB cable
Technical Information
Specification
| IR Resolution | 640 × 480 |
|---|---|
| Display | 4" LCD, 640 × 480, 60 Hz, backlit |
| Object Temperature Range | Single range solution operating: -20°C to 650°C (-4°F to 1202°F) |
| Image Modes | Basic, Search, Detection, High Heat, White Hot |
| Contrast Optimisation | Flexible Scene Enhancement (FSX®) |
| Detector Type | Focal plane array (FPA), uncooled microbolometer |
| Field of View (FOV) | 95° × 74° |
| Image Frequency | 30 Hz |
| Image Modes | Basic, Search, Detection, High Heat, White Hot |
| IR Resolution | 640 × 480 |
| Non-Radiometric IR Video Recording | MPEG4 to internal flash memory |
| Non-Radiometric IR Video Streaming | Uncompressed colourised video using USB and MPEG-4 Stream over Wi-Fi to Flir Responder app |
| Pitch | 12 µm |
| Spectral Range | 7.5 µm to 14 µm |
| Thermal Sensitivity/NETD | <70 mK |
| Zoom | 2x digital zoom |
| Drop | 2 m (6.6 ft) on concrete floor (IEC 60068-2-31) |
| EMC | EN 301 489-1 RED EN 301 489-17 EN 55032 Class B (Emission) EN 55035 (Immunity) EN 61000-6-2 Immunity according to Industrial EN 61000-6-3 380-480 MHz EN 61000-6-3 800-960 MHz EN 60945 Maritime equipment FCC 47 CFR part 15 B, cla |
| Encapsulation | IP67 (IEC 60529) |
| Humidity (Operating and Storage) | IEC 60068-2-30/24 h 95 |
| Magnetic Fields | EN 61 000-4-8, Test level 5 for continuous field (severe industrial environment) |
| Operating Temperature Range | -20°C to 60°C (-4°F to 140°F) 150°C (302°F): 15 min 260°C (500°F): 5 min |
| Radio Spectrum | ETSI EN 300 328 ETSI EN 301 893 FCC 47 CFR part 15 RSS-247 |
| Relative Humidity | 95% relative humidity, 25°C to 40°C (77°F to 104°F) non-condensing |
| Shock | 25 g (IEC 60068-2-27) |
| Storage Temperature Range | -40°C to 85°C (-40°F to 185°F) |
| Vibration | 2 g (IEC 60068-2-6) |
| Battery Capacity | 5.8 Ah, at 20°C to 25°C (68°F to 77°F) |
| Battery Operating Time | Approx. 4 hours @ 25°C (77°F) ambient temperature and typical use |
| Battery Type | Li-Ion |
| Battery Voltage | 3.7 V |
| Charging System | Desktop 2-bay charger Optional in-truck charger |
| Charging Temperature | 0°C to 45°C (32°F to 113°F) |
| Charging Time | ≤3 h to capacity, enough for 3 h of operation |
| Safety [Power Supply] | CE/EN/UL/CSA/PSE 60950-1 IEC 62368 |
| Object Temperature Range | Single range solution operating: -20°C to 650°C (-4°F to 1202°F) |
| Display | 4" LCD, 640 × 480, 60 Hz, backlit |
| Bluetooth | Bluetooth v. 5.0 EDR + BLE *PAN |
| File Formats | Standard JPEG |
| Image Storage | Camera and Flir Responder app |
| Image Storage Capacity | 200 files in total (N.B. The total number of files varies depending on the number of saved video clips) |
| Interface | Update via OTA (Wi-Fi using the FLIR Responder app) Legacy support for updates from PC and data transfer to and from PC |
| Storage Media | Internal flash memory |
| USB | USB-C |
| WiFi | IEEE 802.11 b/g/n (2.4 GHz) |
