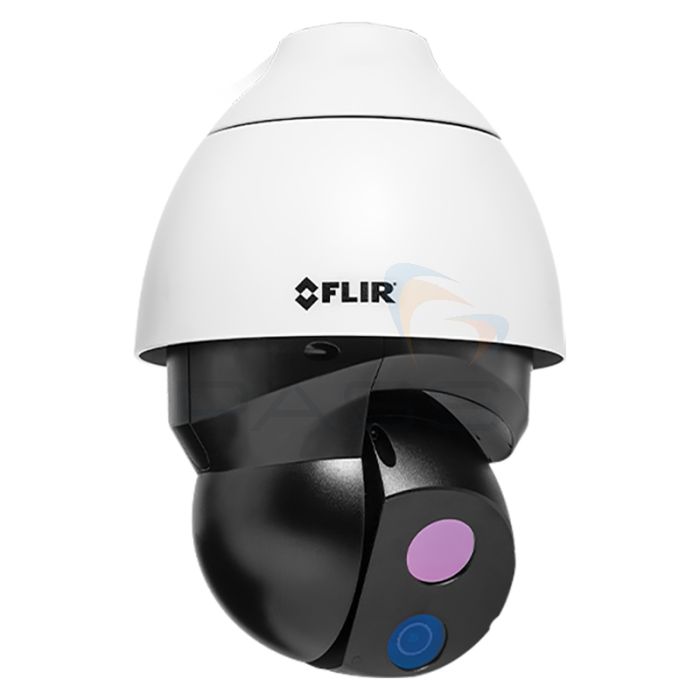

The FLIR Saros DM-Series introduces eight new VGA and QVGA resolution options to FLIR's multi-sensor security lineup. Capable of capturing video in complete darkness, bright sunlight, and through smoke, dust, or light fog, the DM-Series provides superior perimeter protection in the toughest lighting and environmental conditions. A built-in 4K visible light camera operates alongside the thermal sensor to capture minute details in low-light conditions.
The DM-Series also integrates with the FLIR United Video Management System (UVMS), as well as other ONVIF-compliant video management systems. This gives users complete control over the all-new dual-sensor viewing mode, alarm functions, and fully programmable preset tour.
Available in eight high-performance lenses and a choice of frame rate.
Superior thermal image quality and a built-in 4K visible camera offer versatile multi-spectral surveillance.
Choose from a wide range of lenses along with VGA and QVGA sensors for optimal detection ranges in challenging conditions.
The DM-Series is engineered to reduce exposure to remote security attacks.
| SPECIFICATIONS | |||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Thermal Sensor & Optics | |||||||||||||||||||||||||||||||||||||||||
| Array Format (NTSC) | 320 x 256, 640 x 512 | ||||||||||||||||||||||||||||||||||||||||
| Thermal Sensitivity | <50 mK@ 25°C, F/1.0 | ||||||||||||||||||||||||||||||||||||||||
| Detector Type | Long-life, uncooled VOx microbolometer | ||||||||||||||||||||||||||||||||||||||||
| Pixel Pitch | 12 µm | ||||||||||||||||||||||||||||||||||||||||
| Thermal Frame Rate | NTSC: 30 Hz PAL: 25 Hz / 8.3 Hz |
||||||||||||||||||||||||||||||||||||||||
| Optical Characteristics |
|
||||||||||||||||||||||||||||||||||||||||
| E-Zoom | Continuous E-Zoom to 4x | ||||||||||||||||||||||||||||||||||||||||
| Spectral Range | 7.5 µm to 13.5 µm | ||||||||||||||||||||||||||||||||||||||||
| Focus Range | Athermalized, Focus-Free | ||||||||||||||||||||||||||||||||||||||||
| Video | |||||||||||||||||||||||||||||||||||||||||
| Video Compression | Thermal: One channel of H.264 & M-JPEG Visible: Two independent channels of H.264 & M-JPEG |
||||||||||||||||||||||||||||||||||||||||
| Streaming Resolution | Thermal: QVGA to VGA Visible: VGA to 4K |
||||||||||||||||||||||||||||||||||||||||
| Thermal Image Settings | Auto AGC, Dynamic Detail Enhancement (DDE), Brightness, Sharpness, Contrast | ||||||||||||||||||||||||||||||||||||||||
| Thermal AGC Region of Interest (ROI) | Default, Presets, and User definable to ensure optimal image quality on subjects of interest | ||||||||||||||||||||||||||||||||||||||||
| Image Uniformity Optimisation | Automatic Flat Field Correction (FFC) - Thermal and Temporal Triggers | ||||||||||||||||||||||||||||||||||||||||
| System Integration | |||||||||||||||||||||||||||||||||||||||||
| Ethernet | Yes | ||||||||||||||||||||||||||||||||||||||||
| Network APIs | FLIR SDK, FLIR CGI, ONVIF Profile S | ||||||||||||||||||||||||||||||||||||||||
| Digital I/O | Input: Four sets / 5V 10 kΩ pull up Output: Two sets / relay output, 120 mA max at 24 VDC / 24VAC |
||||||||||||||||||||||||||||||||||||||||
| Audio I/O | Bi-Directional Audio - connection - Terminal block | ||||||||||||||||||||||||||||||||||||||||
| Network | |||||||||||||||||||||||||||||||||||||||||
| Supported Protocols | IPV4, HTTP, UPnP, DNS, NTP, RTSP, RTCP, RTP, TCP, UDP, ICMP, IGMP, DHCP, ARP | ||||||||||||||||||||||||||||||||||||||||
| Pan/Tilt Performance | |||||||||||||||||||||||||||||||||||||||||
| Pan Angle | Continuous 360° | ||||||||||||||||||||||||||||||||||||||||
| Tilt Angle | -10° - 190° | ||||||||||||||||||||||||||||||||||||||||
| Programmable Presets | 256 | ||||||||||||||||||||||||||||||||||||||||
| General | |||||||||||||||||||||||||||||||||||||||||
| Dimensions | Diameter: 207 mm (8.15 in) Height: 300 mm (11.8 in) | ||||||||||||||||||||||||||||||||||||||||
| Weight | 3.8 Kg (8.38 lbs.) | ||||||||||||||||||||||||||||||||||||||||
| Input Voltage | 24VAC, Universal PoE Injector | ||||||||||||||||||||||||||||||||||||||||
| Power Consumption | 24 VAC, 2.36 A, 57 VA 55 VDC (PoE), 0.62 A, 34 W |
||||||||||||||||||||||||||||||||||||||||
| Environmental | |||||||||||||||||||||||||||||||||||||||||
| IP Rating (Dust & Water Ingress) | IP66 | ||||||||||||||||||||||||||||||||||||||||
| Operating Temperature Range | -40°C to 55°C (-40°F to 131°F) | ||||||||||||||||||||||||||||||||||||||||
| Storage Temperature Range | -40°C to 85°C (-40°F to 185°F) | ||||||||||||||||||||||||||||||||||||||||
| Humidity | 10 - 90% | ||||||||||||||||||||||||||||||||||||||||
| Shock | IEC 60068-2-27 | ||||||||||||||||||||||||||||||||||||||||
| Vibe | IEC 60068-2-64 | ||||||||||||||||||||||||||||||||||||||||
| Compliance & Certifications | |||||||||||||||||||||||||||||||||||||||||
| FCC Part 15 (Subpart B, Class A) | |||||||||||||||||||||||||||||||||||||||||
| CE Marked | |||||||||||||||||||||||||||||||||||||||||
| RoHS | |||||||||||||||||||||||||||||||||||||||||
| IP66 | |||||||||||||||||||||||||||||||||||||||||
| ONVIF Profile S | |||||||||||||||||||||||||||||||||||||||||
| WEEE (Waste Electrical and Electronic Equipment Directive) | |||||||||||||||||||||||||||||||||||||||||
| IEC 62368 | |||||||||||||||||||||||||||||||||||||||||
| Visible Light 4K Camera | |||||||||||||||||||||||||||||||||||||||||
| Sensor Type | Full HD 4K 1/1.8”-type Exmor R CMOS |
||||||||||||||||||||||||||||||||||||||||
| E-Zoom | Continuous E-Zoom to 8x | ||||||||||||||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||||||||||||||
| Cyber Security | |||||||||||||||||||||||||||||||||||||||||
| 802.1x | |||||||||||||||||||||||||||||||||||||||||
| TLS/HTTPS | |||||||||||||||||||||||||||||||||||||||||
| User authentication | |||||||||||||||||||||||||||||||||||||||||
| Access control via firewall | |||||||||||||||||||||||||||||||||||||||||
| User credentials with policy enforcement | |||||||||||||||||||||||||||||||||||||||||
| Digest authentication | |||||||||||||||||||||||||||||||||||||||||
