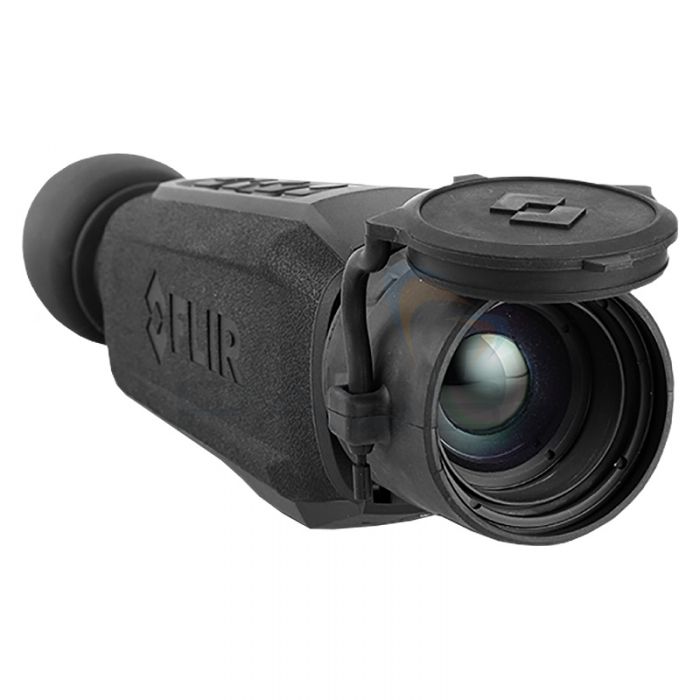

The FLIR Scion PTM Professional Thermal Monocular is a handheld, IP67-rated, high-performing thermal imaging monocular designed to provide superior thermal surveillance. This thermal imager has been optimised for law enforcement professionals, as such, it features geotagged video recording and encrypted thermal video streaming. The FLIR Scion PTM Professional Thermal Monocular can be used to execute and record law enforcement operations such as pursuits, evidence recovery, and search and rescue missions. Please see the video below for a brief overview of FLIR’s range of Scion Thermal Cameras.

The FLIR Scion PTM Professional Thermal Monocular is powered by a FLIR Boson™ thermal core which provides advanced thermal processing. Furthermore, its refresh rate of 60Hz enables the capture of smooth, unwavering footage. The user can choose to view thermal footage in a range of selectable thermal palettes: White Hot, Black Hot, Iron Bow, Rainbow, Graded Fire and Lava.

The FLIR Scion PTM Professional Thermal Monocular can be used in all light conditions including total darkness, glaring light and lingering haze. This IR monocular also includes a Picture-in-Picture mode which allows the user to zoom in on distant details without losing the overall field-of-view (FOV). This allows the user to focus on targets or team members without compromising his/her peripheral awareness.

There are four versions of the FLIR Scion PTM Professional Thermal Monocular available. These models vary in regards to their lens sizes and fields-of-view; please see the table below for further details.

Model PTM166 PTM336 PTM366 PTM466
Lens Size 14mm 25mm 25mm 36mm
FOV 31°× 24° 9°× 6.5° 18°× 13° 12°× 9°
IR Resolution  640 × 480px 320 × 240px 640 × 480px 640 × 480px



FLIR Scion PTM Professional Thermal Monocular models with a 25mm or 36mm lens (PTM336, PTM366 and PTM466), are equipped with a manual focus ring which allows the user to achieve higher levels of clarity.

This IR monocular supports encrypted thermal video streaming: it can transmit encrypted thermal footage to a command centre via a wireless network. Moreover, the FLIR Scion PTM Professional Thermal Monocular is compatible with FLIR TruWITNESS®, allowing it to be linked with smart sensors in the air or on the ground. This provides comprehensive situational awareness and real-time centralised information at the command centre which is particularly useful for public safety agencies.

The FLIR Scion PTM Professional Thermal Monocular is a rugged, handheld and real-time thermal surveillance tool that can be used to provide law enforcement professionals with superior situational awareness protecting them from unseen threats. It can also be used to coordinate and document law enforcement and search and rescue operations.

FLIR Scion PTM Professional Thermal Monocular Key Features

  • Handheld, IP67-rated, high-performing thermal imaging monocular
  • Provides superior thermal surveillance
  • Optimised for law enforcement professional
  • Geotagged video recording
  • Encrypted thermal imaging streaming
  • Execute and record law enforcement operations such as pursuits, evidence recovery, and search and rescue missions
  • FLIR Boson™ thermal core provides advanced thermal processing
  • Refresh rate: 60Hz
  • Selectable thermal palettes: White Hot, Black Hot, Iron Bow, Rainbow, Graded Fire and Lava
  • Can be used in all light conditions, e.g. total darkness, glaring light and lingering haze
  • Picture-in-Picture mode: zoom-in on distant details without losing the overall FOV
  • Four models available with different lens sizes and FOVs
  • The PTM336, PTM366 and PTM466 models feature a manual focus ring allowing users to achieve higher levels of clarity
  • Stream encrypted thermal footage to a command centre via a wireless network
  • Compatible with FLIR TruWITNESS®: links the monocular with air and ground smart sensors to provide comprehensive situational awareness and real-time centralised information
  • Provides superior situational awareness
  • Protects law enforcement professionals from unseen threats
  • Coordinate and document law enforcement and search and rescue operations

What’s Included?

  • Your Choice of FLIR Scion PTM Professional Thermal Monocular
  • Battery Tray
  • 6x CR123 Batteries
  • USB-C Cable
  • Black MOLLE Pouch
  • Quick Start Guide
Part Code

FLIR Scion PTM Professional Thermal Monocular Technical Specifications

Model PTM166 PTM336 PTM366 PTM466
Core Technology BOSON 12 µm VOx Microbolometer
Detector Resolution 640 × 480 320 x 240 640 × 480 640 × 480
Lens System 14 mm 25mm 36 mm
Field of View (H × W) 31°× 24 9°× 6.5° 18°× 13° 12°× 9°
Optical Magnification .7x 2.6x 1.3x 2.0x
Digital Zoom 1X | 2X | 4X | 8X 1X | 2X | 4X 1X | 2X | 4X | 8X
Refresh Rate 60 Hz
Video Recording Yes
Focus Manual
Eye Relief 16 mm
Display Quad-VGA (1280x960) High definition display
Display Focus Manual
Features
Colour palettes White Hot; Black Hot; Iron Bow; Rainbow; Graded Fire; Lava
Viewing Modes Scouting, Picture-in-Picture, Lock Span mode
Picture While Recording (PWR) Yes
Media capturing 2 GB Internal storage / Optional micro SD™ card (up to 128 GB)
GPS Yes
Real-Time Clock (RTC) Yes
Date/Time Stamp Yes
Auto Power OFF Yes
Magnetic Compass Yes
Accelerometer Yes
Interfacing
USB Type USB-C; Power In; Video Out; Video and Image File Transfer
Power 6x CR123A 3V Lithium Battery / Up to 4.5 Hours at 20°C
or
Rechargeable battery pack / Up to 10 Hours at 20°C
Communications
Bluetooth™ BLE 4.1+
Wi-Fi Video Steaming (ONVIF Discovery)
NFC Yes
Physical
Weight Unit only : 452g
With Batteries (6): 565g
Unit only: 567g
With Batteries (6): 680g
Unit only: 680g
With Batteries (6): 793g
Size 227 × 76.8 × 60.5mm
(9 × 3 × 2.4 in)
239 × 76.8 × 60.5mm
(9.4 × 3 × 2.4 in)
278 x 77 x 73mm
(10.9 x 3.03 x 2.87)
Color (Housing) Black
Mounting ¼-20 Tripod Mount
Country of
Origin
USA
Included in Box SCION, Battery tray, 6xCR123, USB-C cable,
Black MOLLE pouch, Quick Start Guide
