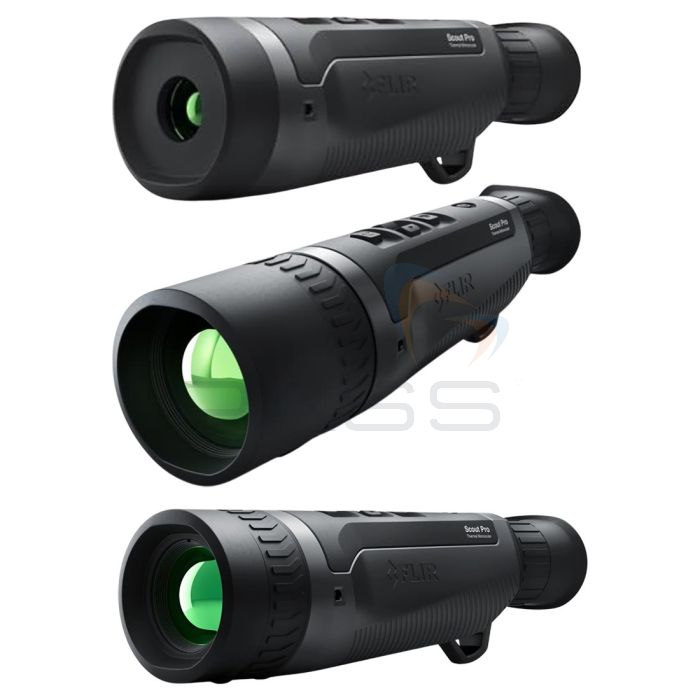

FLIR Scout Pro Thermal Monocular
- Pro, Pro II & Pro III models
- Fixed or manual focus
- 19 mm, 35mm & 50mm focal length
SKU
FLIR-SCOUT-PRO
The Scout Pro delivers in fast-paced operations where situational awareness is key. The 32° field of view and a fixed-focus 19 mm lens provide human detection up to 500 metres, even in complete darkness.
For extended reach without sacrificing field coverage, the Scout Pro II is the balanced choice. It features a manual-focus 35 mm lens, an 18° field of view, and delivers thermal detection of up to 1000 metres. This model is suitable for officers, coastguards, and security teams operating in rugged terrain or coastal zones.
At the top of the range, the Scout Pro III provides maximum clarity and detection capability. It includes a manual-focus 50 mm lens, 12° field of view, and an impressive 1500-metre detection range. Designed for border surveillance, evidence gathering, and marine patrol.
| Field of View | Focal Length | Focus | Human Detection Range | |
|---|---|---|---|---|
| Scout Pro | 32° | 19 mm | Fixed focus | 500 m (550 yds) |
| Scout Pro II | 18° | 35 mm | Manual focus | 1000 m (1100 yds) |
| Scout Pro III | 12° | 50 mm | Manual focus | 1500 m (1600 yds) |
FLIR Scout Pro Series | Thermal Monoculars for Law Enforcement & Search & Rescue
Key Features
- Wireless video streaming functionality through the Scout Pro App
- Easy-to-use menu, requires minimal training
- Rugged and reliable with an IP67 rating and 2 m (6 ft 7 in) drop protection
- Fixed focus (Scout Pro) is convenient for intense usage, manual focus (Scout Pro II and III) for flexibility
- First Responders
- Surveillance
- Evidence Gathering
- Active Pursuit
- Compact and easy to carry, the thermal monocular includes a carry case with belt loops
- Four colour modes
- Identify objects in various environments
- Real-time video streaming boosts team coordination
- Long-Range Detection, detect humans at distances up to 1500m
- Wide field of view lens for faster area sweeps, ensuring comprehensive surveillance coverage
What's Included?
- Handheld thermal monocular
- USB-C cable
- Standard eyecup
- Asymmetrical eyecup
- Pouch
FLIR Scout Pro | Unboxing the Thermal Imaging Monocular for Law Enforcement
FLIR Scout Pro ⏐ Thermal Monocular for Law Enforcement Professionals
How Thermal Monoculars Help Law Enforcement & Public Safety | FLIR Scout Pro
How do thermal imaging cameras make police officers' lives safer and easier? | FLIR Scout Pro
Technical Information
Specification
| Scout Pro | Scout Pro II | Scout Pro III | |
|---|---|---|---|
| Field of View | 32° | 18° | 12° |
| Focal Length | 19 mm | 35 mm | 50 mm |
| F-number | f/1.0 | f/1.0 | f/1.1 |
| Focus | Fixed focus | Manual focus | Manual focus |
| Human Detection Range | 500 m (550 yds) | 1000 m (1100 yds) | 1500 m (1600 yds) |
| Minimum Near Focus Distance | 4 m (13 ft) | 2 m (6 ft 7 in) | 3 m (9 ft 10 in) |
| Frame Rate | 30 Hz | ||
| Display Frame Rate | 60 Hz | ||
| Spectral Range | 7.5 - 13.5 μm | ||
| Pixel Pitch | 17 μm | ||
| Thermal Sensitivity, NETD | <38 mK @ 30°C (86°F) | ||
| Resolution | 640 x 480 Vox Microbolometer | ||
| Image Processing | FLIR DDE 2.0 | ||
| User Interface | |||
| Zoom | 2x, 4x 6x, 8x | ||
| Colour Palettes | White Hot, Black Hot, Sepia, Heat | ||
| Image Presentation | |||
| Built-in Display | XGA 1024 x 768 | ||
| Video | XGA 1024 x 768 | ||
| Power | |||
| Battery Life | Up to 6 h | ||
| Battery Type | Internal Li-ion cell | ||
| Charging Time | 2 h 80% capacity | ||
| Physical | |||
| Colour (Housing) | Black | ||
| Drop Rating | 2 m (6 ft 7 in) | ||
| IP Rating | IP67, 1/2 hour submersible under 1 m | ||
| Operating Temperature | -15°C to 45°C (5°F to 113°F) | ||
| Size (L x W x H) | 19.2 x 6.4 x 6.4 cm (11 x 6 x 3 in) |
21.2 x 6.4 x 6.4 cm (8.33 x 2.51 x 2.51 in) |
23.2 x 6.4 x 6.4 cm (8.33 x 2.51 x 2.51 in) |
| Weight (Including Battery) | 498 g (1.098 lbs) |
660 g (1.455 lbs) |
745 g (1.642 lbs) |
| Tripod Mounting | UNC ¼"-20 | UNC ¼"-20 | UNC ¼"-21 |
| Communication & Storage | |||
| Media Gallery | Scout Pro App | ||
| Storage Media | Embedded flash | ||
| Image Modes | IR | ||
| File Formats | Standard JPEG | ||
| Video Recording | Yes | ||
| Non-radiometric IR Video Recording | MPEG4 AVC (ITU-T H.264) |
||
| Storage Capacity | 16 GB | ||
| Video Streaming | Yes | ||
| Non-radiometric IR Video Streaming | WiFi/RTSP (MPEG4 AVC (ITU-T H.264)) |
||
| USB Streaming | UVC (YUV422 no overlay) |
||
| Wireless Connectivity | |||
| Bluetooth | BLE | ||
| Streaming | Wi-Fi | ||
Document Downloads
FLIR Scout Pro Thermal Monocular Datasheet
FLIR Scout Pro Series Thermal Monocular Datasheet
FLIR Scout Pro Thermal Monocular User Manual
