As an introductory offer, you will also receive a 3-month free trial of FLIR Thermal Studio Pro and Route Creator plugin Software, after the free trial ends, customers can renew by purchasing a full 1-year subscription or they will automatically be reverted to the new Thermal Studio Starter version free of charge.
Built on 50 years of innovation, the FLIR T1020 produces HD quality thermal images, allowing more to be seen than ever before.
Equipped with a 1024 x 768-pixel thermal detector, the T1K also includes industry-leading thermal sensitivity of < 0.02°C at +30°C, helping to pinpoint even the most minor differences in temperature levels.
The detail of thermal images captured on the T1020 has further enhanced thanks to FLIR MSX, a unique mode that blends together thermal and digital images to significantly enhance details. The camera also includes an UltraMAX mode which scales the image to resolution of 3.1MP.
This thermal camera is packed full of additional functions such as programmable buttons, a large size, fast-response touchscreen, continuous autofocusing and much, much more.
Free FLIR Total Protect Package
- Extended warranty & comprehensive protection
- Enhanced value without additional costs
- Priority support and services
- Service freight covered
- 1x discounted FLIR Total Care service
- Use of a loan camera when your thermal camera is sent for its scheduled service
- Fast-tracked support and service
- 10% off additional FLIR Care services
An extended warranty that covers your camera against material defects for five years - for FREE, to find out more information please visit our blog.
FLIR T1020 HD Thermal Camera Key Features
- HD quality thermography - 1024 x 768 pixel thermal resolution
- Exceptionally high thermal sensitivity - < 0.02°C at +30°C(2x better than industry standard)
- UltraMax mode scales resolution up to 3.1MP
- MSX mode - blend together thermal and digital images with enhanced detail
- FLIR OSX Precision HDIR Optical system - see more from further away (up to 2x the distance)
- Continuous autofocus mode
- Advanced OSX optical system for using the camera in extreme conditions
- Unique optical path removes the effects of heat sources from outside the camera's field of view
- Programmable buttons - quicker access to your most commonly-used functions
- Radiometric video recording at full resolution
- One-click Rapid Report generation
- 4.3" display with resolution of 800 x 480 pixels
- Touchscreen
- Selectable colour palettes
- Removable SD card for easy transfer
- Built-in LED light

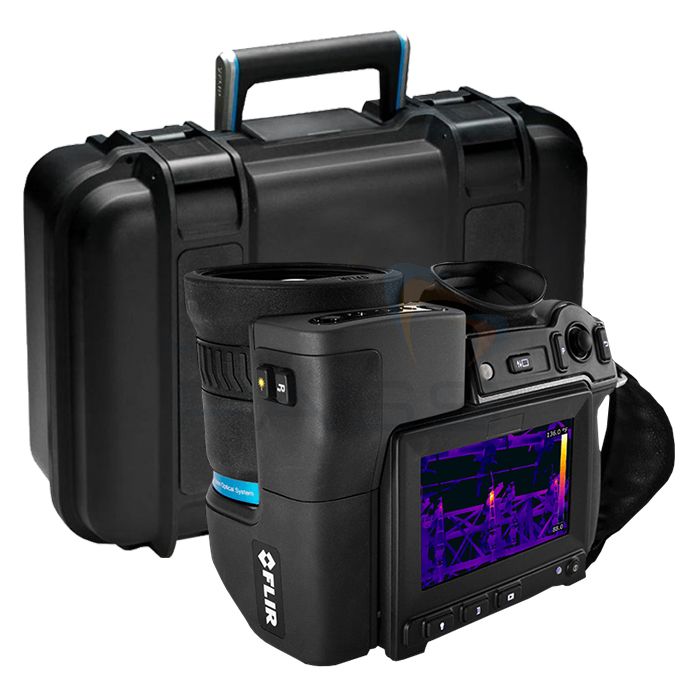

What's Included?
- FLIR T1020 HD Thermal Camera
- Comes with a choice of lens
- 2 x Batteries
- Battery Charger
- HDMI-HDMI Cable
- Hard Transport Case
- Large Eyecup
- Lens Cap
- Neck Strap
- Power Supply + Multi Plugs
- USB Cable (Standard A to Micro-B)
- Calibration Certificate
- FLIR Thermal Studio Pro Software (3 Month Subscription)
- FLIR Route Plugin for the FLIR Thermal Studio Pro Software (3 Month Subscription)
- User Documentation on CD-ROM
- Printed Documentation
- Bluetooth Headset
- SD Card
FLIR T1020 Technical Specifications
Imaging and Optical Data | |
---|---|
IR Sensor | 1024 x 768 (786, 432 measurement pixels) |
Thermal Sensitivity/NETD | <0.02°C at +30°C |
Lens Choices | 12, 28, 45°, 3x close-up |
Minimum Focus Distance | 0.2m (0.66ft) to 0.8m (2.13ft), depending upon the lens |
Image Frequency | 30Hz |
Spectral Range | 7.5 to 14μm |
4.3" Display | 800 x 480 pixels |
Auto Orientation | Yes |
Touch Screen | Yes |
Image Presentation Modes | |
Thermal Image | Yes |
Visual Image | Yes |
UltraMax | Unique super resolution process quadruples pixel count up to 3.1MP |
MSX | Embosses visual details on full resolution thermal image, for clear text and location identification |
Gallery | Yes |
Measurement | |
Accuracy | ±2°C (±3.6°F) or 2%, whichever is greater, at 25°C (77°F) nominal |
Measurement Analysis | |
Measurement Tools | 10 spotmeters, 5+5 areas (boxes, circles) with min/max/average |
Emissivity Correction | Variable from 0.01 to 1.0 or selected from materials list |
Measurements Correction | Emissivity, reflected temperature, relative humidity, atmospheric temperature, object distance, external IR window compensation |
Colour Palettes | Iron, Rainbow, Rainbow HC, White Hot, Black Hot, Arctic, Lava |
Storage of Media | |
Storage Media | Removable SD card (class 10) |
Image File Format | Standard JPEG, including digital photo and measurement data |
Video Recording/Streaming | |
Radiometric IR Video Recording | Real-time radiometric recording to SD card |
Non-Radiometric IR Video Recording | H.264 to SD Card |
Radiometric IR Video Streaming | Real-time radiometric streaming via USB |
Non-Radiometric IR Video Streaming | H.264 video using Wi-Fi or USB |
Digital Camera | |
Digital Camera | FOV adapts to the IR lens |
Video Lamp | Built-in LED light |
Additional Information | |
USB, Connector Type | USB micro-AB data transfer to and from PC/Uncompressed colourised video |
Battery | Rechargeable Li-Ion polymer battery |
Battery Operating Time | >2.5 hours at 25°C (+68°F) |
Charging System | In-camera (AC adapter or 12V from a vehicle) or 2-bay charger |
Charging Time | 2.5 hours to 90% capacity |
External Power Operation | AC adapter, 90-260V AC input, 50/60Hz or 12V output from a vehicle (cable with standard plug, optional) |
Power Management | Automatic power-off functionality, user-configurable |
Storage Temperature | -40 to +70°C (-40 to 158°F) |
Weight | 1.9kg (4.3lbs) to 2.1kg (4.6lbs), depending upon lens model |
Tripod Mounting | UNC ¼"-20 |
Reviews
SKU | FLIR-T1K |
---|---|
Manufacturer Part Code | 72501-0102 |
