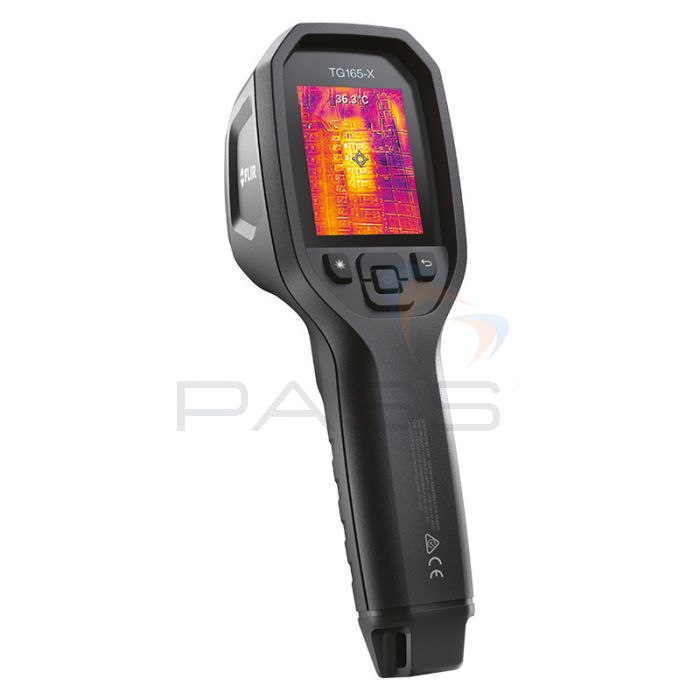

FLIR TG165-X MSX Thermal Camera
The FLIR TG165-X MSX Thermal Camera can be used to capture thermal, visual and MSX images and take non-contact temperature measurements. It is suitable for troubleshooting issues in buildings and electrical, mechanical and HVAC/R systems.
Thermal Imaging
The FLIR TG165-X MSX Thermal Camera’s thermal imaging capabilities allow the user to identify hot and cold spots quickly and easily. It has an IR resolution of 80 x 60px, a <70mk thermal sensitivity, a 51° x 66° field of view and a 24:1 distance-to-spot ratio. It is also equipped with a fixed focus and a selection of thermal colour palettes: the user can choose from Iron, Rainbow, White Hot, Black Hot, Arctic and Lava.
The FLIR TG165-X MSX Thermal Camera measures and displays temperatures between -25°C and 300°C/ -13°F and 572°F to an accuracy of ±1.5°C/ 3°F.
Imaging Modes
In addition to providing thermal images, the FLIR TG165-X MSX Thermal Camera can capture visual images with temperature readings. To this end, it features an integrated 2MP digital camera with a fixed focus and a 71° x 51° field of view.
The FLIR TG165-X MSX Thermal Camera also includes an MSX (Multi-Spectral Dynamic) mode for displaying combined thermal and visual images. The MSX mode enhances thermal images using digital detail allowing the user to see components, wires and sources of faults more clearly.
Display and Storage
The user can save up to 50 000 images to the FLIR TG165-X MSX Thermal Camera’s 4GB memory, allowing him/her to document issues and corrections using before and after images.
Live and saved images can be viewed via the FLIR TG165-X MSX Thermal Camera’s 2.4” display.
Ergonomic
The FLIR TG165-X MSX Thermal Camera is equipped with a bullseye laser pointer that allows the user to identify the specific area of inspection/ measurement easily and clearly. It also features a bright LED work light to enable the inspection of dark or hard-to-reach places.
Additionally, the FLIR TG165-X MSX Thermal Camera features an IP54-rated casing and has been drop tested from 2m to ensure that it is suitable for use in rugged environments.
Operating the FLIR TG165-X MSX Thermal Camera is easy using its simple buttons and trigger-pull for capturing images. It is supplied with a rechargeable Li-ion battery capable of providing up to five hours of operation.
The FLIR TG165-X MSX Thermal Camera is a portable, practical and versatile thermal imaging camera.
FLIR TG165-X MSX Thermal Camera Key Features
- Capture thermal, visual and MSX images and take non-contact temperature measurements
- Troubleshoot issues in buildings and electrical, mechanical and HVAC/R systems
- Identify hot and cold spots quickly and easily
- IR resolution: 80 x 60px
- Thermal sensitivity: <70mk
- Field of View: 51° x 66°
- Distance to spot ratio: 24:1
- Fixed focus
- Selectable thermal colour palettes: Iron, Rainbow, White Hot, Black Hot, Arctic and Lava
- Temperature range: -25°C to 300°C/ -13°F to 572°F
- Accuracy: ±1.5°C/ 3°F
- Capture thermal images
- Capture visual images with temperature readings
- MSX mode: enhance thermal images using digital details
- 4GB storage: save up to 50 000 images
- 2.4” display
- Bullseye laser pointer
- Bright LED work light
- IP54
- Drop tested from 2m
- Easy-to-use buttons
- Trigger-pull for capturing images
- Rechargeable Li-ion battery provides up to 5 hours of power
- Portable, practical and versatile thermal imaging camera
What’s Included?
- FLIR TG165-X MSX Thermal Camera
FLIR TG165-X MSX Thermal Camera Technical Specifications
| Imaging and Optical Data | |
| IR resolution | 80 × 60 pixels |
| Digital image enhancement | No |
| Thermal sensitivity/NETD | <70 mK |
| Field of view (FOV) | 51° × 66° |
| Minimum focus distance | 0.3 m (0.98 ft) |
| Distance to spot ratio | 24:1 |
| Pseudo dual range | No |
| Image frequency | 8.7 Hz |
| Focus | Fixed |
| Detector Data | |
| Focal plane array/spectral range | Uncooled microbolometer/7.5–14 µm |
| Detector pitch | 17 μm |
| Image Presentation | |
| Display resolution | 320 × 240 pixels |
| Screen | 2.4 in. portrait, 80° viewing angle |
| Image adjustment | Automatic |
| Image modes | MSX® (Multi Spectral Dynamic Imaging) |
| Visual (with temperature reading) | |
| Gallery | Yes |
| Measurement and Analysis | |
| Object temperature range | -25°C to 300°C (-13°F to 572°F) |
| Accuracy | 50°C to 100°C (122°F to 212°F) - acc. of ±1.5°C (±3°F) |
| 0°C to 50°C/100°C to 300°C (32°F to 122°F/212°F to 572°F) - acc. of ±2.5°C (±5°F) |
|
| -25°C to 0°C (-13°F to 32°F) - acc. of ±3°C (±7°F) | |
| Minimum measurement distance | 0.26 m (0.85 ft.) |
| Spotmeter | Center spot on/off |
| Colour palettes | Iron, Rainbow, Whitehot, Blackhot, Arctic, Lava |
| Set-Up | |
| Set-up commands | Local adaptation of units, language, date, and time formats |
| Screen brightness (high, medium, low | |
| Gallery, deletion of images | |
| Emissivity correction | Yes: 4 pre-set levels with custom adjustment of 0.1–0.99 |
| Storage of Images | |
| Storage media | 4 GB |
| Image storage capacity | 50,000 images |
| Image file format | JPEG with spot temp in meta tag |
| Digital Camera | |
| Resolution | 2 MP (1600 × 1200 pixels) |
| Focus | Fixed |
| Field of view | 71° × 56°, adapts to the IR lens |
| Worklight and Laser | |
| Worklight | LED on/off |
| Light output | 100 lumens |
| Bullseye laser pointer | Indicating the size of the measurement area |
| Laser type | Class 1 |
| Data Communication Interfaces | |
| Interfaces | USB 2.0 |
| USB standard | USB Type-C High Speed; data transfer/power |
| Power Systems | |
| Battery type | Rechargeable Li-ion, 3.7 V battery |
| Battery operating time | 5 hours of scanning (LCM medium brightness) |
| 4.5 hours with laser on (LCM medium brightness) | |
| Battery charge life | 30 days minimum |
| Charging system | Battery is charged inside the camera; 4 hrs to 90%, 6 hrs. to 100% |
| Power management | Adjustable: off, 5 minutes, 15 minutes, 30 minutes |
| General | |
| Operating temperature range | -10°C to 45°C (14°F to 113°F) |
| Encapsulation | IP54 (IEC60529) |
| Shock | 25 g (IEC 60068-2-27) |
| Vibration | 2 g (IEC 60068-2-6) |
| Drop test | Designed for 2 m (6.56 ft.) |
| Safety | CE/CB/EN61010/UL |
| Weight | 0.394 kg (13.9 oz) |
| Size (L × W × H) | 210 × 64 × 81 mm (8.3 × 2.5 × 3.2 in) |
| Tripod mounting | UNC ¼”-20 |
| SKU | TG165-X |
|---|---|
| Manufacturer Part Code | 87501-0101 |
| Country of Origin | Taiwan |
