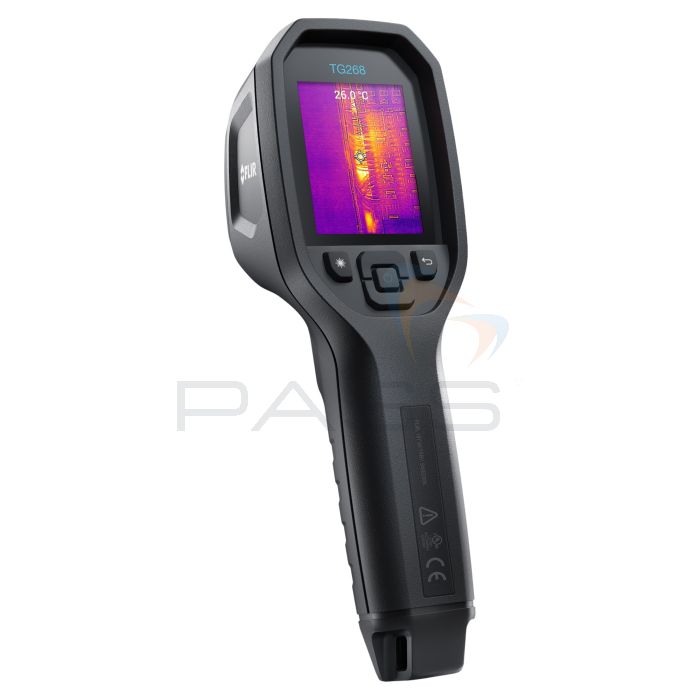

FLIR TG268 Spot Thermal Camera
- MSX image enhancement
- Upscale thermal images to 320 x 240
- Capture readings, images, and videos for analysis
- Share data via the FLIR METERLiNK app
SKU
TG268
MPN
87505-0505
The FLIR TG268 Spot Thermal Camera is suitable for electrical, mechanical, and automotive applications. It has a measurement range from -25°C to 400°C (–13°F to 752°F) and a 24:1 distance-to-spot ratio.
MSX technology enriches thermal images, and Super Resolution boosts clarity up to 320 × 240 pixels. Record images, videos, and temperature readings, then transfer them through the FLIR METERLiNK app for reporting or analysis.
The TG268 IP54-rated housing is drop-tested to 2 m (6 ft), and the integrated bullseye laser pointer provides precise targeting. It has a quick boot-up of around six seconds, sensitivity better than 50 mK, and a bright 100-lumen LED flashlight.
FLIR TG-Series Spot IR Thermal Cameras for Electrical & Industrial Inspections | Spot Hotspots Fast
Key Features
- -25°C to 400°C (752°F) with a 24:1 spot size ratio
- Bullseye laser pointer for precise targeting
- FLIR-patented MSX® image enhancement for added detail
- Super Resolution upscales thermal images to 320 x 240
- Capture readings, images, and videos for analysis
- Share data via the FLIR METERLiNK® app
- Rugged IP54-rated design
- 2 m (6 ft) drop-tested for durability
- Bright 100-lumen LED flashlight
- Type K thermocouple support
- Quick boot-up (~6 seconds)
- Ideal for electrical, mechanical, and automotive inspections
- Monitor equipment for early signs of failure
- Ensure energy efficiency in buildings
- Conduct process manufacturing and quality assurance checks
What's Included?
- FLIR TG268
- Wrist Strap Lanyard
- Pouch
- USB Type-C cable
- Type-K Thermocouple
- Printed documentation
Technical Information
Specification
| TG268 | TG298 | |
|---|---|---|
| Imaging and Optical | ||
| IR Resolution | 160 x 120 | |
| Super Resolution | 320 x 240 | |
| MSX | Yes | |
| Thermal Sensitivity/NETD | <50 mK or <0.05°C (0.09°F) | |
| Field of View (H x V) | 44° x 57° | |
| Distance: Spot Size Ratio | 24:1 | 30:1 |
| Colour Palettes | Iron, Rainbow, White Hot, Black Hot, Arctic, Lava | |
| Display | 2.4” color LCD, 320 x 240 pixels | |
| Spectral Range | 7.5 - 14 µm | |
| Measurement and Analysis | ||
| Object Temperature Range | -25°C to 400°C (-13°F to 752°F) | -25°C to 1080°C (-13°F to 1976°F) |
| Accuracy | ±2.5% or 2.5°C (6°F) at 0°C to 50°C (33°F to 122°F) and 100°C to 400°C (213°F to 752°F) ±3% or 3°C (7°F) at -25°C to 0°C (-13°F to 32°F |
±2.5% or 2.5°C (6°F) at 0°C to 50°C (33°F to 122°F ) and 100°C to 400°C (213°F to 752°F) ±3% or 3°C (7°F) at -25°C to 0°C (-13°F to 32°F) and >400°C (>752°F) |
| Center Spot | Yes | |
| Dual Range | No | Yes |
| Spotmeter | Measures temperature at the center of the image, indicated by laser pointer | |
| Minimum Focus Distance | 0.5 m (1.6 ft) | |
| Minimum Measurement Distance | 0.26 m (0.85 ft) | |
| Video Recording | Yes | |
| Emissivity Correction | 4 pre-set levels with custom adjustment of 0.1 - 0.99 | |
| Contact Measurement | Type-K | - |
| Type-K Range | -30°C to 390°C (-22°F to 734°F) | - |
| Type-K Accuracy | ±1% or 3°C | - |
| Power | ||
| Battery Operating Time | 5 hrs continuous scanning; 4.5 hrs with laser on | |
| Battery Type | Rechargeable Li-ion battery | |
| Battery Voltage | 3.7 V | |
| Battery Charging System | USB Type-C | |
| Boot-Up Time | <10s | |
| Additional Features | ||
| Flashlight | Bright LED flashlight | |
| Laser Pointer | Class 1 bullseye laser visually highlights the measurement area; button-activated | |
| Data Communication Interfaces | ||
| Storage Media | eMMC 8 GB | |
| Image Storage Format | JPEG with spot temperature | |
| Interfaces | USB 2.0, BLE | |
| Bluetooth | Yes | |
| METERLiNK Enabled | Yes | |
| Environmental and Certifications | ||
| Certifications | CE, CB, RCM, IEC60825-1, FDA, UL, CEC, NRCan | |
| Drop Test | 2 m (6 ft) | |
| IP Rating | IP54 | |
| Operating Temperature Range | -10°C to 45°C (14°F to 113°F) | |
| Storage Temperature Range | -30°C to 55°C (-22°F to 131°F) | |
| Tripod Mounting | 1/4 in. -20 on bottom of handle | |
