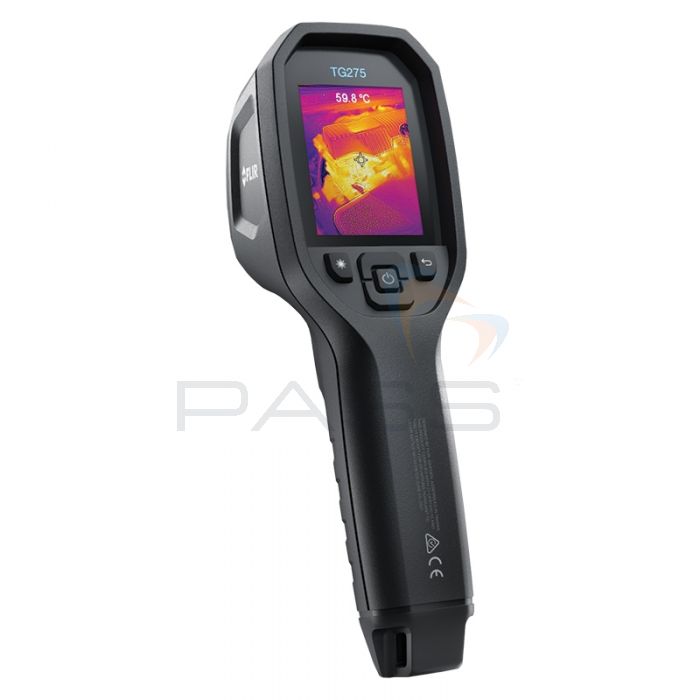

FLIR TG275 Automotive Diagnostic Thermal Imaging Camera

Cost-effective, compact and convenient, the FLIR TG275 Automotive Diagnostic Thermal Imaging Camera is a combined non-contact thermometer and infrared imaging diagnostic tool optimised for the automotive industry. It is of particular use to mechanics involved in repair and maintenance applications as it can troubleshoot issues pertaining to batteries, relays, switches, exhaust manifolds and drive train components; please see the video below for a quick introduction to the FLIR TG275 Automotive Diagnostic Thermal Imaging Camera.

Thermal Imaging Camera

The FLIR TG275 Automotive Diagnostic Thermal Imaging Camera is able to measure and image temperatures between -25°C and +550°C (-13°F to +1022°F). It has an IR resolution of 160 x 120px (19 200 pixels) and a 57° x 44° FOV.

Furthermore, the FLIR TG275 Automotive Diagnostic Thermal Imaging Camera includes a spot ratio of 30:1 enabling the user to take non-contact temperature measurements from a safe distance. The IGM™ (Infrared Guided Measurement) function, consisting of a high-precision, energy-efficient IR laser, guides the user during non-contact temperature measurements: it can be used to identify the exact measurement area thereby facilitating precise readings.

The FLIR TG275 Automotive Diagnostic Thermal Imaging Camera also features an MSX® Image Enhancement function which can be used to improve the clarity, detail and sharpness of thermal images by overlaying visible images (captured using the 2MP digital camera) on top of them. This allows the user to pinpoint the sources of faults and gauge their severity with greater speed and precision.

Further to this, the FLIR TG275 Automotive Diagnostic Thermal Imaging Camera features six selectable colour palettes: iron, rainbow, white hot, black hot, arctic and lava. Using these colour palettes, the mechanic can adjust the thermal image to enhance the aspects most relevant to his/her application.

Memory

The FLIR TG275 Automotive Diagnostic Thermal Imaging Camera's Imaging Recording function facilitates the user’s ability to capture and save images throughout the maintenance and/or repair process. Up to 50 000 images can be saved to the FLIR TG275 Automotive Diagnostic Thermal Imaging Camera’s 4GB of storage allowing the mechanic to document each job from the identification of the problem through to repair completion.

Ergonomic

Images are displayed on the FLIR TG275 Automotive Diagnostic Thermal Imaging Camera’s bright, 2.4” screen. Saving images and/or accessing the required measurement function is easy due to the FLIR TG275 Automotive Diagnostic Thermal Imaging Camera’s simple interface and ergonomic design.

This compact and rugged camera is IP54-rated ensuring that it is protected from dirt, dust and oil ingress, which is particularly useful when working on automotive sites. Additionally, the FLIR TG275 Automotive Diagnostic Thermal Imaging Camera features an integrated bright LED torch for seeing into dark and/or awkward-to-reach spaces.

The FLIR TG275 Automotive Diagnostic Thermal Imaging Camera is an accurate, affordable and durable infrared diagnostic tool optimised for the automotive industry.

FLIR TG275 Automotive Diagnostic Thermal Imaging Camera Key Features

  • Cost-effective, compact and convenient combined non-contact thermometer and IR imager
  • A diagnostic tool optimised for the automotive industry
  • Ideal for mechanics involved in maintenance and repair applications
  • Troubleshoot issues pertaining to batteries, relays, switches, exhaust manifolds and drive train components
  • Measure and image temperatures between -25°C and +550°C (-13°F and +1022°F)
  • FOV: 57° x 44°
  • Spot ratio: 30:1
  • Conduct non-contact temperature measurements from a safe distance
  • IGM™ function: high-resolution, energy-efficient IR laser for precise identification of the measurement area
  • MSX® function: overlays visible images onto IR images to create sharp, clear, detailed thermal pictures
  • 2MP digital camera
  • Six selectable colour palettes: iron, rainbow, white hot, black hot, arctic and lava
  • Image Recording feature
  • 4GB storage
  • Capture and save up to 50 000 images
  • Document jobs from problem identification to repair completion
  • Bright, 2.4” display
  • Compact and rugged
  • IP54: protected against dust, dirt and oil
  • Bright LED torch
  • An accurate, affordable and durable IR diagnostic tool optimised for the automotive industry

What’s Included?

  • FLIR TG275 Automotive Diagnostic Thermal Imaging Camera
  • Wrist Strap Lanyard
  • USB Cable
  • Pouch
  • Printed Documentation

FLIR TG275 Automotive Diagnostic Thermal Imaging Camera Technical Specifications

Image and Optical Data
IR resolution 160 × 120 (19,200 pixels)
Thermal sensitivity/NETD <70 mK
Field of View (FOV) 57° × 44°
Distance-to-spot ratio 30:1
Minimum focus distance 0.3 m (0.98 ft.)
Imaging range –25°C to 550°C (–13°F to 1022°F)
Image frequency 8.7 Hz
Focus Fixed
Digital camera 2 MP, 71° × 56° FOV
Image Presentation and Modes
Display resolution 320 × 240 pixels
Screen size 2.4 in colour LCD, portrait orientation
Aspect ratio 4:3
Image adjustment Automatic
Visual image Yes
MSX® Yes
Gallery Yes
Colour palettes Iron, Rainbow, White hot, Black hot, Arctic, Lava
Image storage capacity 4 GB for storage of up to 50,000 pictures
Image file format JPEG
Measurement Analysis
Camera temperature range –25°C to 550°C (–13°F to 1022°F)
Measurement accuracy ±1.5°C (2.7°F) for temperatures 50°C to 100°C (122°F to 212°F)
Up to ±3°C (±5.4°F) for temperatures -25°C to 50°C (-13°F to 122°F)
Up to ±3°C (±5.4°F) for temperatures 100°C to 550°C (212°F to 1022°F)
IR temperature resolution 0.1°C (0.2°F)
IR thermometer measurement Continuous scanning
Spotmeter Center spot on/off
Emissivity correction Yes: 4 preset levels with custom adjustment of 0.1 to 0.99
Set-up commands Local adaptation of units, language, date, and time formats
Screen brightness (high, medium, low)
Gallery, deletion of images
General Specifications
Laser pointer Center spot and circular area
Laser Class 1
Interfaces USB 2.0, Bluetooth® BLE
USB USB Type-C: data transfer/power
Available languages Czech, Danish, Dutch, English, Finnish, French, German, Greek, Hungarian, Italian, Japanese, Korean, Norwgian, Polish, Portuguese, Russian, simplified Chinese, Spanish, Swedish, traditional Chinese, Turkish
Flashlight Bright LED flashlight
Battery operating time 5 hours continuous scanning
Battery type Rechargeable Li-ion battery
Battery voltage 3.7 V
Battery charging time 4 hours to 90%, 6 hours to 100%
Power management Adjustable: off, 5 min, 15 min, 30 min
IP rating IP54 (IEC60529)
Drop Designed for 2 m (6.56 ft)
Safety CE/CB/EN61010/UL
Operating temperature range –10°C to 45°C (14°F to 113°F)
Tripod mounting UNC 1/4”-20
Weight (including battery) 0.394 kg (13.9 oz)
Size (L x W x H) 210 mm × 64 mm × 81 mm (8.3 in × 2.5 in × 3.2 in)
