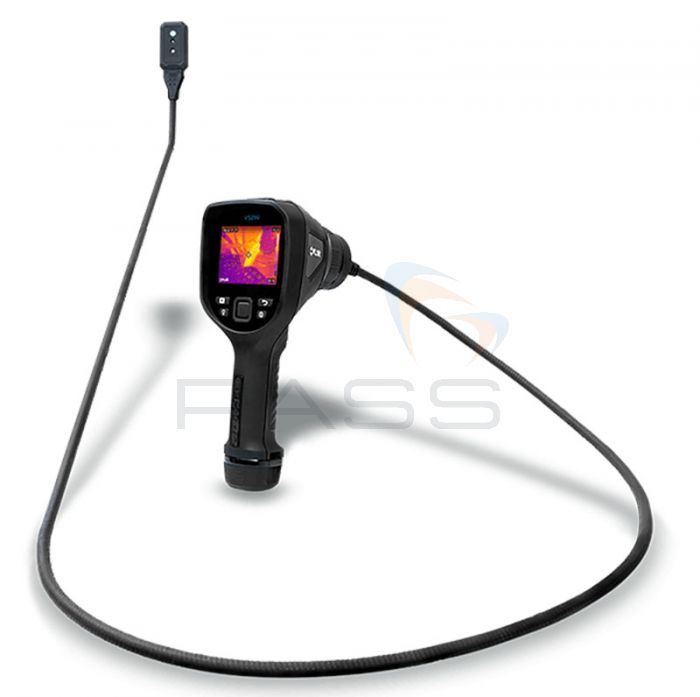

FLIR VS290 Thermal Imaging Videoscope – Optional Probe
This rugged, reliable infrared- and visible-light imaging camera can be used to find potential faults in tight and/or difficult-to-access areas such as underground electrical distribution vaults. The FLIR VS290 Thermal Imaging Videoscope is available with or without a 2m rectangular camera probe; please see the table below for more information.
| SKU | Title | Camera Probe |
| VS290-32 | FLIR VS290-32 Videoscope with 2m Rectangular Probe | Yes |
| VS290-00 | FLIR VS290-00 Videoscope - No Probe | No |
| VS290-21 | FLIR VS290-21 Videoscope with 1m Rectangular Probe | Yes |
| VS290-33 | FLIR VS290-33 Videoscope with 2m Rectangular Probe | Yes |
Thermal & Optical Imaging
The FLIR VS290 Thermal Imaging Videoscope has an infrared resolution of 160 x 120px, a thermal sensitivity of <100mK, and an IR field-of-view of 57° x 44°. The FLIR VS290 Thermal Imaging Videoscope can measure temperatures between -10°C to +400°C to an accuracy of ±3°C/3%.
This industrial inspection tool is also equipped with a 2MP visual camera with an 83° field-of-view and bright LED work light. The FLIR VS290 Thermal Imaging Videoscope includes IR, Visual and MSX imaging modes. The MSX imaging mode overlays digital details onto the corresponding thermal image to increase picture clarity and improve the ease and certainty with which the user can identify the source of faults.
In addition to this, the FLIR VS290 Thermal Imaging Videoscope includes isotherms/ colour alarms and five selectable thermal colour palettes: Iron, Rainbow, Grey, Below Alarm, and Above Alarm.
Images can be saved to the supplied 16GB SD card. These images may be downloaded to a PC via a USB-C cable for analysis and inclusion in reports.
Rugged & Reliable
The FLIR VS290 Thermal Imaging Videoscope is optimised for utility, building, and manufacturing applications. To this end, it has an ingress protection rating of IP54 and a safety rating of CAT IV 600V which makes it suitable for conducting electrical inspections.
OPTIONAL 2m Rectangular Camera Probe
The field-replaceable OPTIONAL 2m rectangular camera probe also has an IP rating of 54, however, its camera tip is IP67-rated. This probe fits through small gaps and can be used to inspect electrical distribution vaults, large gearboxes, motors, attics, and crawl spaces.
The FLIR VS290 Thermal Imaging Videoscope can be used to identify hotspots in tight or difficult-to-access spaces before failures occur, thereby maximising system uptime.
FLIR VS290 Thermal Imaging Videoscope Key Features
- An industrial infrared- and visible-light-imaging inspection tool
- Identify problems in difficult-to-access locations such as underground electrical distribution vaults
- Two models available: one with a rectangular camera probe and one without
- IR resolution: 160 x 120px
- Thermal FOV: 57° x 44°
- Thermal sensitivity: <100mK
- Temperature range: -10°C to +400°C
- Accuracy: ±3°C/3%
- 2MP visual-light camera with an 83° FOV
- Bright LED work light
- IR imaging mode
- Visual imaging mode
- MSX imaging mode: overlays digital details onto thermal images
- Selectable thermal colour palettes: Iron, Rainbow, Grey, Below Alarm, and Above Alarm
- Isotherms/ colour alarms
- SD card
- Download images to a PC via a USB-C cable
- Analyse images and create reports using FLIR’s Thermal Studio Software (NOT included)
- IP54-rated base unit and probe
- IP67-rated camera tip
- CAT IV 600V
- The OPTIONAL 2m rectangular camera probe fits easily through small gaps
- The OPTIONAL 2m rectangular camera probe is field-replaceable
- A durable, dependable thermal inspection imager
- Access tight locations to find hotspots before failures occur
- Maintain system uptime
What’s Included?
- FLIR VS290 Thermal Imaging Videoscope With or Without 2m Rectangular Camera Probe
- 2x Rechargeable Batteries
- Battery Charger
- Power Supply for Battery Charger
- 16GB SD Card
- USB Cable
- Wrist Strap
- Hard Case
- Printed Documentation
FLIR VS290 Thermal Imaging Videoscope Technical Specifications
| Imaging and Optical Data | |
| IR resolution | 160 × 120 pixels |
| Digital image enhancement | Yes, MSX® |
| Thermal sensitivity/NETD | <100 mK |
| IR Field of view (FOV) | 57° × 44° |
| Minimum focus distance | 0.15 m |
| Image frequency | 8.7 Hz |
| Focus | Fixed |
| Focal plane array/spectral range | Uncooled microbolometer/7.5–14 µm |
| Detector pitch | 12 μm |
| Image Presentation | |
| Display resolution | 320 × 240 pixels |
| Screen size | 3.5 in |
| Colour palettes | Iron, Rainbow, Gray, Below alarm, Above alarm |
| Image modes | IR only, Visual only, MSX |
| Gallery | Yes |
| Measurement and Analysis | |
| Object temperature range | –10 to 400°C (14 to 752°F) |
| Measurement accuracy | At ambient temp. 15 to 35°C (59 to 95°F) and object temp. above 0°C (32°F) 0 to 100°C (32 to 212°F): ±3°C (±5.5°F) 100 to 400°C (212 to 752°F): ±3% |
| Spotmeter | 1 in live mode |
| Measurement presets | No measurement, center spot, hot spot, cold spot |
| Emissivity correction | 3 pre-set and 1 custom emissivity setting |
| Image Storage and Visual Camera | |
| Storage capacity | Removable SD card (16 GB) |
| Image file format | Radiometric JPEG |
| Visual camera resolution | 2 MP |
| Visual camera field of view (FOV) | 83° |
| Worklight | Bright LED |
| Data Communication Interface | |
| USB | USB Type-C: data transfer/power |
| Additional Data | |
| Battery type | Rechargeable 3.7 V Li-ion |
| Battery operating time | >5 hours (full LCD brightness and worklight on) |
| Probe length | 2 m (6.6 ft) |
| Probe tip shape | Rectangular (side-viewing camera) |
| Weight (including battery) | Complete kit with case: 13 kg (28.66 lb) Display: 640 g (1.41 lb) Probe: 470 g (1.04 lb) |
| Size (L × W × H) | Complete kit with case: 120 × 48 × 20 cm (47 × 18.90 × 7.87 in) Display: 26.4 × 11 × 11 cm (10.4 × 4.3 × 4.3 in) Probe: 212.2 × 0.69 cm (83.5 × 0.3 in) Probe tip: 74.16 × 40.52 × 11 mm (2.9 × 1.6 × 0.4 in) |
| SKU | VS290 |
|---|
