Fluke CV400 / CV401 ClirVu 95mm Infrared Window

Write a Review

Large-size IR window for seeing what's happening inside electrical panels.


Saving from RRP: £10.00
You Pay: £339.00
Inc. Vat: £406.80
Reward Points [?]: £6.78

* Required Fields

£339.00

Fluke CV400/CV401 IR Window

Click to enlarge
Overview

Note: There are two versions of this product available (use the dropdown box to make a selection). The only difference between the two is that model CV401 comes with a security key whereas CV400 does not.

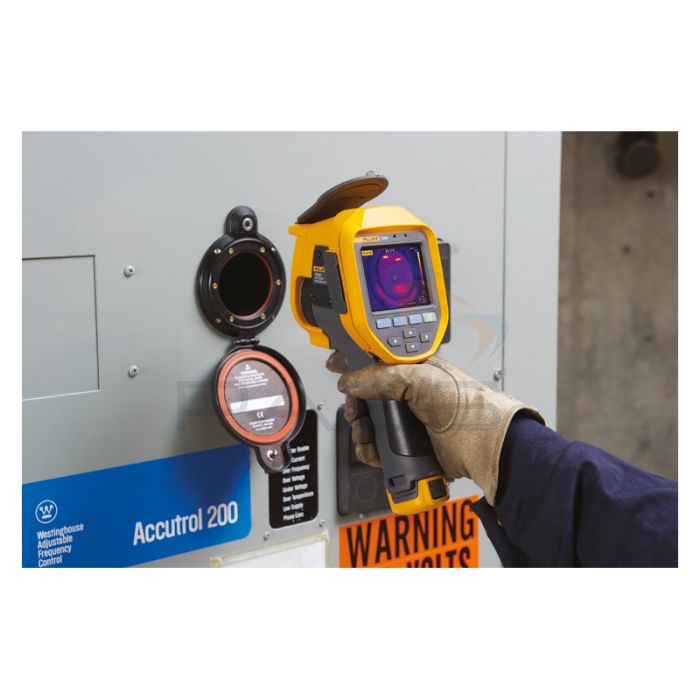

The largest of Fluke's CV infrared windows, the CV400 and CV401 directly install on electrical panels and allow users to see what's happening inside.

They are universally compatible with all Fluke thermal imaging cameras, suitable for use both indoors and outdoors and offer superior protection against electrical shock and the effects of arc flash. Fluke's IR windows are also incredibly easy to install, seal firmly in place and automatically ground themselves to ensure the protection of users at all times.

Each window comes with a uniquely marked identification plate, allowing unique, on-site numbering for rapid location confirmation and faster repairs.

Fluke CV400 / CV401 ClirVu 95mm Infrared Window Key Features

  • Reduces the risk of arc flash and electrocution
  • Doesn't require removal of the electrical panel door to install/use
  • Superior arc flash protection with high temperature silicon gaskets, mounting and door latches with high pressure gasket compensation, die cast components manufactured from the highest strength alloys and jam nut screws made from 4037 steel, heat treated to 160000 psi tensile
  • Extensively torture tested with the highest levels of arc blast - IEEE C37.20.7 63 kA Arc tested at KEMA, UL 50/50E/50V, UL1558, IEC60529-1: IP67, IEC 60068, NEMA 4/12, CSA C22.2 NO. 14-13:2012, and CE
  • 95mm size
  • Available with/without key lock
  • Installation takes just five minutes

What's Included?

  • CV400/CV401 IR Window
  • Warranty Statement
  • Security Key (Model CV401 only)
Features

Need more information? Find it in the full technical specification and reviews.

Technical Specification

Fluke CV IR Window Range Technical Specifications

ModelCV400CV401CV300CV301CV200CV201
Size 95mm (4in) 75mm (3in) 50mm (2in)
Voltage Range Any
NEMA Environment Type Type 4/12 (indoor/outdoor)
AutoGround Yes
ClirVu Optic Yes
Operating Temperature -40 to 232°C (-40 to 450°F) and 260°C (500°F) intermittent
Compatible with All Fluke Cameras Yes
Jam Nut Locking System Yes
Cover and Fastener Permanently Attached Yes
Single-Hole Install Yes
Hand Turn and Security Key Door Latch Options Yes
Visual Inspection and Fusion Capable Yes
Short/Mid/Long-Wave IR and UV Capable Yes
Ratings and Testing
Arc-Tested (IEEE C37.20.7) 63kA for 30 cycles @ 60Hz at KEMA
UL 50V Component Recognition Yes
UL 50/NEMA Environmental Rating NEMA Type 4/12
UL1558 Yes
CSA C22.2 No. Yes
CSA Type Rating Type 4
IP Rating IP67 at TUV
Lloyds Register Up to 11kV marine switchgear, indoor or outdoor (offshore only)
Vibration Rating IEC60068-2-6 at TUV
Humidity Rating IEC60068-2-3 at TUV
Installation
Actual Mounting Hole Diameter Required 115.42mm (4.544in) 89.89mm (3.539in) 61.37mm (2.416in)
Greenle Punch Kit = Punch/Die 742BB = 2984AV/2983AV 739BB = 1431AV/1432AV 7BB = 441AV/442AV
Recommended Max Panel Thickness 10 gage
Overall Window Height 189.3mm (7.45in) 141.5mm (5.57in) 112.9mm (4.45in)
Overall Window Width 147.1mm (5.79in) 111.5mm (4.39in) 83.0mm (3.27in)
Overall Window Thickness 23.0mm (0.90in) 16.2mm (0.64in) 16.2mm (0.64in)
Door Latch Hand Turn Security Key Hand Turn Security Key Hand Turn Security Key
Optics
Optics Insert Diameter 95mm (3.74in) 75mm (2.96in) 50mm (1.97in)
Viewing Aperture Diameter 87.63mm (3.450in) 67.95mm (2.675in) 42.93mm (1.690in)
Viewing Aperture Area 6032 sq.mm (9.35 sq.in) 3626 sq.mm (5.62 sq.in) 1445 sq. mm (2.24 sq.in)
Thickness 4mm (0.16in) 2mm (0.08in)
