Fluke iSee Mobile TC03A Pro Thermal Camera for Android, 50Hz
- Spatial resolution (IFOV) of 1.14 mrad
- Manual focus lens
- 25° x 19° field of view
SKU
FLUKE-TC03A PRO 50HZ
MPN
6125550
The Fluke iSee Mobile TC03A Pro Thermal Camera connects to Android smartphones and tablets via USB-C, delivering 384 × 288 thermal imaging at 50 Hz. It features 45 mK NETD, a 25° × 19° field of view, manual focus, and a -20°C to 550°C temperature range, with SuperResolution providing images up to 768 × 576.
The Fluke iSee app provides thermal measurement and alarm functions, along with image and video capture and report generation for professional inspections.
Please note the phone pictured is not included with the Fluke iSee Mobile TC03A Pro Thermal Camera for Android, 50Hz.
Key Features
- 384 x 288 infrared resolution delivers clear, detailed thermal images
- 50 Hz frame rate
- SuperResolution up to 768 x 576 enhances image clarity
- NETD 45 mK enables precise detection of subtle temperature differences
- Wide temperature range covers applications from -20 °C to 550 °C
- Spatial resolution (IFOV) of 1.14 mrad allows detection of spots as small as 0.01 m from 10 m away
- Manual focus lens provides details of both near and distant targets
- 25° x 19° field of view enables efficient area coverage
- Flexible working distance starts from 0.25 m (10 inches)
- Automatic three-phase temperature delta calculation
- Over-temperature alarms with audible, visual, and vibration alerts
- Spot, line, and area measurement tools
- Connected workflow with the Fluke iSee app:
- Real-time image and video capture
- Integrated report generation and export capabilities
- Streamlined team communication with easy sharing
- Lightweight design at only 55 g
- USB-C connection enables direct integration with mobile devices
- IP54 rating protects against dust and water
- Built for reliable daily use in industrial environments
What's Included?

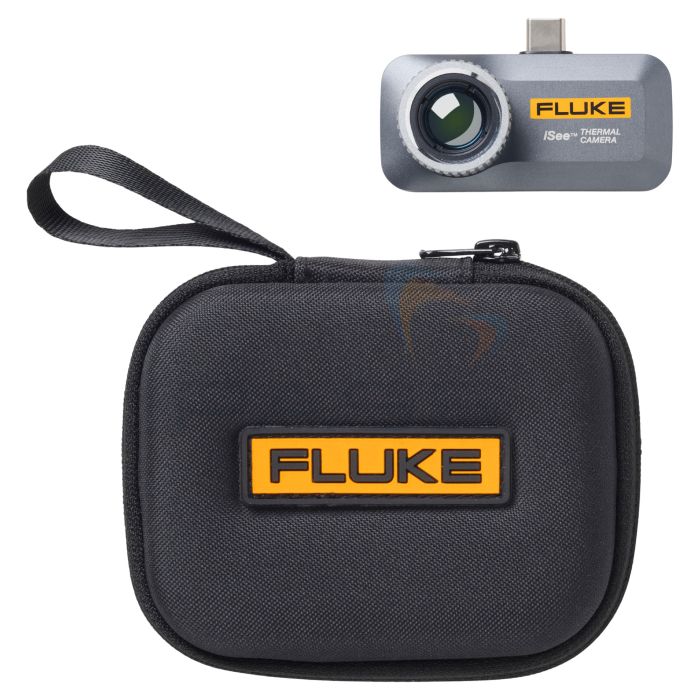

- Fluke-TC03A Pro 50 Hz Mobile Thermal Camera for Android
- User manual
- Soft protective bag
Technical Information
Specification
| Fluke TC03A 9 Hz | Fluke TC03A Pro 50 Hz | |
|---|---|---|
| Performance | ||
| IR Resolution | 384x288px | |
| Super Resolution | Yes, up to 768 x 576 | |
| Pixel Size | 12 μm | |
| Temperature Range | -20 °C to 150 °C, 100 °C to 550 °C | |
| Temperature Accuracy | ± 2 % of rdg or ± 2 °C, whichever is greater (@ 23 °C ± 5 °C ambient temperature) | |
| Frame Rate | 9 Hz | 50 Hz |
| Focal Length | 10.5 mm | |
| Focusing Mode | Manual | |
| Nonuniformity Correction (NUC) | Manual / Auto | |
| Thermal Sensitivity (NETD) | 50 mK | 45 mK |
| Spectral Range | 8 to 14 μm | |
| Field of View (FOV) | 25° x 19° | |
| Spatial Resolution (IFOV) | 1.14 mrad | |
| General | ||
| USB Interface | Type C | |
| Operating System Supported | Android and HarmonyOS | |
| Operating Temperature | 0 °C to 40 °C | |
| Storage Temperature | -30 °C to 60 °C | |
| Operating Humidity | 10% to 90% RH, non-condensing | |
| Power Consumption | 700 mW (Typical) | |
| Ingress Protection | IEC 60529: IP54 (with the protective cover for Type-C) | |
| Operating Altitude | 2000 m | |
| Storage Altitude | 12000 m | |
| Dimensions | 60 mm x 36 mm x 28 mm (L x W x H) | |
| Weight | 55 g | |
| Fluke Warranty | 2 years | |
| EMC Environment | ||
| International | IEC 61326-1: Electromagnetic environment for portable equipment; CISPR 11: Group 1, Class A Group 1: Equipment intentionally generates and/or uses conductive-coupled RF energy, which is necessary for its internal operation. Class A: Equipment is suitable for use in all establishments other than domestic and those directly connected to a low-voltage power supply network that supplies buildings used for domestic purposes. There may be potential difficulties in ensuring electromagnetic compatibility in other environments due to conducted and radiated disturbances. Caution: This equipment is not intended for use in residential environments and may not provide adequate protection to radio reception in such environments. Class A Equipment (Industrial Broadcasting & Communication Equipment) |
|
| Korea (KCC) | Class A: Device meets requirements for industrial electromagnetic wave equipment, and the seller or user should take notice of it. This equipment is intended for use in business environments and is not to be used in homes. | |
| America (FCC) | 47 CFR Part 15 Subpart B. This product is considered an exempt device per clause 15.103. | |
