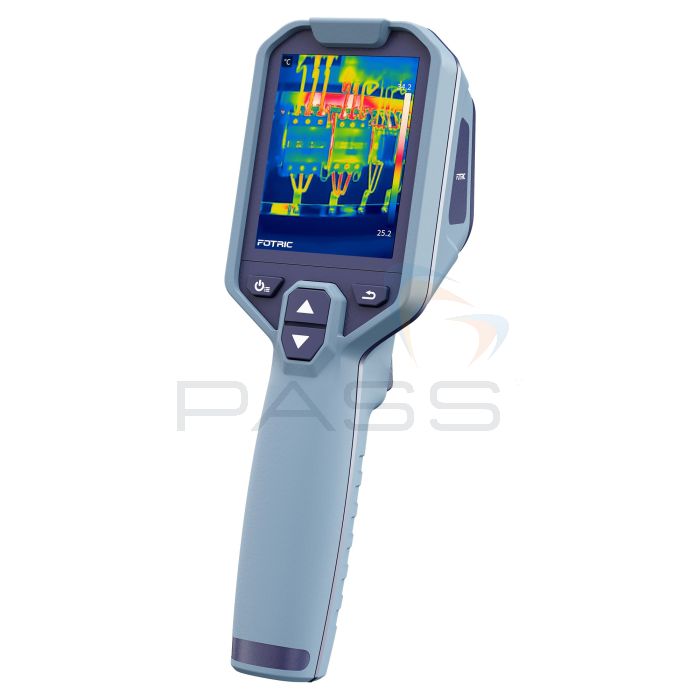

Fotric TF3 Compact Thermal Imaging Camera, 320*240 (30Hz)
- Focus-free operation for fast inspections
- Wide 38° x 50° field of view
- Up to 7 hours of battery life
SKU
FOT-TF3-L50
MPN
A262345-V002
The Fotric TF3 is designed for fast fault detection in electrical, mechanical, HVAC, and building maintenance applications. Its 320 × 240 IR resolution and 30 mK thermal sensitivity (NETD) provide clear thermal images for identifying temperature anomalies.
The TF3 has four viewing modes, including infrared, T-DEF®, picture-in-picture, and visible light. T-TWB® imaging technology enhances thermal detail across a wide temperature range.
With focus-free operation, a 38° × 50° field of view, and up to 7 hours of battery life, the TF3 is suited to rapid inspections and large-area surveys.
Key Features
- 320 x 240 infrared resolution
- 30 mK thermal sensitivity (NETD)
- Crystal-clear thermal imaging with low image noise
- Four image modes: Infrared, T-DEF®, Picture-in-Picture, and Visible Light
- T-TWB® Histogram Temperature Gradient Imaging
- Focus-free operation for fast inspections
- Wide 38° x 50° field of view
- Up to 7 hours of battery life
- Compact and lightweight 430 g design
- One-handed operation for mobile inspections
- Suitable for electrical, mechanical, HVAC, and facility maintenance applications
- Ceramic-sealed infrared sensor for stable performance and detection of subtle temperature differences
- Soft bag and belt holder included
Applications
- Electrical equipment inspection
- Electrical circuits overload
- Loose or corroded electrical contacts
- Insulation failure
- Building surface temperature inspection
- External wall water seepage detection
- Material insulation performance inspection
- Exterior wall cavity assessment
- HVAC temperature diagnosis
- Condenser duct blockage detection
- Insulation condition inspection
- Water leakage location detection
- Mechanical equipment inspection
- Motors, pumps and fans inspection
- Bearing wear and lubrication failure detection
- Identify shaft misalignment
- Car fault diagnosis
- Engine system temperature distribution
- Brake inspection
- AC outlet inspection
- Floor heating diagnosis
- Accurate location of leaks
- Identification of pipe blockage
- Identification of unevenly hot and cold pipes
What's Included?
- Main unit
- USB Type-C to USB cable
- 32 GB TF card
- Quick start guide
- Colour box
- Carrying pouch
Technical Information
Specification
| Basic Parameters | |
|---|---|
| Infrared Resolution | 240 x 320 |
| Detector Type | Uncooled infrared focal plane detector with ceramic packaging |
| Thermal Sensitivity (NETD) | < 30 mK @ 30℃ |
| Spectral Response Range | 8-14 μm |
| Frame Rate | 30 Hz |
| Field of View (FOV) | 38° x 50° |
| Spatial Resolution (IFOV) | 2.76 mrad |
| Minimum Focus Distance | 0.3 m |
| Focal Length | 4 mm |
| Focusing Mode | Focus-free |
| Measurement Analysis | |
| Temperature Range | -20 to 450℃ |
| Measurement Range | -20 to 120℃ , 0 to 450℃ |
| Temperature Accuracy | ±2℃ or 2%, whichever is greater (ambient temperature 15-35℃ , target temperature >0℃ , calibrated at 1 m) |
| Temperature Spot | Centre spot |
| Measurement Box | Centre box |
| Global Temperature Correction | Supports emissivity and target distance correction |
| Analysis Software | AnalyzIR professional thermal imaging analysis software |
| Image Display | |
| Display | 3.2-inch, 640 x 480 pixels, IPS LCD |
| Image Modes | Infrared image, visible-light temperature measurement (T-DEF®), picture-in-picture, visible light |
| Visible-light Temperature Measurement (T-DEF) | Visible-light temperature measurement Adjustable infrared image transparency from 0% to 100% |
| Picture-in-Picture | Overlay the infrared image on the visible image |
| Palette | Supports 4 general palettes: Rain, Iron, Grey, Rainbow |
| Temperature Span Mode | Supports automatic temperature span adjustment; manual span adjustment supported (minimum 2℃ ) |
| High/Low Temperature Tracking | Special markers automatically track the highest and lowest temperatures in the measurement area |
| Colour Alarm | Supports temperature-over-limit colour alarm |
| High-Temperature- Difference Balanced Imaging (T-TWB) | Optimised display for a wide dynamic range, revealing more details |
| Capture Functions | |
| Digital Camera | 2 MP industrial-grade digital camera |
| Memory Card | TF card, hot-swappable, max. 32 GB |
| Image Format | jpg (thermal image), jpg (visible-light image) |
| On-device Gallery | Supports thumbnail browsing and preview |
| Data Connectivity | |
| USB Port | USB Type-C, compliant with the USB 2.0 standard |
| Auxiliary Functions | |
| Software and Firmware Upgrade | Supports local upgrade via TF card |
| LED Illumination | Supports flashlight and strobe modes |
| Power System | |
| Battery Type | 3.6 V, 4800 mAh rechargeable lithium battery |
| Battery Runtime | Continuous working time ≥ 6.5 hours (actual runtime depends on ambient and usage conditions) |
| Charging Method | Supports direct charging via USB Type-C port |
| Charging Time | Charges to 90% in 2.5 hours |
| Power Saving Management | Auto power-off, auto screen-off |
| External Power Supply | Supports powering the device via the USB Type-C port |
| Reliability and Certification | |
| Safety Standard | GB 4793.1 / EN 61010-1 |
| EMC Compatibility | GB/T 18268.1 / EN IEC 61326-1 |
| Protection Rating | IP54 (GB/T 4208 / IEC 60529) |
| Drop Resistance | Designed for 2 m drop resistance |
| Impact Resistance | 25 g (GB/T 2423.5 / IEC 60068-2-27) |
| Vibration Resistance | 2 g (GB/T 2423.10 / IEC 60068-2-6) |
| RoHS Compliance | Compliant |
| Flame Rating | UL94 HB |
| Physical Parameters | |
| Operating Temperature | -20 to 50℃ |
| Storage Temperature | -40 to 70℃ , without battery |
| Relative Humidity | <95% RH |
| Dimensions | 222 mm x 74 mm x 77 mm |
| Weight | 430 g |
| Housing Material | Rigid: PC+ABS Soft: TPE |
| Mounting Method | Supports UNC 1/4-20 interface connection to a tripod |
| Warranty and Maintenance | |
| Warranty Period | 1 year for the device |
| Recommended Calibration Interval | 2 years |
| Languages | |
| Supported Languages | English, German, French, Spanish, Portuguese, Italian, Polish, Japanese, Korean, Traditional Chinese, Thai, Simplified Chinese |
