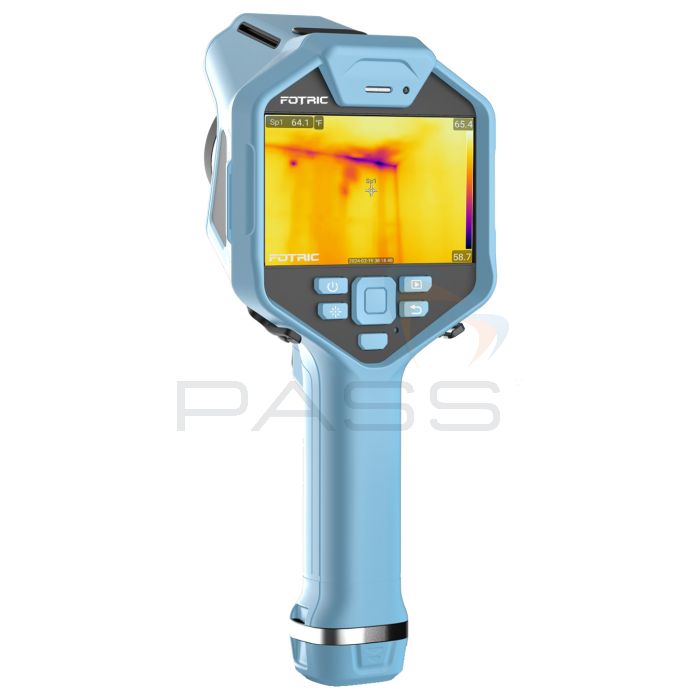

FOTRIC Ti5 Thermal Camera, 44° Lens (384 x 288)
- TurboFocus Intelligent Focusing System
- On-device Analysis
- FOTRIC AnalyzIR software
SKU
FOT-TI5-L44
MPN
A250004-B001
The FOTRIC Ti5 has a 384 × 288 infrared resolution, a 44° wide-angle lens, and <40 mK thermal sensitivity. It also includes contour enhancement (IREdge) technology, T-TWB histogram temperature representation, and the TurboFocus system, which combines multiple focusing modes.
The Ti5 features an IP54-rated housing and passes a 2-metre drop test. Additional features include laser-assisted area and length measurement, on-device analysis tools, the ability to bookmark key images, and integration with FOTRIC AnalyzIR software.
Key Features
- T-TWB Histogram Temperature Representation
- IREdge Contour Detail Enhancement
- TurboFocus Intelligent Focusing System
- Robust Design
- 2-metre drop test
- IP54 protection rating
- Laser-assisted Area/Length Measurement
- On-device Analysis
- Bookmark key images
- Professional Analysis Software
- Paired with FOTRIC AnalyzIR software
What's Included?
- Infrared thermal imager
- Lens
- Lens cover
- Two batteries
- Battery charger
- Power adapter
- USB Type-C to USB interface cable
- Micro HDMI to HDMI interface cable
- SD card
- SD card reader
- Accessory bag
- Wrist strap
- Two wrist strap holders
- Two M4 * 8 screws
- Lanyard
- Allen wrench
- Information bag
- Packing list
- User manual
- Calibration certificate
- Fotric warranty card
- Soft bag
- Hard case
Technical Information
Specification
| Infrared Resolution | 384*288 |
| Thermal Sensitivity (NETD) | <40mK@30℃ |
| Temperature Measurement Range | -20~120℃ (-4~248 ℉ ), 0~550℃ (32~1022 ℉ ), Intelligent range |
| User-definable Markers | 6 spot markers; 6 rectangle or circle; 3 measurement lines |
| Focus Mode | TurboFocus® system for continuous, laser-assisted, thermal contrast AF, touch AF; Manual focus |
| Field of View（FOV） | 44° *33° |
| Spatial Resolution (IFOV) | 2mrad |
| Unique Features | TurboFocus®, T-DEF®, IREdge, T-TWB® |
| Frame Rate | 30Hz |
| Accuracy | ± 2℃ (3.6 ℉ ) or ± 2 %, whichever is greater（ambient temperature at 15~35° C(59~95 ℉ ) , target object temperature >0° C, calibration at 1 meter) |
| Storage Card | Micro SD card, 64GB, expandable up to 1TB |
| PC Software | AnalyzIR® |
| On-device Analysis | Support |
| Image Mode | Thermal image, Digital Camera, Picture in Picture, and T-DEF®, High sensitivity mode (only active when the lens is identified as a gas detection lens) |
| Palettes | 10 |
| Digital Camera | 8MP industrial-grade camera |
| Digital Zoom | 1-8x, continuous |
| Image Format | Radiometric thermal photo (JPEG), non-radiometric digital camera photo |
| Software and Firmware Upgrade | Support OTA remote upgrade and SD card local upgrade |
| LED Flash Lamp | Supports torch illumination and flashlight mode |
| Battery | Rechargeable Li-ion, 7.4V, 3500mAh |
| Battery Operating Time | ≥ 4 hours per battery(depends on the environment and workload) |
| Operation Temperature | -20~50℃ (-4~122 ℉ ) |
| Weight (include battery) | 1.0kg (lens not included) |
| Drop | Engineered to withstand a 2-metre (6.5 feet) drop with standard lens |
| Enclosure Rating | IP54(IEC 60529) |
| Recommended Calibration Cycle | 2 years |
| *Some features might be added or slightly altered according to the region and country | |
