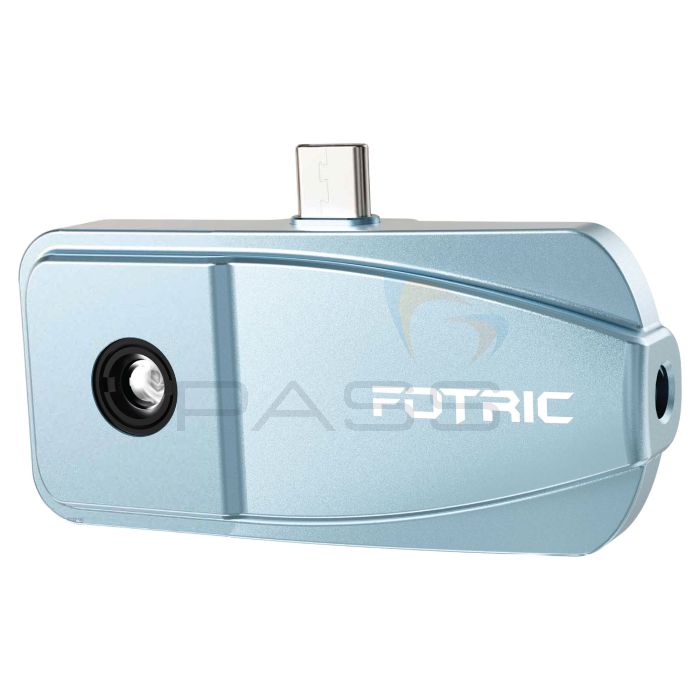

FOTRIC TP320A Portable Thermal Imaging Camera, 320x240px
- No charging required
- Desktop tripod
- Extended mode
- Suitable for Android 12+ devices
SKU
FOT-TP320A
MPN
A262352-B002
The FOTRIC TP320A is a compact thermal imaging camera for Android 12+ smartphones with USB Type-C and OTG support. Powered directly from the connected device, it requires no battery, charging or warm-up time, allowing immediate thermal inspections.
The 320 × 240 thermal sensor delivers clear infrared images, with Super Resolution technology enhancing images to 640 × 480 for added detail. Featuring a 60° × 45° focus-free lens, ≤35 mK thermal sensitivity, and a measurement range of -20°C to 550°C, the TP320A is suitable for applications including electrical inspections, HVAC diagnostics, home maintenance, energy-loss detection and outdoor observation.
It is also compatible with the FOTRIC Genie App and AnalyzIR Professional Thermal Imaging Analysis Software for detailed thermal analysis and report generation.
Enchant Your Phone with Infrared Vision | FOTRIC TP320A Smartphone Thermal Camera
Key Features
- True 320×240 Thermal Resolution
- 35mK Thermal Sensitivity
- 60-degree Lens
- Field of View (FOV): 60°*45°
- Image Frame Rate: 25Hz
- Ultra-Light Plug-and-Play Design
- Wide-Angle, Focus-Free Imaging
- Built for Multiple Applications
- Professional Temperature Analysis
- Software & Accessory Ecosystem
- No charging required
- No complex configuration
- No boot-up waiting time
- Compact and Portable
- Explore the Unknown, Discover the Unseen
- Observe animal activity traces at night
- Detect residual heat from campfire sources
- Monitor environmental temperature differences
- Quick Inspection Anytime, Fast Anomaly Detection
- Identify hot spots in electrical cabinets
- Inspect temperature rise in power distribution lines
- Monitor motor equipment temperatures
- Check HVAC air outlet performance
- See the Temperature, Bring Peace of Mind
- Check baby drink temperatures
- Inspect floor heating performance
- Detect air leakage around doors and windows
- Verify home air conditioner cooling and heating performance
- Vertical Mode
- Stationary Mode
- Desktop Tripod
- Handle Mode
- Extended Mode
What's Included?
- TP320A Thermal Camera
- Phone Clamp
- USB-C Cable Kit
- Complete Mounting Kit (Tripod, Extension Rod, Phone Holder, Ball Head)
- Carrying Case
- Quick Start Guide
- FOTRIC Genie App — Free Download
Technical Information
Specification
| Infrared Resolution | 320*240 |
|---|---|
| Super Resolution | 640*480 |
| IR Detector Type | Uncooled infrared focal plane detector with ceramic packaging |
| Thermal Sensitivity (NETD) | <35mK@30°C |
| Pixel Pitch | 12μm |
| Spectral Response Range | 8~14μm |
| Image Frame Rate | 25Hz |
| Field of View (FOV) | 60°*45° |
| Minimum Imaging Distance | 0.2m |
| Focal Length | 4mm |
| Aperture Number | F1.0 |
| Focusing Method | Focus-free |
| Temperature Measurement Range | -20~550°C |
| Temperature Span | -20~150°C/50~550°C |
| Temperature Measurement Accuracy | ±2°C or 2% whichever is larger (15°C~35 °C ambient temperature, target temperature >0 °C, calibrated at 1m distance.) |
| Temperature Alarm | Supports high or low temperature alarm for the global max or min temperature |
| Temperature Measurement Spot | 3 |
| Temperature Measurement Line | 3 |
| Temperature Measurement Box | 3 |
| Image Mode | Thermal Image, Thermal Image + Visible Light |
| Palette | Supports 10 colour palettes: Iron, Grey, Rainbow, Rain, Medical, GreyRed, GlowBow, MidGrey, MidGreen, Prism |
| USB Interface | USB Type-C, compliant with USB 2.0 standard |
| Typical Power Consumption | 0.5W |
| Protection Rating | IP40 (GB/T 4208 / IEC 60529) |
| Drop Resistance | Designed for 1-metre drop resistance |
| Operating Temperature | -20~50°C |
| Storage Temperature | -40~70°C |
| Relative Humidity | <95%RH |
| Dimensions | 71mm*33mm*16mm |
| Weight | 40g |
| FOTRIC Warranty Period | 1-year warranty for the whole unit |
| Compatible Systems | Android 12+ |
| APP | FOTRIC Genie, download and update from Google Play Store |
| Analysis Software | AnalyzIR Professional Thermal Imaging Analysis Software |
| Lens | L60 |
| Lens Field of View (FOV) | 60°*45° |
| Lens Spatial Resolution (IFOV) | 3.27mrad |
| Lens Minimum Imaging Distance | 0.2m |
| Lens Focal Length | 4mm |
| Lens Temperature Span | -20~150°C/50~550°C, calibrated at 1m distance |
Document Downloads
FOTRIC TP320A Portable Thermal Imaging Camera User Manual
FOTRIC TP320A Portable Thermal Imaging Camera Quick Start Guide
FOTRIC TP320A Portable Thermal Imaging Camera Brochure
