Guide TK612 Gen2 Thermal Imaging Monocular - Optional Ecology Kit

SKU
GU-TK612-ECO
Rating:
0%
(0)
Reward Points
:
1798
£1,798.80 £1,499.00
Free UK Delivery*
Advice & Support Call 01642 931329 or contact us
Price Match We won't be beaten, let us know
Guide TK612 Gen2 Thermal Imaging Monocular - Optional Ecology Kit

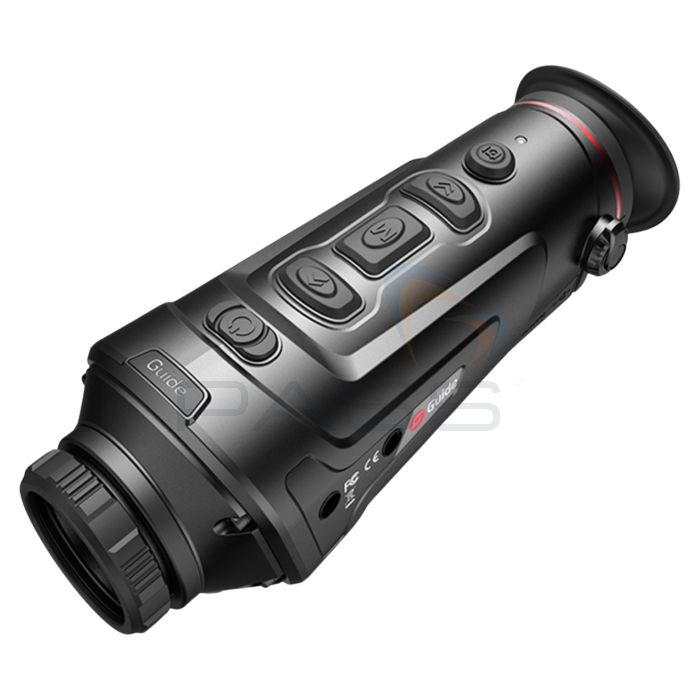

Guide TK612 Gen2 Thermal Imaging Monocular

The Guide TK612 is a Guide TK Gen2 Thermal Imaging Monocular optimised for ecology applications. As such it includes a wide-angle 10mm lens, 640 x 480 IR detector, 30mk thermal sensitivity, and patented image processing technology which delivers sharp, highly detailed thermal imaging even in complex scenes. Furthermore, to ensure easy subject identification, the Guide TK612 features a powerful 8x smooth zoom, pseudo-colour adjustment, six thermal palettes, multiple scene modes (Natural, Enhanced, and Highlight), and a picture-in-picture mode. It also offers approximate ranging and includes a built-in laser indicator and illuminator. The footage is visible on the TK612’s 0.4-inch, 1280x960px full-colour display and can be recorded to the thermal monocular or streamed via Wi-Fi and the Guide TrackIR App. The Guide TK612 Gen2 Thermal Imaging Monocular is a powerful, practical IR imager perfect for ecologists.

How To Use the TargetIR App

Guide Sensmart Tutorial | TK Series | Connect WIFI

  1. Press and hold the TK612's menu button to access the menu page
  2. Use the menu knob to find and activate the Wi-Fi option
  3. Turn your smartphone's WLAN on
  4. Open the TargetIR app
  5. View and manage the videos stored on your TK612 monocular using your smartphone and the TargetIR App

TK612 Options

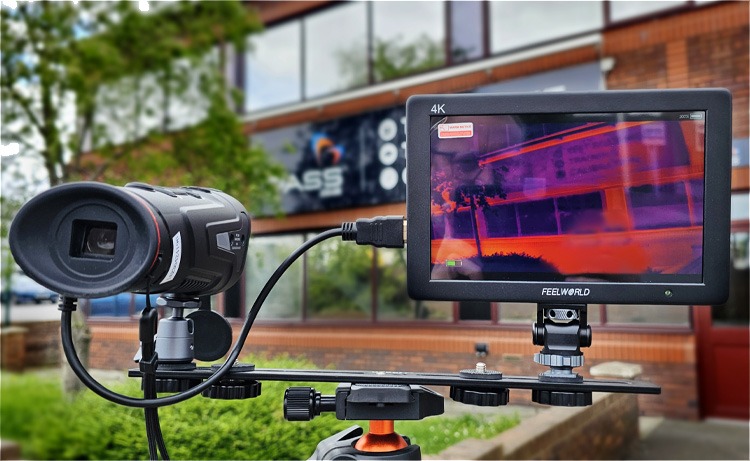

The TK612 is available independently or with an Ecology Kit. The Ecology Kit includes:

  • Feelworld T7 7-inch Camera Monitor
  • Dual Battery Kit and Charger for Feelworld T7
  • Tripod
  • 30cm Dual Flash Bracket
  • SmallRig Mini Ball Head

Guide TK612 Customer Reviews

"I jumped at the chance to get a 10mm Guide Track 612 thermal scope because I already own a 19mm Guide Track 19 and although I am very happy with its quality, its narrow field of view is a real drawback when surveying buildings as you need to position it really far back which is often impossible. I love how much of the building I can now get in the new 10mm [TK612] scope and the [following] photo shows a comparison between the two that I did by positioning the scopes side by side looking at the same building. You can see the 19mm only gets the corner in whereas the 10mm gets almost the whole building in. This will save so much time because I just have one camera to set up and 1 set of footage to review instead of two sets - it's a game changer!" ~ Jean Oudney, Myotis Bat Ecology

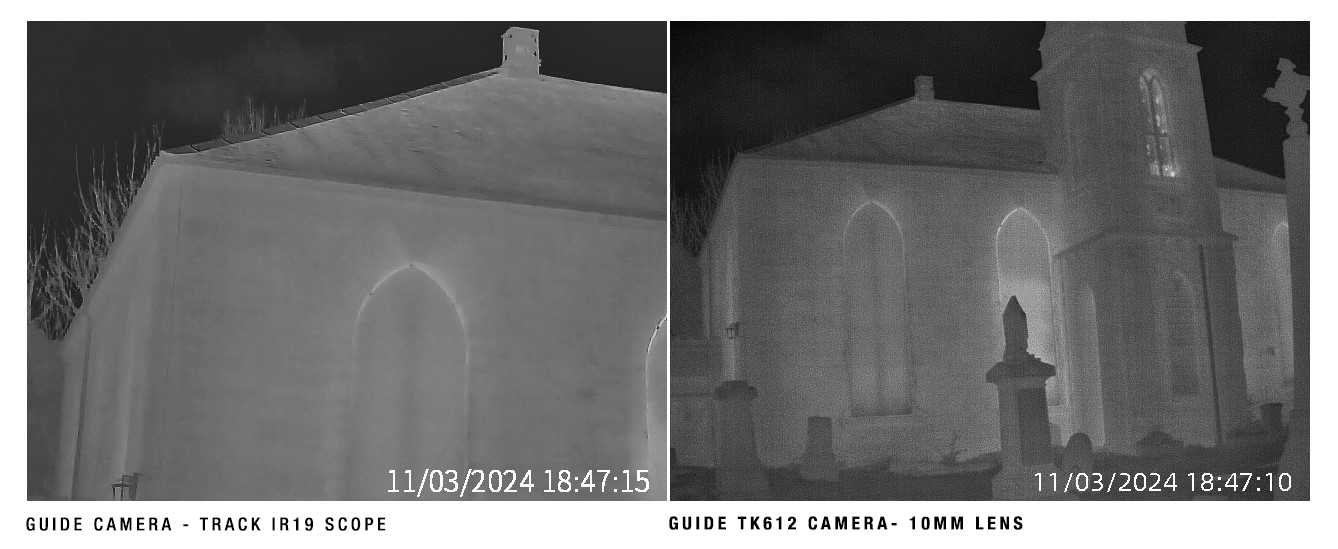

Two black and white thermal images of a church. The image on the left, taken with the Track 19, shows the corner of the church. The picture on the right, taken with the Track 612, shows the whole church and some of the graveyard.

Guide TK612 Captures a Bat Emerging from a Roof

Thermal Image of a Bat Emerging from a roof top using the Guide TK612 Thermal imaging Monocular

The Guide TK612 Gen2 Thermal Imaging Monocular is a powerful, practical IR imager perfect for ecologists.

Guide TK612 Gen2 Thermal Imaging Monocular Key Features

  • Thermal monocular optimised for ecology applications
  • Wide-angle 10mm lens
  • IR Detector: 640x480px
  • 30mK thermal sensitivity
  • Patented image processing technology
  • 3DNR
  • PureIR adaptive filtering
  • 8x smooth zoom
  • Pseudo-colour adjustment
  • Approximate ranging
  • Built-in laser indicator
  • Integrated illuminator
  • Six colour palettes: White Hot, Black Hot, Iron Red, Blue Hot, Green Hot, and Adjustable Red Hot
  • Scene modes: Natural, Enhanced, Highlight
  • Picture-in-Picture mode
  • Outdoor Lighting function: capture visible-light images
  • Laser Indicating function: locate subjects up to 200m away
  • 0.4-inch, 1280x960px, full-colour display
  • Adaptive LCOS eyepiece prevents condensation and fogging
  • Differential buttons for easy operation in total darkness
  • IP66
  • 1m drop tested
  • UN38.3 battery certification
  • RoHS, CE and FCC certification
  • Wi-Fi
  • Compatible with Guide’s TargetIR App
  • Stream footage and operate the TK612 remotely via the Guide TargetIR App
  • A powerful, practical IR imager perfect for ecologists

What's Included?

Option TK612 (Only) TK612 Ecology Kit
Guide TK612 Thermal Monocular
Power Adapter
USB Cable (Type C)
Micro HDMI Cable
Lens Cap
Wrist Strap
Inner Bag
Shoulder Strap
Quick Start Guide
Feelworld T7 7-inch Camera Monitor -
Dual Battery Kit and Charger for Feelworld T7  -
30cm Dual Flash Bracket -
SmallRig Mini Ball Head -

Guide TK612 Gen2 Thermal Imaging Monocular Technical Specifications

Infrared Detector
Detector type VOx, 8 to 14 μm
Detector resolution 640 × 480, 12 μm
NETD ≤30mk
Frame rate 50Hz
Lens
Focal length 10mm; F1.1
Field of view 44.3° × 33.1°
Optical zoom 1.1x
Digital zoom 1 ~ 8x
Focus Manual
Power
Battery type 2 built-in 18650 batteries (6000mAh)
Battery life ≥ 4.5 hours
Interface
USB Type C (USB 2.0 standard), supporting power supply and data access
Video interface micro HDMI
Mechanical interface UNC ¼"-20 (Tripod mounting), Mechanical expansion interface
Display
Display type 0.4'' FLCOS
Resolution 1280 × 960
Eyepiece Monocular, exit pupil distance≥10 mm, diopter adjustment: -4 to+2
Eyepiece zoom 13.8x
Video output Digital video
Functions
Recording function Photo/Video
Hot spot tracking Available
Rough ranging Available
PIP Upper left, Upper middle, Upper right, Closed
Scene modes Enhanced, Highlight and Natural
Colour palettes Black Hot, White Hot, Adjustable Red Hot, Iron Red, Blue Hot, Green Hot
Compensation modes Automatic, shutter and scene compensation
WIFI Transmission of real-time video via WIFI for remote control in the 2.4G frequency band and within 15 meters
Laser Laser indicator (up to 200m)
Other Illuminator
System
Language settings Chinese / English / Russian / German / French
Memory capacity 16 GB
Environmental
Storage temperature range -30 °C to 60 °C
Humidity 10 % to 95 % non-condensing
Shock 30 G at 11 ms half sine pulse (as per IEC60068-2-27)
Vibration 10 Hz~150 Hz~10 Hz 0.15 mm (as per IEC60068-2-6)
Drop 1 m
Encapsulation IP66
Certification IP66, FCC, CE, RoHS, EAC, un38.3
Detection Range
Detection range 300 m
Physical
Weight ≤490 g
Size (L × W × H) 192 × 65 × 71 mm
