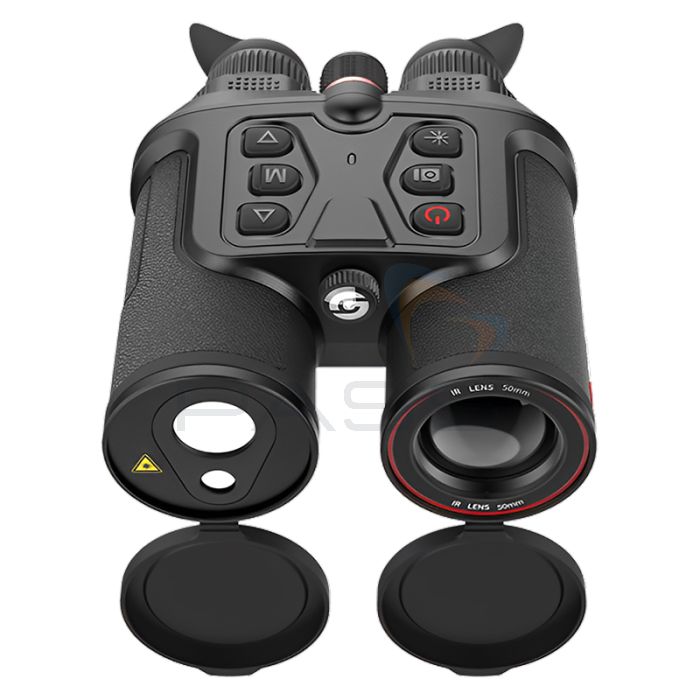

Guide TN Series Handheld Thermal Imaging Binoculars, 640x480px - Choice of Lens
Description
The TN Series provides up to 640 x 480 VOx uncooled IR resolution to deliver high-quality imaging. In addition, the binoculars have an image frame rate of 50Hz to ensure a moving target can be smoothly observed.
The picture in picture mode is an excellent tool that helps to identify the location of the target instantly, it magnifies the target in the PIP while you're still able to view the full picture on the display screen.
Guide Sensmart TN650 Handheld Thermal Binoculars
Choose from 35mm or 50mm lenses with 12μm.
Unboxing of the TN Series Handheld Thermal Imaging Binoculars
Key Features
- IR resolution up to 640 x 480, Superior image quality
- Quick location, laser ranger finder with 1000m/1500m accuracy
- Full color AMOLED 1024 x 768 high-definition display, easy observation
- Adjustable interpupillary distance between 60mm~70mm
- Well-designed PIP mode, highlighting the target
- Realize live image and remote control via WIFI connection
Applications
- Night hunting
- Law enforcement
- Search & Rescue
- Personal security
What's Included?
- Thermal Imaging Binoculars
- Power adapter (in compliance with FCC, CE, EAC, and ROHS)
- Type C cable
- Micro HDMI cable
- Lens cap
- Shoulder strap
- 2 detachable eye masks
- Carry bag
- 2 replaceable 18650 batteries (UN38.3)
- Battery charger
- Quick start guide
Product Range
- Guide TN630 Thermal Binocular - 640 x 480 px, 12μm,, 35mm Lens (50Hz)
- Guide TN650 Thermal Binocular - 640 x 480 px, 12μm,, 50mm Lens (50Hz)
Downloads
Brochures & Catalogues
Tech Specs
| TN630 | TN650 | |
|---|---|---|
| Sensor | ||
| Type | Uncooled VOx Infrared Detector, 8 to 14 μm | |
| Resolution | 640 x 480, 12 μm | |
| NETD | ≤30mK | |
| Frame Rate | 50Hz | |
| Lens | ||
| Focal Length | 35 mm, F1.2 | 50 mm, F1.2 |
| Field of View | 12.52° x 9.41° | 8.78° x 6.59° |
| Optical Zoom | 2.0x | 2.8x |
| Digital Zoom | 1 ~ 8x | |
| Focus | Manual | |
| Display | ||
| Display Type | 0.39' AMOLED x 2 | |
| Resolution | 1024 x 768 | |
| Eyepiece | Exit pupil distance≥16 mm; Diopter: -6 to +6; Interpupillary distance adjustment: 60mm to 70mm; Zoom: 13.8x | |
| Video Output | Digital video | |
| Range Performance | ||
| Detection Range | 1000 m | 1400 m |
| Hardware | ||
| Laser Rangefinder | Max. measuring range: 1500m | |
| Others | GPS, Compass, Gyroscope, Bluetooth | |
| Functions | ||
| Scene Modes | Enhanced, Highlight, and Natural | |
| Colour Palettes | Black Hot, White Hot, Adjustable Red Hot, Iron Red, Blue Hot, Green Hot | |
| Recording Function | Photo/Video | |
| WiFi | 2.4 G | |
| Supported Application | TargetIR | |
| Others | PIP, Hot spot tracking | |
| Power | ||
| Battery Type | 2 replaceable 18650 batteries | |
| Operating Time | ≥ 5.5 hours | |
| Interface | ||
| USB | USB Type-C | |
| Video Interface | Micro HDMI | |
| Mechanical Interface | UNC ¼"-20 (Tripod mounting, L-bracket is required), Mechanical expansion interface | |
| System | ||
| Language Settings | Chinese / English / Russian / German / French | |
| Memory Capacity | 16 GB | |
| Environmental | ||
| Operating temperature | -30 °C to 50 °C | |
| Storage temperature | -40 °C to 60 °C | |
| Humidity | 10 % to 95 % non-condensing | |
| Shock | 30 G at 11 ms half-sine pulse (as per IEC60068-2-27) | |
| Drop | 1 m | |
| Encapsulation | IP66 | |
| Certification | IP66, FCC, CE, RoHS, EAC, un38.3 | |
| Physical | ||
| Weight | ≤860 g | ≤880 g |
| Size | 162 x 146 x 70 mm | |
