Description

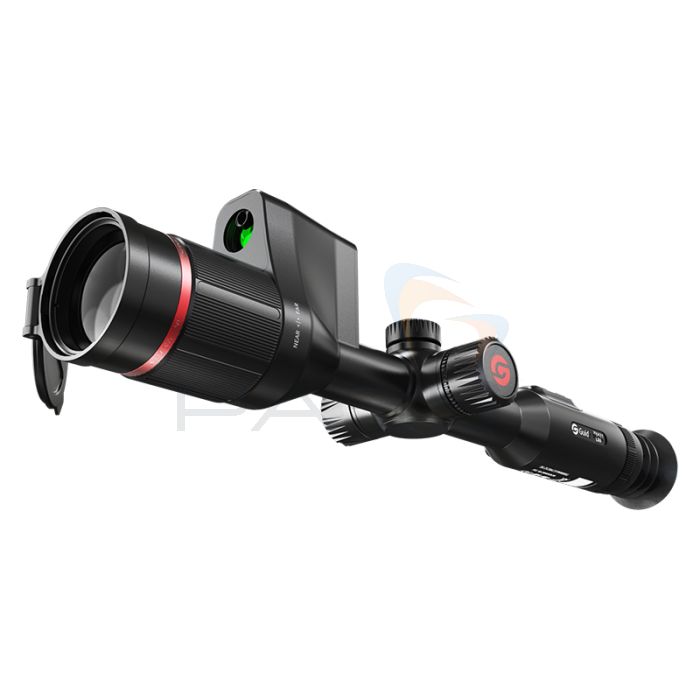

A high-quality thermal imaging resolution of 640 x 480 and a pitch of 12µm provide clear distinctions for enhanced details of your target and the surrounding area. These Guide TU LRF scopes are also able to identify prey up to 1500 metres away during night hunting thanks to their laser rangefinders. Ideal for law enforcement agencies, border patrol agencies, hunters, and outdoor lovers.
Choose from 35mm or 50mm lenses with 12μm.
Introducing Guide TU Series Thermal Imaging Attachment
Key Features
- HD AMOLED display for higher image quality and reduced visual fatigue
- The PureIR algorithm for high-sensitivity thermal images
- Built-in laser rangefinder for 1500m accurate target detection
- Super long battery life of up to 12 hours
- OTA firmware upgrade by connecting to the APP
- Photo and video recording to keep the best moments
- IP67 encapsulation, resistant to 800G shock
- User-friendly improved left-hand operation experience and optimized opening direction of USB cover
Guide Sensmart Tutorial | TU Series | Laser Pointer Calibration
Applications
- Night hunting
- Law enforcement
- Search & Rescue
- Personal security
What's Included?
- Thermal Imaging Scope
- Lens cap
- Eye mask
- 5V2A adapter (US, UK, AU, and EU)
- Desktop charger
- Customised battery x 2
- Extended clip x 2
- USB Type-C cable
- Micro HDMI cable
- Quick start guide
Unboxing of Guide Sensmart TU Gen2 LRF Thermal Imaging Scope
Product Range
- Guide TU631-LRF Thermal Scope with Laser Ranging - 640 x 480 px, 12μm, 35mm Lens (50Hz)
- Guide TU651-LRF Thermal Scope with Laser Ranging - 640 x 480 px, 12μm, 50mm Lens (50Hz)
Downloads
Brochures & Catalogues
Tech Specs
TU631 LRF | TU651 LRF | |
---|---|---|
Sensor | ||
Type | Uncooled VOx Infrared Detector, 8 to 14 μm | |
Resolution | 640 x 480, 12 μm | |
NETD | ≤30mk | |
Frame Rate | 50Hz | |
Lens | ||
Focal Length | 35 mm; F1.0 | 50 mm, F1.0 |
Field of View | 12.5° x 9.4° | 8.8° x 6.6° |
Optical Zoom | 1.65x | 2.36x |
Digital Zoom | 1x ~ 4x | 1x ~ 8x |
Focus | Manual | |
Display | ||
Display Type | 0.39' AMOLED | |
Resolution | 1440 x 1080 | |
Eyepiece | Exit pupil distance ≥ 48 mm; Diopter ± 4 | |
Eyepiece Zoom | 14x | |
Video Output | Digital video | |
Hardware | ||
Laser Rangefinder | Max. measuring range: 1500m | |
Range Performance | ||
Detection Range | 1400 m | 2000 m |
Functions | ||
Scene Modes | Enhanced, Highlight, and Natural | |
Colour Palettes | White Hot, Black Hot, adjustable Red Hot, Green Hot, Iron Red, Blue Hot | |
Recording Function | Photo/Video | |
WiFi | 2.4G | |
Supported Application | TargetIR | |
Firmware OTA | Upgrade device firmware via app connection | |
Others | PIP, Hot spot tracking | |
Power | ||
Battery Type | Single 18650 battery (built-in) and customised battery (external) | |
Operating Time | ≥ 12 hours | |
Environmental | ||
Operating temperature | -30 °C to 50 °C | |
Storage temperature | -40 °C to 70 °C | |
Humidity | 10 % to 95 % non-condensing | |
Shock | 800 G at 1 ms half-sine pulse (as per IEC60068-2-27) | |
Encapsulation | IP67 | |
Certification | FCC, CE, RoHS, EAC, un38.3 | |
Interface | ||
USB | USB Type-C | |
Video Interface | Micro HDMI | |
Mechanical Interface | Picatinny | |
Tube Diameter | Standard 30 mm | |
System | ||
Language Settings | English / Russian / German / French / Italian / Spanish / Japanese / Korean / Polish | |
Memory Capacity | 128GB | |
Physical | ||
Weight | ≤1250 g (without eye mask and battery) | |
Size | ≤377 x 107 x 69 mm (without eye mask) |
0 Reviews
Overall Rating
Additional Information
SKU | GU-TU-LRF-640 |
---|
