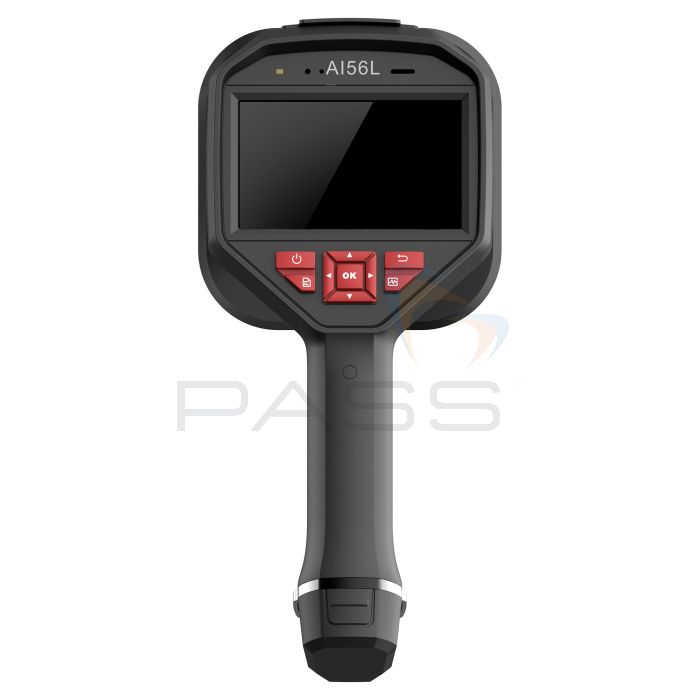

Hikmicro AI56L Acoustic Imaging Camera
- Adjustable Bandwidth
- Free Analyser Acoustic software
- 800 x 480 Resolution
SKU
AI56L
MPN
HM-AP56-W/W-AI56L
The Hikmicro AI56L Acoustic Imaging Camera locates gas leaks and detects partial discharge in high-voltage systems. It has a 64-microphone MEMS array, adjustable bandwidth of 0–96 kHz, and advanced filtering.
Its 4.3-inch touchscreen with 800×480 resolution offers real-time data, while the included Analyser Acoustic software supports in-depth analysis, reporting, and audit documentation without extra costs.
The AI56L has three hot-swappable batteries and a dual-bay charger, providing up to 10 hours of runtime. Voice and text annotations, eight acoustic palettes, and intuitive controls make it a reliable, field-ready solution for industrial maintenance teams.
Key Features
- 64 Low-noise MEMS Microphones
- Adjustable Bandwidth
- Real-time sound source localization
- Real-time Display of Leakage Data
- Analyser Acoustic software for analysing images and export reports
- Interchangeable Battery System
- Voice & Text Annotations
- 800 x 480 Resolution
- 4.3' LCD Touch Screen
- Supports 8 acoustic palettes
What's Included?
- Hikmicro AI56L Acoustic Imaging Camera
- HDMI Cable
- USB Cable
- MIC Protective Cap
- Hand Strap
- SD Card
- Three batteries
- Charging Base
- Carrying Case
- Accessories Bag
- Power Adaptor
- Four Adaptors
- Quick Start Guide
- Calibration Certificate
Comparison Table
| AI56 | AI56L | AI76 | |
|---|---|---|---|
| Number of Microphones | 64 | 136 | |
| Bandwidth | 0 kHz to 96 kHz, adjustable range MEMS sampling frequency: 192 kHz | ||
| Distance | 0.3m~150m | ||
| Camera FOV | 50.2°× 35.4° | ||
| Acoustic Image Resolution | 800 x 480 | ||
| Leak Rate | >0.008 l/min @ 6 bar from 0.5 m (1.64 ft) >0.013 l/min @ 5 bar from 1 m (3.28 ft) |
>0.0047 l/min @ 6 bar from 0.5 m (1.64 ft) >0.0073 l/min @ 5 bar from 1 m (3.28 ft) |
|
| Dynamic Range | Low Limit: <-15dB, High Limit:>120dB | ||
| Discharge Detection | Automatic detection 50 / 60 Hz | ||
| Discharge Type | Corona Discharge, Particle Discharge, Floating Discharge, Surface Discharge | N/A | Corona Discharge, Particle Discharge, Floating Discharge, Surface Discharge |
| Display | 800 × 480 Resolution, 4.3” LCD Touch Screen | ||
| Digital Zoom | 1.0x to 16.0x continuous | ||
Technical Information
Specification
| Acoustic | |
|---|---|
| Number of Microphones | 64 |
| Bandwidth | 0 kHz to 96 kHz, adjustable range MEMS sampling frequency: 192 kHz |
| Distance | 0.3m~150m |
| Camera FOV | 50.2°× 35.4° |
| Acoustic Image Resolution | 800 × 480 |
| Acoustic Image Palette | White Black, Black White, Rainbow, Fusion, Ironbow, Red Black, Rain, Blue Red |
| Leak Rate | >0.008 l/min @ 6 bar from 0.5 m (1.64 ft) >0.013 l/min @ 5 bar from 1 m (3.28 ft) |
| Sound Intensity Display | Peak Point |
| Acoustic Image Frame Rate | 25 fps |
| Dynamic Range | Low Limit: <-15dB High Limit: >120dB |
| Discharge Detection | Automatic detection 50 / 60 Hz |
| Image Display | |
| Visual Camera | 2688 x 1944 (5 MP) |
| Display | 800 × 480 Resolution, 4.3’LCD Touch Screen |
| Screen Brightness | Manual/Auto |
| Digital Zoom | 1.0x to 16.0x continuous |
| Data Storage and Communication | |
| Image Storage Capacity | 20,000 images |
| Annotations | Voice note: max. 60 seconds; Text note: max. 255 characters |
| Video Storage Capacity | 60 hours |
| Video File Format | MP4 |
| Extendable Memory Card | Extendable 128 GB SD Card |
| General | |
| Wi-Fi | 802.11 b/g/n (2.4 GHz and 5 GHz) |
| USB Interface | USB Type-C |
| HDMI Interface | HDMI-D |
| Battery Type | Interchangeable and Rechargeable Li-ion Battery |
| Battery Operating Time | Approx. 3.5 hours x3 for a total of 10.5 hours |
| Battery Charging Time | 5 hours to full charge |
| Drop Test Height | 1.2 m (3.94 ft) |
| Safety | IEC 61010-1 |
| EMC | EN 301 489-1,EN 301 489-17,EN IEC 61000-6-2,EN IEC 61000-6-3,EN 61326-1 |
| Vibration | 2g, IEC 60068-2-6 |
| Shock | 25 g, IEC 60068-2-27 |
| Working Temperature Range | -20 °C to 50 °C (-4 °F to 122 °F) |
| Storage Temperature Range | -20 °C to 60 °C (-4 °F to 140 °F) |
| Relative Humidity | <95 % non-condensing |
| Weight | Approx. 940 g (2.07 lb) |
| Dimension | 292.2 x 127 x 110.7 mm (11.50 x 5.00 x 4.36 in) |
| Tripod Mounting | UNC ¼”-20 |
| Power Supply | 5V DC/2A (Charging via USB) |
| Protection level | IP54 |
Document Downloads
Hikmicro AI56L Acoustic Camera Datasheet
Hikmicro AI Series Acoustic Imaging Camera User Manual
Hikmicro AI Series Acoustic Imaging Camera Quick Start Guide
Hikmicro AI Series Acoustic Camera Brochure
