Hikmicro AI76 Acoustic Imaging Camera

136 Low-noise MEMS Microphones
Real-time estimated leak rate
Smart Partial discharge detection

SKU

AI76

MPN

HM-AP5DN-W/W-AI76

View All Hikmicro Thermal Imaging Cameras & Scopes

Description Technical Info Reviews

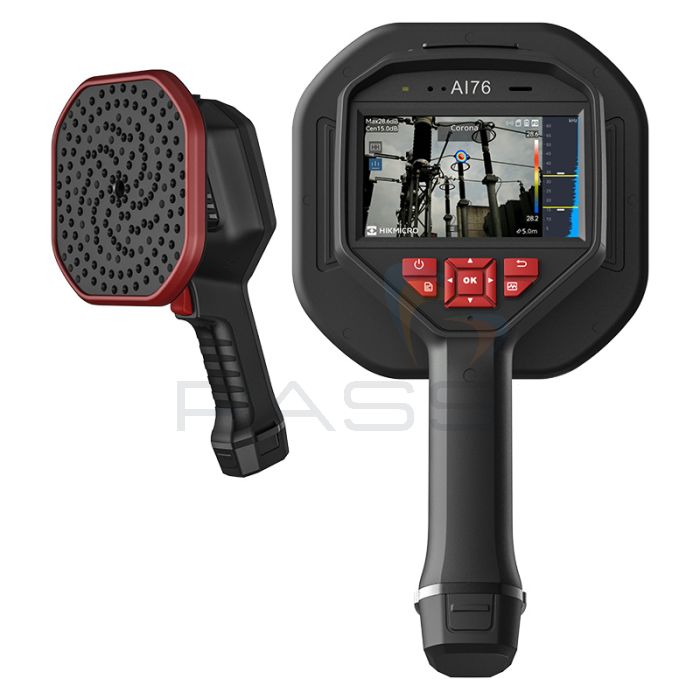

The HIKMICRO AI76 is an acoustic imaging camera designed for the detection of gas leaks and partial discharges. The instrument features a large 4.3" LCD touch screen, which displays results superimposed on a digital image, enabling users to swiftly pinpoint problem sources. It is equipped with 136 low-noise MEMS microphones and offers a flexible bandwidth range from 0 kHz to 96 kHz.

Analyzer Acoustic software can process images taken by the AI76 and generate reports. The instrument can help uncover potential safety hazards, streamline troubleshooting processes, and prevent additional expenses associated with equipment malfunctions and operational interruptions.

136 Low-noise MEMS Microphones, real-time sound source localization
Real-time estimated leak rate, leak cost, and leak level for gas leak detection
Smart Partial discharge detection can identify corona, floating, surface, and particle discharges
Analyzer acoustic software for analyzing images and export reports
800 x 480 Resolution, 4.3' LCD Touch Screen
Interchangeable Battery System
Voice & Text Annotations
Supports 8 acoustic palettes

What's Included?

Hikmicro AI76 Acoustic Imaging Camera
Mini HDMI to HDMI Cable
2-in-1 USB-C to USB-CA Cable
Tripod Mount Adaptor
MIC Protective Cap
Tripod Mount Adaptor
Hand Strap
Torx Screwdriver
Screw
Hand Strap Brackets Left and Right
64GB Micro SD Card
Interchangeable Battery
Charging Base with Adaptor and Plugs (UK/US/EU/AU)
Handy Carrying Case
Printed Quick Start Guide
Calibration Certificate

£7,829.00

£9,394.80 inc vat

Free Delivery*

Stock Due: Typically 1-2 Weeks

7829 Reward Points 60 Days Return

Technical Information

Specification

Acoustic
Number of Microphones	136
Acoustic Image Resolution	800 x 480
Bandwidth	0 kHz to 96 kHz, adjustable range MEMS sampling frequency: 192 kHz
Distance	0.3m~150m
Acoustic Image Palette	White Black, Black White, Rainbow, Fusion, Ironbow, Red Black, Rain, Blue Red
Camera FOV	50.2° x 35.4°
Sound Intensity Display	Peak Point
Acoustic Image Frame Rate	25 fps
Dynamic Range	Low Limit: <-15dB High Limit: >120dB
Leak Rate	>0.0047 l/min @ 6 bar from 0.5 m (1.64 ft) >0.0073 l/min @ 5 bar from 1 m (3.28 ft)
Discharge Detection	Automatic detection 50 / 60 Hz
Discharge Type	Corona Discharge, Particle Discharge, Floating Discharge, Surface Discharge
Image Display
Display	800 x 480 Resolution, 4.3' LCD Touch Screen
Screen Brightness	Manual/Auto
Digital Zoom	1.0x to 16.0x continuous
Data Storage and Communication
Storage Media	Removable 64 GB SD Card
Image Storage Capacity	18000 images
Annotations	Voice note: max. 60 seconds Text note: max. 255 characters
Video Storage Capacity	60 hours
Video File Format	MP4
General
Wi-Fi	802.11 b/g/n (2.4 GHz and 5 GHz)
Bluetooth	Bluetooth 4.1
USB Interface	USB Type-C
HDMI Interface	HDMI-D
Battery Operating Time	Approx. 2 hours
Battery Type	Dismountable and Rechargeable Li-ion Battery
Battery Charging Time	5 hours to full charge
Protection level	IP54
Power Supply	5V DC/2A (Charging via USB)
Drop Test Height	1.2 m (3.94 ft)
Safety	IEC 61010-1
EMC	EN 301 489-1,EN 301 489-17,EN IEC 61000-6-2,EN IEC 61000-6-3,EN 61326-1
Working Temperature Range	-20 °C to 50 °C (-4 °F to 122 °F)
Storage Temperature Range	-20 °C to 60 °C (-4 °F to 140 °F)
Relative Humidity	<95 % non-condensing
Weight	Approx. 1200 g (2.64 lb)
Dimension	310.4mm x 165mm x 117mm (12.22 x 6.49 x 4.61 in)
Tripod Mounting	UNC ¼”-20
Vibration	2g, IEC 60068-2-6
Shock	25 g, IEC 60068-2-27
