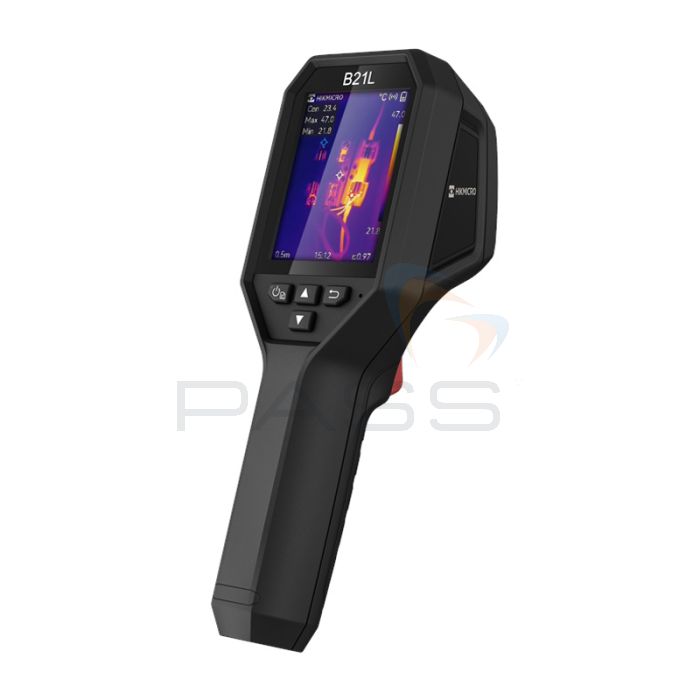

Hikmicro B21L Handheld Thermal Camera
- IR resolution: 256 x 192px
- Selectable thermal colour palettes; High Temperature Alarm; Macro Mode; & SuperIR function
- Wi-Fi connectivity
Designed for finding faults fast, the Hikmicro B21L Handheld Thermal Camera is an accurate, adaptable infrared imager ideal for building, HVAC, and automotive applications. Equipped with a VOx detector, 256 x 192px IR resolution, 40mk thermal sensitivity, 25Hz frame rate, and image enhancement algorithms, the Hikmicro B21L Handheld Thermal Camera captures clear, smooth radiometric images. It can measure temperatures between -20°C and +550°C to an accuracy of ±2°C/2% and will automatically track the maximum, minimum, and centre temperatures. The Hikmicro B21L Handheld Thermal Camera also includes useful imaging functions such as selectable thermal colour palettes; a High Temperature Alarm; Macro Mode; and SuperIR function. Imaging is indicated on the 3.2-inch LCD and may be streamed via Wi-Fi to a smartphone/tablet with the Hikmicro Viewer App installed. Finally, Hikmicro’s Analyser Software can be used to analyse thermal data and create reports.
Hikmicro B21L Handheld Thermal Camera Key Features
- Thermal camera suitable for building, HVAC, and automotive applications
- IR resolution: 256 x 192px
- Thermal sensitivity: 40mk
- Temperature range: -20°C to +550°C
- Image enhancement algorithms
- VOx detector
- Clear, fully radiometric images
- Automatically tracks maximum, minimum, and centre temperatures
- Accuracy: ±2°C/2%
- SuperIR functions: increases resolution to 320 x 240px
- Selectable thermal palettes
- Frame rate: 25Hz
- High-temperature alarm with speaker and torch alerts
- Clip-on macro lens
- Take temperature readings of components as small as 500 microns
- 3.2-inch LCD
- Wi-Fi connectivity
- Stream thermal images to a smartphone or tablet with the Hikmicro Viewer App installed
- Supplied with Hikmicro Analyser Software
- Designed for fast fault finding
- An accurate, adaptable thermal imager
What’s Included?
- Hikmicro B21L Handheld Thermal Camera
- Wrist Strap
- Charger
- USB Cable
- Power Adapter
- Quick Start Guide
- Calibration Certificate
Call 01642 265428 or complete the form:
Hikmicro B21L Handheld Thermal Camera Technical Specifications
| Infrared Image | |
| IR Resolution | 256 × 192 (49,152 pixels) |
| SuperIR | Yes, on captured thermal images |
| NETD | < 40 mK (@ 25 °C, F#=1.0) |
| Image Frequency | 25 Hz |
| Detector Pitch | 12 μm |
| Spectral Range | 7.5 to 14 μm |
| Focal Length | 3.6 mm |
| F-number | F1.0 |
| Field of View (FOV) | 37.2° × 50.0° |
| Spatial Resolution (IFOV) | 3.3 mrad |
| Min. Focus Distance | 0.3 m (0.98 ft) |
| Focus Mode | Focus Free |
| Image Display | |
| Display | 240 × 320 Resolution, 3.2”LCD Screen |
| Colour Palettes | White Hot, Black Hot, Rainbow, Ironbow |
| Colour Alarm | Above alarm |
| Image Modes | Thermal |
| Measurement and Analysis | |
| Object Temperature Range | -20°C to 550°C (-4°F to 1022°F) |
| Accuracy | Max. (± 2°C/3.6°F, ± 2%), for ambient temperature 15°C to 35°C (59°F to 95°F) and object temperature above 0°C (32°F) |
| Measurement Tools | Center Spot, Hot Spot, Cold Spot User-definable: 3 spots |
| Level and Span Mode | Auto/Manual |
| Data Storage and Communication | |
| Storage Media | Built-in 16 GB flash memory |
| Image Storage Capacity | Approx. 90,000 Images |
| General | |
| Wi-Fi | 802.11 b/g/n (2.4 GHz) |
| USB Interface | USB Type-C |
| Battery Type | Rechargeable Li-ion battery |
| Battery Operating Time | Approx. 6 hours |
| Battery Charging Time | Approx. 3 hours fully charged |
| Protection Level | IP54 |
| Drop Test Height | 2 m (6.56 ft) |
| Working Temperature Range | -10°C to 50°C (14°F to 122°F) |
| Storage Temperature Range | -20°C to 60°C (-4°F to 140°F) |
| Relative Humidity | < 95% non-condensing |
| Weight | Approx. 380 g (0.84 lb) |
| Dimension | 221.7 mm × 73.5 mm × 123.8 mm (8.73’’ × 2.89’’ × 4.87’’) |
| Tripod Mounting | UNC ¼”-20 |
| Laser | Yes, Class II |
