Hikmicro Eco/Eco-V Handheld Thermal Camera

SKU
Hikmicro-Eco
Rating:
0%
(0)
Reward Points
:
214
£214.80 £179.00
2 Options in Stock
Advice & Support Call 01642 931329 or contact us
Price Match We won't be beaten, let us know

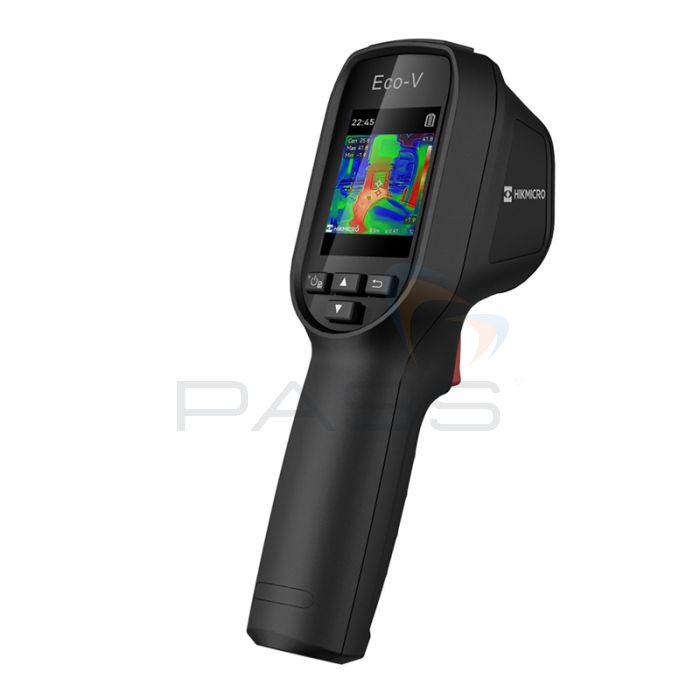

Hikmicro Eco-V Thermal Camera

Hikmicro Eco/Eco-V Handheld Thermal Camera

Designed for identifying mechanical and electrical faults, the Hikmicro Eco-Series Handheld Thermal Camera captures radiometric thermal images. To this end, it includes a 96 x 96px IR detector, a 50° wide-angle lens, and can measure temperatures between -20°C and +550°C to an accuracy of ±2°C/2%. The Eco automatically tracks the minimum, maximum, and centre temperatures. Additionally, it supports SuperIR imaging which increases the thermal resolution to 240 x 240px and offers a choice of six thermal palettes (White Hot, Black Hot, Rainbow, Ironbow, Red Hot, and Fusion). Images may be saved to the Hikmicro Eco’s built-in 4GB memory. The Eco also features an integrated 3350mAh Li-Ion rechargeable battery which delivers an operating time of up to eight continuous hours. The Hikmicro Eco Thermal Cameras’ battery life can be further extended using the Auto-Power-Off function which may be set to activate after five, ten, or twenty minutes of idleness.

Hikmicro Eco-V Advantages

There are two models in the Hikmicro Eco series: the Eco and Eco-V. The Eco-V differs in that it also includes a 0.3MP digital camera allowing engineers to switch between Thermal, Visual, and Fusion imaging modes at the touch of a button. Fusion imaging mode overlays digital details onto a corresponding thermal image, creating a combined picture with greater clarity.

Furthermore, visual and thermal images can be saved simultaneously to the Hikmicro Eco-V’s internal memory.

The Hikmicro Eco/Eco-V Handheld Thermal Camera is a practical, precise thermal imaging camera perfect for troubleshooting.

Hikmicro Eco/Eco-V Handheld Thermal Camera Key Features

  • A rugged infrared imager capable of capturing radiometric images
  • Ideal for identifying mechanical and electrical faults
  • IR detector: 96 x 96px IR detector
  • Frame rate: 25Hz
  • 50° wide-angle lens
  • Find air infiltration, water leaks, and insulation issues
  • Six colour palettes: White Hot, Black Hot, Rainbow, Ironbow, Red Hot, and Fusion
  • Automatically tracks min/max/centre temperatures
  • Temperature range: -20°C to +550°C
  • Accuracy: ±2°C/2%
  • 2m drop tested
  • IP54-rated casing
  • 4GB memory
  • Built-in 3350mAh Li-Ion rechargeable battery
  • Battery life: 8 hours
  • Auto Power-Off function
  • Eco-V includes a 0.3MP digital camera
  • Save visual and infrared images simultaneously to the Eco-V
  • Switch between Thermal, Visual, and Fusion imaging modes on the Eco-V
  • Practical, precise IR-imaging camera perfect for troubleshooting

What’s Included?

  • Hikmicro Eco OR Eco-V Handheld Thermal Imaging Camera
  • USB 2.0A to USB Type-C Cable
  • Quick Start Guide
  • Calibration Certificate

Hikmicro Eco/Eco-V Handheld Thermal Camera Technical Specifications

Eco Eco-V
Infrared Image
IR Resolution 96 × 96 (9,216 pixels) 96 × 96 (9,216 pixels)
SuperIR 240 x 240 (57,600 pixels) 240 x 240 (57,600 pixels)
NETD < 50 mK (@ 25 °C, F#=1.0) < 50 mK (@ 25 °C, F#=1.0)
Image Frequency 25 Hz 25 Hz
Detector Pitch 12 μm 12 μm
Spectral Range 7.5 to 14 μm 7.5 to 14 μm
Focal Length 1.35 mm 1.35 mm
F-number F1.0 F1.0
Field of View (FOV) 50° × 50° 50° × 50°
Spatial Resolution (IFOV) 8.89 mrad 8.89 mrad
Focus Mode Focus Free Focus Free
Distance to Spot Ratio (D:S) 112:1 112:1
Min. Focus Distance 0.1m (0.33 ft) 0.1m (0.33 ft)
Image Display
Visual Camera - 640 × 480
Display 240 × 320 Resolution, 2.4”LCD Screen 240 × 320 Resolution, 2.4”LCD Screen
Image Modes Thermal Thermal/Visual/Fusion
Colour Palettes White Hot, Black Hot, Rainbow, Ironbow, Red Hot,Fusion White Hot, Black Hot, Rainbow, Ironbow, Red Hot,Fusion
Colour Alarm Above alarm Above alarm
Measurment and Analysis
Object Temperature Range -20°C to 550°C (-4 °F to 1022 °F) -20°C to 550°C (-4 °F to 1022 °F)
Accuracy Max (±2°C/3.6°F, ±2%) at ambient temperature 25°C (77°F) and object temperature above 0°C (32°F) Max (±2°C/3.6°F, ±2%) at ambient temperature 25°C (77°F) and object temperature above 0°C (32°F)
Measurement Tools Center Spot, Hot Spot, Cold Spot Center Spot, Hot Spot, Cold Spot
Level and Span Mode Auto/Manual Auto/Manual
Data Storage and Communication
Storage Media Built-in 4 GB flash memory Built-in 4G eMMC (user available storage space is less than the nominal capacity)
Image Storage Capacity Approx. 30,000 Images Approx. 18,000 Images
General
USB Interface USB Type-C USB Type-C
Laser Yes, Class II Yes, Class II
Battery Type Rechargeable Li-ion battery Rechargeable Li-ion battery
Battery Operating Time Approx. 8 hours Approx. 8 hours
Battery Charging Time Approx. 3 hours fully charged(Adapter Output:5 V 2 A ) Approx. 3 hours fully charged(Adapter Output:5 V 2 A )
Protection Level IP54 IP54
Drop Test Height 2 m (6.56 ft) 2 m (6.56 ft)
Working Temperature Range -10 °C to 50 °C (14 °F to 122 °F) -10 °C to 50 °C (14 °F to 122 °F)
Storage Temperature Range -40 °C to 70 °C (-40 °F to 158 °F) -40 °C to 70 °C (-40 °F to 158 °F)
Relative Humidity < 95% non-condensing < 95% non-condensing
Weight Approx. 290 g (0.64 lb) Approx. 290 g (0.64 lb)
Dimension 196 × 117 × 59 mm (7.7 × 4.6 × 2.3 in) 196 × 117 × 59 mm (7.7 × 4.6 × 2.3 in)
Tripod Mounting UNC ¼”-20 UNC ¼”-20
