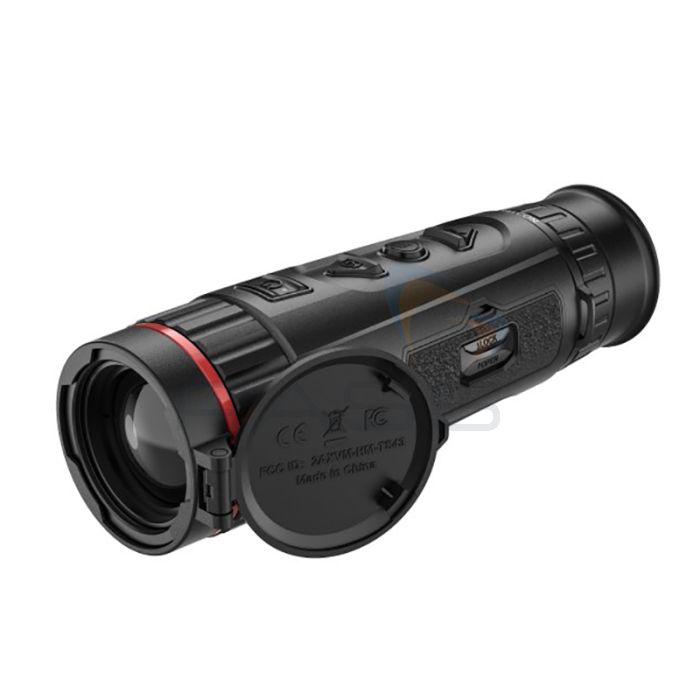

A cylindrical, ergonomically designed imager with robust magnesium housing, SDLC lens coating, and replaceable, rechargeable battery, the Hikmicro Falcon Pro FQ Thermal Monocular captures ultra-clear, highly detailed infrared images and footage. To this end, it is equipped with a high-definition (640 x 512px) 12µm thermal sensor, a large f/0.9 aperture lens, and an Image Pro image-enhancing algorithm. Pictures and videos are indicated on the full colour 1024 x 768px HD OLED display and may be recorded to the built-in 64 GB memory. Alternatively, media may be shared to the Hikmicro Sight App. Additionally, the Hikmicro Falcon Pro FQ Thermal Monocular includes useful imaging functions such as four thermal colour palettes, an 8x digital zoom, and a hot tracking mode. The Hikmicro Falcon Pro FQ Thermal Monocular is a simple-to-use, sensitive handheld thermal imager with a 2600m detection range.
Hikmicro Falcon Pro FQ Thermal Monocular Key Features
- Delivers detailed, ultra-clear thermal images and footage in all weather conditions
- Handheld monocular with a high-definition thermal sensor and large aperture lens
- High thermal sensitivity: <20mK
- TCR vanadium oxide thin film material
- Precise detail recognition even when the temperature difference is small
- High-end 12µm thermal sensor with a 640 x 512px resolution
- High-performance aspheric germanium large f/0.9 aperture lens
- Image Pro image processing algorithm
- Long detection range: up to 2600m
- 8x digital zoom
- Four thermal colour palettes
- Hot tracking mode
- Full colour 1024 x 768px HD OLED display
- Photo/Video Recording function with a built-in 64GB memory
- Compatibility with the Hikmicro Sight App for sharing images and footage
- Cylindrical shape enables one-handed operation
- Suitable for right- and left-handed users
- Conveniently placed buttons
- Different shaped buttons for quick and easy identification of functions while wearing gloves and/or in the dark
- Soft, skin-friendly material for a better feel
- Robust magnesium housing
- IP67 waterproof-rated
- SDLC coating on the lens
- Replaceable, rechargeable high-capacity battery provides six hours of operation
- An ordinary power bank may be connected via a type-C interface for use as an external power supply
- A simple-to-use, sensitive handheld thermal imager
What’s Included?
- Your Choice of Hikmicro Falcon Pro FQ25 OR FQ35 OR FQ50 Thermal Monocular
- Cloth
- 2x Batteries
- Charger
- USB Cable
- Wrist Strap
- Neck Strap
- Protective Bag
- Carrying Case
- Quick Start Guide
Datasheets
Manuals & Guides
FQ25 | FQ35 | FQ50 | |
---|---|---|---|
Thermal Module | |||
Image Sensor | VOx Uncooled Focal Plane Arrays | ||
Max. Resolution | 640 x 512 | ||
Frame Rate | 50Hz | ||
Pixel Interval | 12µm | ||
Response Waveband | 8µm to 14µm | ||
NETD | Less than 20 mK (@25°C),F#=1.0 | ||
Lens (focal length) | 25mm, F1.0 | 35mm, F1.0 | 50mm, F0.9 |
Detection Range | 1200m | 1800m | 2600m |
Focus Mode | Focus Ring | ||
Field of View(H x V), Degrees / m @100m | 17.5° × 14.0° / 30.8m × 24.6m | 12.54° x 10.05°/22.0m x 17.6m | 8.75° x 7°/15.3m x 12.2m |
Min. Focusing Distance | 2.5m | 3.5m | 5.0m |
Magnification | 1.4×-11.2x (8x) Support Continuous Zooming |
1.82x-14.56x (8x) Support Continuous Zooming | 2.6x-20.8x (8x) Support Continuous Zooming |
Image Display | |||
Display | 1024 x 768, 0.39 inch, OLED | ||
Contrast Adjustment | Yes | ||
Brightness Adjustment | Yes | ||
Palettes | Black hot, white hot, red hot, fusion | ||
FFC (Flat Field Correction) Mode | Auto, Manual, External Correction | ||
Exit Pupil | 4mm | ||
Eye Relief | 15mm | ||
Diopter (Range) | -5D to +3D | ||
Image Pro | Yes | ||
General | |||
Protection Level | IP67 | ||
Weight | 450g without Battery | 455g without Battery | 586g without Battery |
Dimension | 193.8mm x 66.9mm x 58.3mm | 190.3mm x 58.3mm x 65.2mm | 206.5mm x 80.2mm x 68.2mm |
Work Temperature/Humidity | From -30°C to 55°C (-22°F to 131°F); Humidity: 90% or Less | ||
System | |||
Record Video | Yes | ||
Capture Snapshot | Yes | ||
Hotspot | Yes | ||
Standby Mode | Yes | ||
Storage | Built-in Memory Module (64 GB) | ||
PIP | Yes | ||
Hot Track | Yes | ||
Distance Measurement | Yes | ||
Audio Recording | Yes | ||
Power Supply | |||
Battery Type | Replaceable and Rechargeable Li-ion Battery | ||
Battery Operating Time | ≥5h (25°C, with Hotspot Off) | ||
Type-C Power Supply | 5V DC, 2A Supports External Power Supply |
