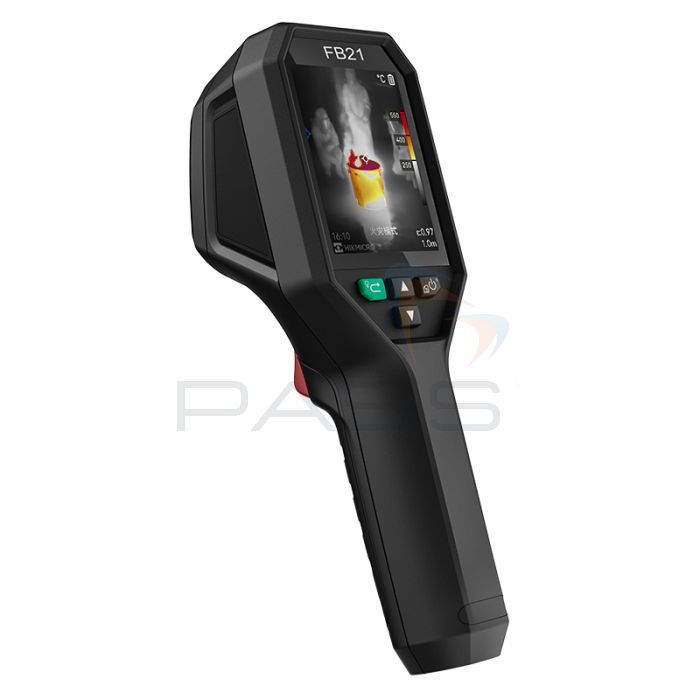

Hikmicro FB21 Firefighting Thermal Camera (25Hz)
The Hikmicro FB21 is a small robust thermal camera designed for firefighters. It provides clarity in conditions of complete darkness or heavy smoke ensuring the safety of firefighters and citizens.
The FB21 includes dual cameras, LED flashlights, user-friendly buttons, 8 color palettes, and a temperature capacity of up to 550°C (1022°F).
Key Features
- Thermal resolution: 256 x 192 (49 152 pixels)
- NETD : < 40 mK (@ 25 °C, F#=1.0)
- Temperature measurement range : -20°C to 550°C (-4°F to 1022°F)
- Up to 10 minutes for ambient temperature -10°C to 90°C (14°F to 194°F) ; Up to 2 minutes for ambient
- temperature -10°C to 115°C (14°F to 239°F)
- Measurement presets: Center spot, Hot spot, Cold spot, User Preset Point
- 25 Hz image frequency
- 2' LCD screen display
- Up to 6 hours of continuous running
- Support object details enhancement
What's Included?
- Hikmicro FB21 Thermal Camera
- Wrist Strap
- Power Supply
- International Use Plugs (UK/US/EU/AU/CN) for Power Supply
- USB 2.0 A to USB Type-C Cable
- Calibration Certificate
- Quick Start Guide
| Infrared Image | |
|---|---|
| IR Resolution | 256 x 192 (49,152 pixels) |
| NETD | < 40 mK (@ 25 °C, F#=1.0) |
| Image Frequency | 25 Hz |
| Detector Pitch | 12 µm |
| Spectral Range | 7.5 to 14 µm |
| Focal Length | 3.6 mm |
| F-number | F1.0 |
| Field of View (FOV) | 37.2° x 50.0° |
| Spatial Resolution (IFOV) | 3.3 mrad |
| Min. Focus Distance | 0.3 m (0.98 ft) |
| Focus Mode | Focus Free |
| Image Display | |
| Visual Camera | 1600 x 1200 (2 MP) |
| Display | 240 x 320 Resolution, 3.2' LCD Screen |
| Colour Alarm | Above alarm |
| Colour Palettes | Basic, Black Hot, White Hot, Fire Detection, Rescue, Hot Area, Cold Area, Building |
| Image Modes | Thermal/Visual/Fusion/PIP |
| Measurement and Analysis | |
| Object Temperature Range | -20°C to 550°C (-4°F to 1022°F) |
| Accuracy | Max. (± 2°C/3.6°F, ± 2%), for ambient temperature 15°C to 35°C (59°F to 95°F) and object temperature above 0°C (32°F) |
| Measurement Tools | Center Spot, Hot Spot, Cold Spot User-definable: 3 spots |
| Infrared Image | |
| Storage Media | Built-in 16 GB flash memory |
| Image Storage Capacity | Approx. 90,000 Images |
| General | |
| USB Interface | USB Type-C |
| LED Light | Yes |
| Battery Type | Rechargeable Li-ion battery |
| Battery Charging Time | Approx. 3 hours fully charged |
| Battery Operating Time | Approx. 6 hours |
| Protection Level | IP65 |
| Drop Test Height | 2 m (6.56 ft) |
| Working Temperature Range | Up to 10 minutes for ambient temperature -10°C to 90°C (14°F to 194°F) up to 2 minutes for ambient temperature -10°C to 115°C (14°F to 239°F) |
| Storage Temperature Range | -20°C to 60°C (-4°F to 140°F) |
| Relative Humidity | < 95% non-condensing |
| Weight | Approx. 380 g (0.84 lb) |
| Dimension | 221.7 x 73.5 x 123.8 mm (8.73 x 2.89 x 4.87 in) |
| Tripod Mounting | UNC ¼”-20 |
Reviews
Additional Information
| SKU | FB21 |
|---|---|
| Manufacturer Part Code | HM-TF52-3AQF-FB21 |
