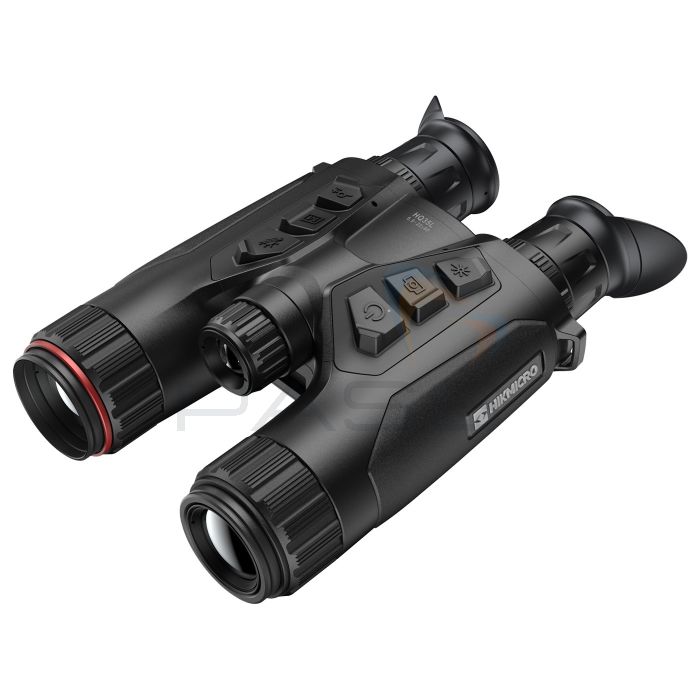

Hikmicro HQ35L Habrok 4K Multi-Spectrum Thermal Binocular, 35mm Lens
- < 20 mK
- 640 x 512 resolution
- Built-in Laser Rangefinder
- 35 mm, F1.0 lens
SKU
HM-HQ35L4K
MPN
HM-HQ35L4K
The Hikmicro Habrok Pro HQ35L 4K is an all-in-one binocular with a 4K UHD optical camera and an integrated 905nm Class 1 laser rangefinder with distance measurement up to 1,000m (±1m).
Its 640 × 512 VOx thermal sensor (<20mK NETD), 35mm F1.0 lens, and 50Hz refresh rate deliver images with a detection range of 1,800m. For daytime use, the 3840 × 2160 CMOS sensor with a 60mm F2.2 lens delivers vivid 4K visuals and 5.5–22x zoom.
Lightweight at 798g and built to IP67 standards, the Habrok Pro offers a 0.49" OLED display, recording and storage options with 64GB built-in memory, plus app connectivity. Powered by four 18650 rechargeable batteries for up to 8 hours, and supports USB-C charging.
HABROK 4K| HQ35L is here
Key Features
- 640 × 512 resolution @12 μm thermal detector
- High sensitivity thermal module NETD < 20 mK (@25°C, F#=1.0)
- 35 mm, F1.0 lens with thermal detection range up to 1800 m
- 3840 × 2160 4K ultra high-resolution CMOS detector
- 1920 × 1080 resolution 0.49-inch OLED display
- Two 850 nm & 940 nm replaceable IR illuminators and a Laser Rangefinder of 1000 m distance
- 8 h+ continuous operation time with replaceable battery
- 798 g lightweight, with a compact and ergonomic design
- All-in-One Design Simplifies the Way You Hunt for Full Days, Especially from Twilight to Night
- Full Colour 4K UHD Brings Vivid Images Even at Twilight
- 5.5-22X60 Covers Your Various Observation Needs
- Hassle-Free Viewing with Image Stabilization Algorithm
- Built-in IR Emitter Brings Superior Clarity in B/W in Darkness
- Quick Scan and Search, Effective Recognition with Thermal Technology
- Built-in Laser Rangefinder for Accurate Distance Measurement
- Digitalize Your Hunting Experience
- Highlights Capturing in Local Album and APP
- Unlocks the Full Potential by Connecting to SIGHT APP
- Long Operation Time, Auto Screen-Off, Enough for A Full Day Hunting
- Classic Style with Innovative Designs Builds up an Exceptional Viewing Experience
- A Comfortable and Effortless Observation
- Intuitive And Precise Focus
- for Both Thermal And Digital Viewing
- Picture-in-picture mode
- IP67 Waterproof rated
- Zoom Pro Algorithm
- Compact, Lightweight And Robust
What's Included?
- 4K Multi-Spectrum Thermal Binocular
- Neck strap
- Type-C cable
- Tripod adaptor
- Four batteries
- Replaceable IR illuminator (850mm)
- Quick Start Guide
- Lint-free cloth
- Battery charger
- Binocular harness
HIKMICRO HABROK 4K| Quick Glance
Technical Information
Specification
| Image Sensor | VOx Uncooled Focal Plane Arrays |
|---|---|
| Max. Resolution | 640 x 512 |
| Frame Rate | 50Hz |
| Pixel Interval | 12μm |
| Response Waveband | 8μm to 14μm |
| NETD | Less than 20 mK (@25°C),F#=1.0 |
| Lens (Focal Length) | 35mm, F1.0 |
| Focus Mode | Focus Ring |
| Detection Range | 1800m |
| Min. Focusing Distance | 3.5m |
| Magnification | 3.0x-22.0x (7.3x) |
| Field of View(H x V), Degrees / m @100m | 12.5°x10.1°/ 22.0mx17.6m |
| Image Sensor | 1/1.8'' Progressive Scan CMOS |
| Max. Resolution | 3840 x 2160 |
| Focal Length | 60mm, F2.2 |
| Min. Working Distance | 3m |
| Focus Mode | Focus Ring |
| Magnification | 5.5x - 22.0x (4x) |
| Field of View (H x V), Degrees/m @100 m | 7.3° x 4.1° / 12.6m x 7.2m |
| Smart IR | Yes |
| IR Illuminator Wavelength | 940nm (default) and 850nm (replaceable) |
| Viewing Range at Night | 400m |
| Replaceable IR Illuminator | Yes |
| Display | 0.49 inch, OLED, 1920 x1080 |
| Palettes | Thermal: Black Hot, White Hot, Red Hot, Fusion; Optical: Day, Night, Auto |
| FFC (Flat Field Correction) Mode | Auto, Manual, External Correction |
| Exit Pupil | 8mm |
| Eye Relief | 15mm |
| Diopter (Range) | -5D~+3D |
| Brightness Adjustment | Yes |
| Tone Adjustment | Cold, warm |
| Contrast Adjustment | Yes |
| Zoom Pro | Yes |
| Record Video | Yes |
| Capture Snapshot | Yes |
| Audio Recording | Yes |
| Standby Mode | Yes |
| Storage | Built-in EMMC (64 GB) |
| PIP | Yes |
| Hotspot | Yes |
| Hot Track | Yes |
| Digital Magnetic Compass | Yes |
| GPS | Yes |
| Local Album | Yes |
| Battery Type | Replaceable and Rechargeable Li-ion 18650 Battery |
| Battery Operating Time | ≥8h (25 °C, with hotspot off) |
| Type-C Power Supply | 5V DC, 2 A Support External Power Supply, Support Direct Charging |
| Protection Level | IP67 |
| Dimension | 138.1 mm x 68.5 mm x 222.4 mm (5.44" x 2.7" x 8.75") |
| Weight | 798g without battery |
| Working Temperature | -30℃ ~ +55℃ |
| Interpupillary Adjustment Range | 60 mm to 74 mm |
| Mounting Adapter | 1/4“-20-UNC |
| Safety Class for Laser | Class 1 |
| Wavelength | 905nm |
| Max. Measuring Range | 1000m |
| Measurement Accuracy | ±1m |
| Min. Measuring Range | 10m |
Document Downloads
Hikmicro HQ35L Habrok 4K Multi-Spectrum Thermal Binocular Datasheet
Hikmicro Habrok 4K Multi-Spectrum Thermal Binocular Quick Start Guide (640 Version)
Hikmicro Habrok 4K Multi-Spectrum Thermal Binocular User Manual (640 Version)
Additional Information
SKU
HM-HQ35L4K
Manufacturer Part Code
HM-HQ35L4K
