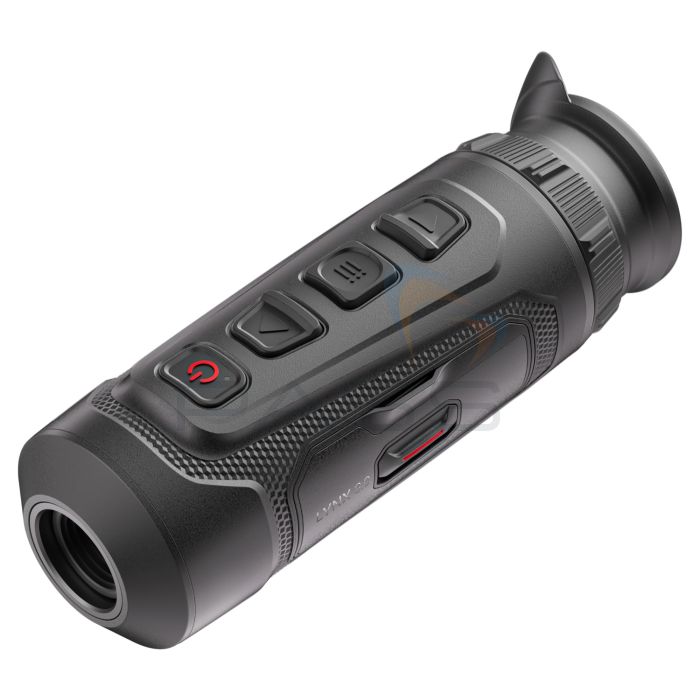

Hikmicro Lynx 3.0 LE10 Handheld Thermal Monocular (25Hz)
- Powers up in just 2 seconds
- Shutterless Image System (HSIS)
- 0.39-inch AMOLED display
- 1024 x 768 resolution
SKU
HM-LE10-3.0
MPN
HM-LE103.0
The Hikmicro Lynx 3.0 LE10 features exceptional thermal sensitivity, uninterruptedly capturing every detail with shutterless technology. It has a 256x192 thermal sensor, a 9.7mm F1.0 lens, a 1.4x base magnification, an 18° field of view, and a 500m detection range.
The Lynx 3.0 LE10also has a 0.39" AMOLED display, a two-second start-up time, replaceable batteries, and fits snuggly into your pocket. It is also compatible with the Hikmicro Sight App.
HIKMICRO LYNX 3.0| Best in Class
Key Features
- High-sensitivity thermal module with NETD < 20 mK
- 9.7 mm, F1.0 lens with thermal detection range up to 500 m
- AI-powered Image Pro 3.0
- Powers up in just 2 seconds
- Hikmicro Shutterless Image System (HSIS)
- 0.39-inch 1024 x 768 resolution AMOLED display
- Clear, low-light imaging
- Quick battery swaps
- 24mm shorter than previous models
- Replaceable and rechargeable 18650 battery provides up to 5.5 hours of continuous operation at -20℃
- Lightweight design at 291.5g, with a pocket-sized build
- View, save, and share thermal images directly from your smartphone via the Hikmicro Sight App
What's Included?
- LE10 3.0 Thermal Monocular
- Battery Charger
- Battery
- Lint-Free Cloth
- Type-C Cable
- Quick Start Guide
£332.78
£399.34 inc vat
Only 1 in Stock:
Available Next Working Day*
60 Day Returns
Technical Information
Specification
| Thermal Module | |
|---|---|
| Image Sensor | VOx Uncooled Focal Plane Arrays |
| Max. Resolution | 256 x 192 |
| Frame Rate | 50 Hz |
| Pixel Interval | 12 μm |
| Response Waveband | 8 μm to 14 μm |
| NETD | Less than 20 mK (@25°C), F#=1.0 |
| Lens (Focal Length) | 9.7 mm, F1.0 |
| Focus Mode | Focus Free |
| Min. Focusing Distance | 3.4 m |
| Magnification | 1.4 x - 11.2 x (8 x) |
| Field of View(H x V), Degrees / m @100 m | 18.0° x 13.6°/31.7 m x 23.8m |
| Detection Range | 500 m |
| Image Display | |
| Display | 1024 x 768, 0.39 inch, AMOLED |
| Contrast Adjustment | Yes |
| Brightness Adjustment | Yes |
| Palettes | Black Hot, White Hot, Red Hot, Fusion, Red Monochrome, Green Monochrome |
| Exit Pupil | 6 mm |
| Eye Relief | 20 mm |
| Diopter (Range) | -5 D to +3 D |
| Tone Adjustment | Cold, warm |
| Zoom Pro | Yes |
| HSIS (HIKMICRO Shutterless Image System) | Yes |
| Image Pro 3.0 | Yes |
| Sync Pro | Yes |
| System | |
| Storage | Built-in EMMC (64GB) |
| Record Video | Yes |
| Capture Snapshot | Yes |
| Local Album | Yes |
| Standby Mode | Yes |
| PIP | Yes |
| Hotspot | 2.4/5 G WiFi Waveband |
| Hot Track | Yes |
| Distance Measurement | Yes |
| Audio Recording | Yes |
| Power Supply | |
| Battery Type | Replaceable and rechargeable 18650 battery |
| Type-C Power Supply | 5 V DC, 2 A Supports External Power Supply, Support Direct Charging |
| General | |
| Work Temperature/Humidity | From -30°C to 45°C (-22°F to 113°F) Humidity: 90% or Less |
| Protection Level | IP67 |
Document Downloads
Hikmicro Lynx 3.0 LE10 Handheld Thermal Monocular Datasheet
Hikmicro Lynx 3.0 Handheld Thermal Monocular User Manual
Hikmicro Lynx 3.0 Handheld Thermal Monocular Quick Start Guide
